Description
xExcelon, built big
Kenwood's Excelon badge is their standard for quality sound and excellent performance, and this Kenwood Excelon XR-1801P component speaker system with a substantial 7" woofer delivers the goods. Specially crafted for playing high-resolution audio files, these speakers use premium materials and design to enhance the audio signal from a high-performance amplifier and receiver. What that means for you is a life-like listening experience, free from distortion.
Premium components
The 7" glass-fiber woofer cone delivers full, hearty sound, and its specially designed surround ensures endurance, play after play. The 1-3/16" hard dome titanium tweeter brings striking detail to your music, upholding the artist's intention from song to song. If you love high-res music, these tweeters reproduce frequencies up to 40,000 Hz, delivering the extended detail and strong imaging of your high-res FLAC or DSD files.
Kenwood also includes versatile mounting gear for a variety of installation of challenges.
Bring on the power
These exceptional speakers will handle up to 120 watts RMS, so you'll maximize their performance when you power them with a nice amp. And the included external crossovers let you amplify the woofers and tweeters separately for an even stronger sound.
Installation note: You'll need a pair of our universal backstraps to install the tweeters in the factory locations.
Product highlights:

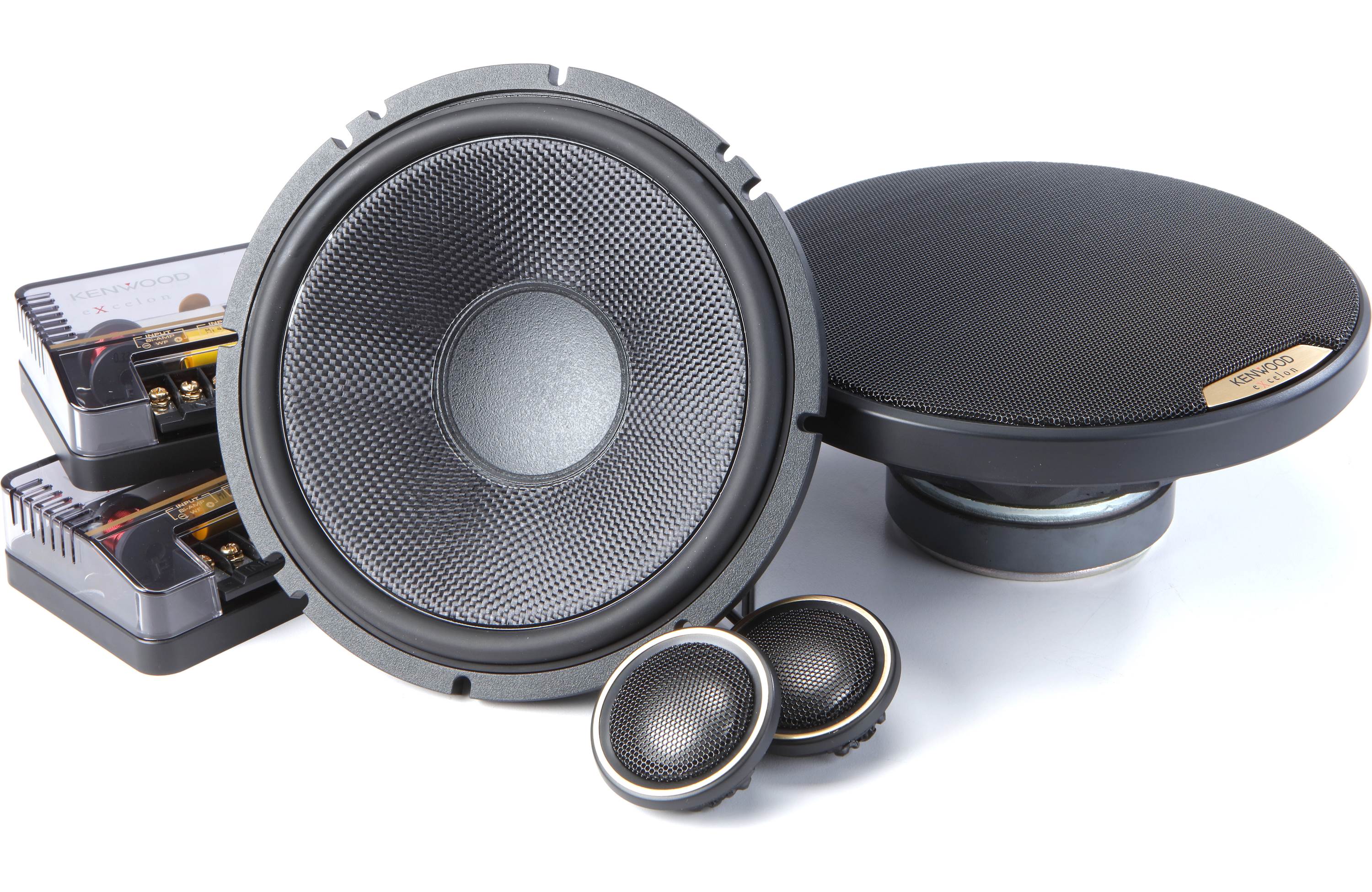

- component speaker system includes 2 woofers, 2 tweeters, and 2 crossovers
- 7" glass fiber woofer with rubber surround
- 1-3/16" titanium hard dome tweeter with neodymium magnet
- includes flush- and surface-mount tweeter hardware
- external crossover with two-level tweeter attenuation and bi-amp capability
- handles up to 120 watts RMS (330 watts peak power)
- frequency response: 52-35,000 Hz
- sensitivity: 87 dB
- impedance: 3 ohms
- woofer top-mount depth: 2-1/2"
- grilles included
- warranty: 2 years
- MFR # XR-1801P
- Item # 113XR1801P
What's in the box:
Kenwood Excelon XR-1801P owner's manual
- Two Woofers
- 2 Tweeters (each has an integral flush mount frame and a 5" Length of wire attached)
- 2 Woofer grilles
- 2 Grille frames
- 2 Tweeter flush mount retaining clips
- 2 Angled surface mounting housings
- Two 6x9 Adapter brackets
- 2 Multi-purpose woofer mounting brackets
- 2 Crossovers
- Twelve 1" Screws
- Eight 3/4" Screws
- Four 5/8" Screws
- Two M4x6mm Machine screws
- 16 Speed clips
- Grille putty
- Instruction manual
Features & specs
| General | ||
|---|---|---|
| Speaker Size | 7 | |
| Design | 2-way | |
| Tweeter Design | 1-3/16" Dome | |
| Impedance (Ohms) | 3 | |
| Tweeter Composition | Titanium | |
| Woofer Composition | Glass Fiber | |
| Woofer Surround | Rubber | |
| Parts Warranty | 2 Years | |
| Labor Warranty | 2 Years | |
| Specifications | ||
| Sensitivity (1W at 1 meter) | 87 | |
| Sensitivity at 2.83 volts | N/A | |
| Frequency Response | 52 - 35k Hz | |
| Minimum RMS Wattage | --- | |
| Maximum RMS Wattage | 120 | |
| Peak Power Handling (Watts) | 330 | |
| Top-mount Depth (Inches) | 2 1/2 | |
| Bottom-mount Depth (Inches) | 2 3/4 | |
| Cutout Diameter or Length (inches) | 6 1/16 | |
| Mounting Height (Inches) | 0.433 | |
| Frame Width | 6.927 | |
| Frame Length | 6.927 | |
The Kenwood Excelon XR-1801P replaces these items:
Product Research
Features
Custom Brackets: Using the included brackets, the Kenwood XR-1801P woofers become factory replacement speakers, compatible with several Dodge, Ford, GM, and Toyota vehicles. One bracket adapts to a 6x9 opening, the other is a multi-purpose bracket and is scored for trimming to fit several applications. Please enter your vehicle information to confirm fit.
Crossover: Each crossover has screw terminal inputs and outputs that will accommodate bare wire or spade connectors up to 0.315" wide. (Speaker wire is not included with the system.) The output level of the tweeters is adjustable; choose 0 dB or -3 dB. The crossovers also have bi-amp inputs, one input for the tweeter and one for the woofer. When bi-amping the speakers, the input jumpers need to be removed. Using four amplifier channels to bi-amp the speakers typically improves the dynamic range and presents an easier load for the amp(s) to drive. The crossover slope is 12 dB/octave, high-pass and low-pass.
Crossover Dimensions:
- Width: 5.275"
- Height: 1.3"
- Depth: 3.275"
Tweeter Mounting Options: The tweeters can be flush mounted using the supplied hardware, or surface mounted using the included housings. Once mounted the tweeters have these dimensions:
| Flush Mount | Angled Surface Mount | |
|---|---|---|
| Mounting Depth | 0.8" | 0.54" (screw depth) |
| Mounting Height | 0.35" | 1.98" |
| Cutout Diameter | 1.788" | N/A |
| Frame Diameter | 2.082" | N/A |
| Frame Length | N/A | 2.18" |
| Frame Width | N/A | 2.08" |
Warranty Note: Although the information included with these speakers indicates a 1-year warranty, they are actually covered by the Kenwood eXcelon 2-year warranty.
