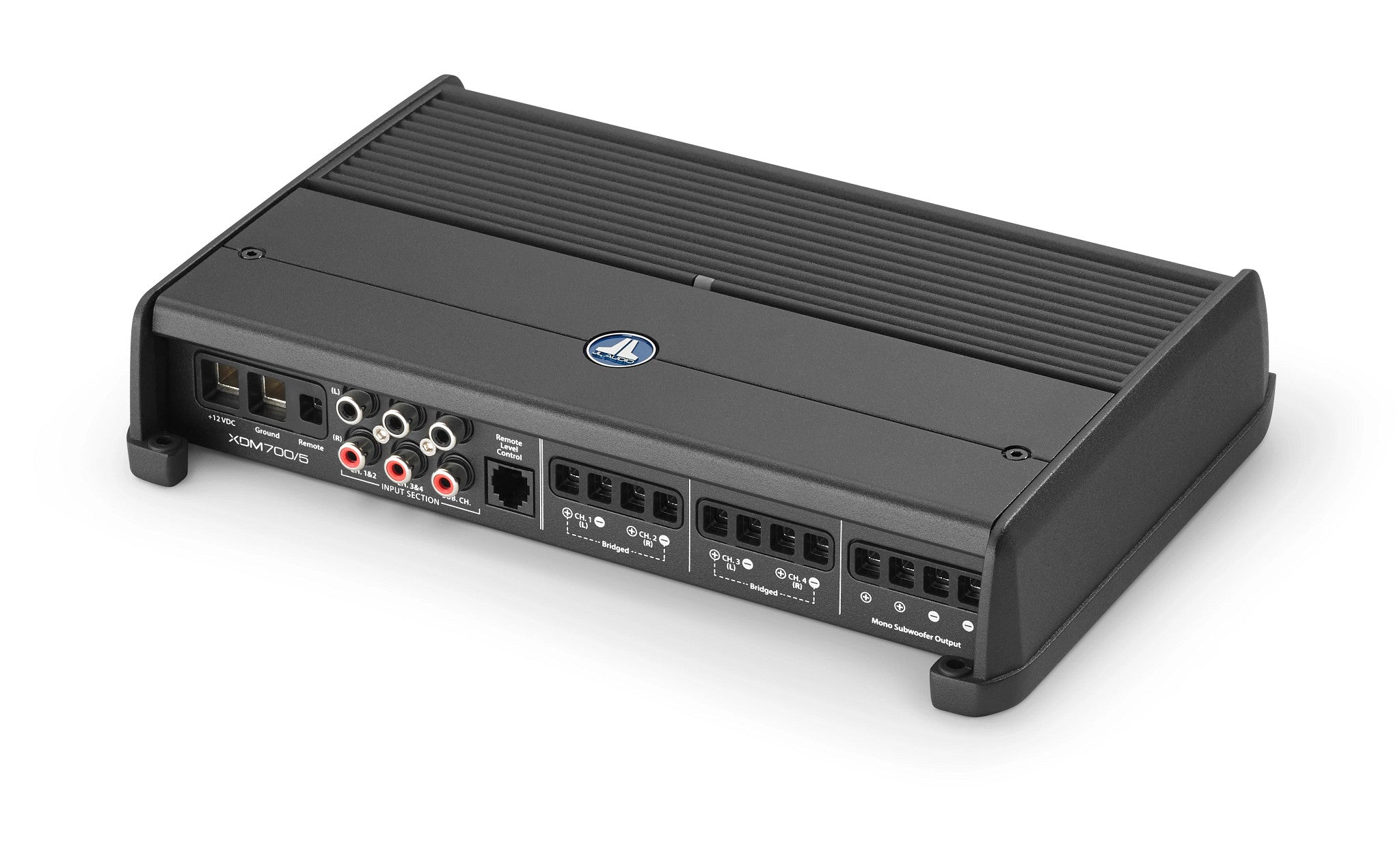

5-Channel Class D Car/Marine System Amplifier, 75 W x 4 @ 4 Ω + 300 W x 1 @ 2 Ω - 14.4V
 Â
The XDM700/5 is ideal for a complete audiophile-grade, subwoofer + four satellite system, and fits comfortably in just about any vehicle or vessel. With this incredible little amplifier, you can drive two pairs of quality component speaker systems with plenty of clean power (75 W x 4 @ 4 Ω), while also generating a solid 300 W of power for a subwoofer system. The technology that makes this much power possible in such a small chassis is our high-speed NexD™ switching amplifier design.
Suitable for car or boat installations, the XDM700/5 is built with marine-grade materials and features an exclusive, dual-mode input filter for noise-free performance in boats or cars. Automatic turn-on capability (via signal sensing or DC-offset sensing) is also onboard for easy factory system upgrades.
The XDM700/5 includes a 12 dB / octave high-pass filter for one main channel pair, a 12 dB octave high-pass or bandpass filter for the other main channel pair, plus a variable slope low-pass filter for its subwoofer channel. All three filters offer continuously variable cutoff frequency selection from 50-500 Hz. This amplifier's filters can also be configured as a true 3-way crossover, with a low-pass filter for the subwoofer channel, a bandpass filter on Ch. 3 & 4, and a high-pass filter on Ch. 1 & 2. An 'x10' multiplier switch on the Ch. 1 & 2 high-pass filter allows its cutoff frequency to be adjusted from 50-500 Hz or 500-5000 Hz. With the addition of an optional HD-RLC or MHD-RLC (water-resistant) remote level controller (each sold separately), you have the ability to adjust the level of all amplifier channels or just the subwoofer channel directly from the driver's seat or helm.
Finished in a sleek, black powder-coat, all controls are protected beneath a gasketed, removable top cover for easy access.
Â
Main Channels @ 4 Ω | 75 W RMS x 4 |
Main Channels @ 2 Ω | 100 W RMS x 4 |
Main Channels - Bridged @ 4Ω | 200 W RMS x 2 |
Subwoofer Channel @ 4 Ω | 180 W RMS x 1 |
Subwoofer Channel @ 3 Ω | 240 W RMS x 1 |
Subwoofer Channel @ 2 Ω | 300 W RMS x 1 |
Subwoofer Channel @ 1.5 Ω | N/A |
Main Channels @ 4 Ω | 60 W RMS x 4 |
Main Channels @ 2 Ω | 90 W RMS x 4 |
Main Channels - Bridged @ 4Ω | 180 W RMS x 2 |
Subwoofer Channel @ 4 Ω | 180 W RMS x 1 |
Subwoofer Channel @ 3 Ω | 240 W RMS x 1 |
Subwoofer Channel @ 2 Ω | 300 W RMS x 1 |
Subwoofer Channel @ 1.5 Ω | N/A |
Frequency Response (Main Channels) | 12 Hz - 22 kHz (+0, -1dB) |
Frequency Response (Subwoofer Channel) | 10 Hz - 1 kHz (+0, -1dB) |
S/N Ratio, referred to highest rated power (Main Channels) | >104 dB below rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth) |
S/N Ratio, referred to 1 W | >84 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth) |
Damping Factor @ 4 Ω | >150 / 50 Hz |
Damping Factor @ 2 Ω | >75 / 50 Hz |
THD+N @ Rated Power (Main Channels) | <1% @ 2 Ω per Ch. |
THD+N @ Rated Power (Subwoofer Channels) | <1% @ 2 Ω per Ch. |
Input Voltage Range @ RCA Inputs | 200 mV - 4 V RMS |
Min.Copper Power / Ground Wire Gauge | 4 AWG wire |
Fuse Rating | 60 A (AFS, AGU or MaxiFuseâ„¢) |
Filter Mode(s): Channels 1 & 2 (front) | High-Pass only |
Filter Slope(s): Channels 1 & 2 (front) | 12 dB/octave |
Filter Frequency Range: Channels 1 & 2 (front) | 50 Hz - 5 kHz |
Filter Mode(s): Channels 3 & 4 (rear) | High-Pass or Bandpass |
Filter Slope(s): Channels 3 & 4 (rear) | 12 dB/octave |
Filter Frequency Range: Channels 3 & 4 | 50 Hz - 500 Hz |
Filter Mode(s): Subwoofer Channel | Low-Pass only |
Filter Slope(s): Subwoofer Channel | 12/24 dB/octave |
Filter Frequency Range: Subwoofer Channel | 50 Hz - 500 Hz |
Detented, Calibrated Filter Freq. Potentiometers | Yes |
Filter Defeat Function | Yes |
Infrasonic Filter: Subwoofer Channel | none |
Remote Level Control | Optional HD-RLC or MHD-RLC (water-resistant) |
Remote Level Modes | Sub Ch. or All Channels |
Channel Input Mode Switch | Yes (2/4/6 ch.) |
Pass-Through Preamp Output | None |
Source Channel Selection for PreOuts | N/A |
Height (H) | 2.05 in / 52 mm |
Width (W) | 10.23 in / 260 mm |
Depth (D) | 7.09 in / 180 mm |
Net Weight | 6.15 lb / 2.79 kg |
Summary:
NexDâ„¢ amplifier technologies produce exceptional audio quality, unsurpassed total efficiency and high power from very compact amplifier designs.
Detailed Information:
Beginning with the original 'Slash' subwoofer amplifiers, JL Audio has been at the forefront of Class D amplifier design. Our NexDâ„¢ switching technology stems from our Class D expertise to deliver outstanding fidelity and efficiency, leading to compact amplifiers that deliver high power and exceptional value.
Let's get a little nerdy... A traditional PWM switching amp design uses a fixed switching frequency and varies the pulse width based solely on the audio input signal to the pulse modulator. This basic approach assumes some ideal conditions, like a rock-steady power supply, that do not necessarily occur in a real, in-car installation. Power supply sag with signal causes distortion at all power levels with these designs, even well below clipping. The cure for this is feedback (a corrective signal sent back to the input side), but this becomes impractical as the audio frequency increases, making it a good solution for band-limited (subwoofer) amps, but not for full-range amplifiers.
Taking the above into account when designing the NexDâ„¢ subwoofer amplifiers, we have taken the simple fixed PWM approach and enhanced it with a very high switching frequency: 240 kHz, which is about 4x higher than most Class D subwoofer amplifiers. This pushes the amplifier's bandwidth to at least 500 Hz with minimal distortion and improves efficiency, while keeping typically bulky circuity more compact. Your subwoofers will reward you with tight, rock-solid bass performance.
For the full-range NexDâ„¢ amplifiers and channels we applied a variable, ultra-high speed version of the NexDâ„¢ technology (switching at well over 400 kHz). In these designs, a self-oscillating modulator with 'feed-forward' sends information about the instantaneous power supply voltage to the modulator, combining this with the input signal to cancel out any distortion due to supply voltage fluctuation. This reduces distortion prior to applying feedback, simplifying the overall feedback loop design.
The bottom line is simply great audio: clean, powerful and reliable.
