JL Audio XD-PCS4-2B

Premium 4 AWG 12V Power Connection System for Two Amplifiers

Everything* you need to make secure, high-integrity power connections to two amplifiers with combined fuse ratings up to 100A. This kit features our high-capacity ANL Master Fuse Block, a Maxi®-fused distribution block and our bolt-on master ground lug, for maximum performance.

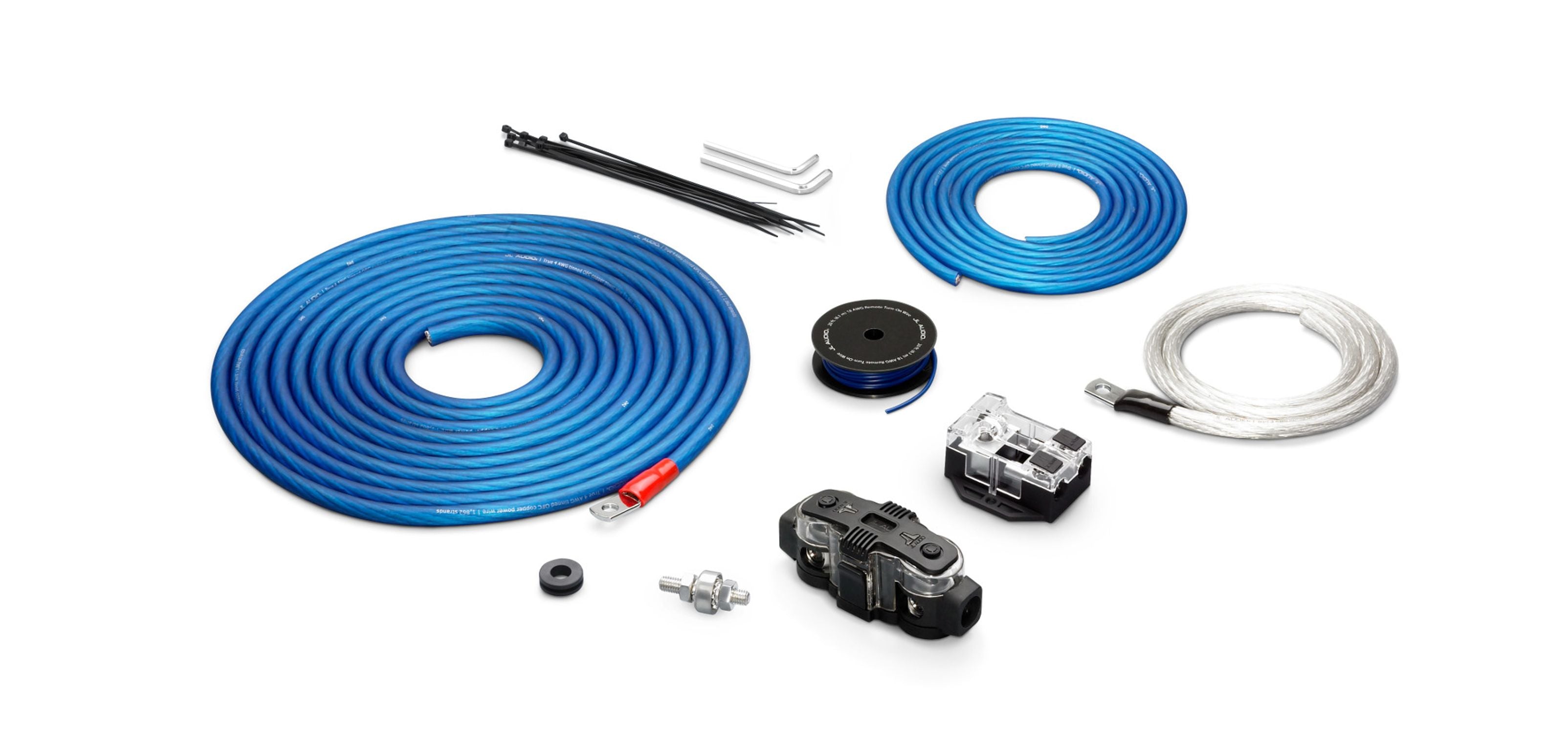

What's in the kit?

• XD-MFBU-ANL Fuse Holder with 100A ANL Blade Fuse
• XD-FDBU-2 Fused Distribution Block*
• 20 ft. (6.1 m) Blue 4 AWG Premium Power Wire, terminated with ring
• 8 ft. (2.4 m) Blue 8 AWG Premium Power Wire
• 8 ft. (2.4 m) Clear 8 AWG Premium Ground Wire, terminated with a ring on each end
• 20 ft. (6.1. m) Blue Remote Turn-On Lead Wire
• Bolt-On Master Ground Lug
• Rubber Firewall Grommet
• Nylon Wire Ties

Bonus: Additional 1-year warranty on JL Audio amplifier when installed by authorized dealer with this Power Connection System!

The supplied 100A ANL blade fuse installs into the Master Fuse Block near the battery. It is appropriate to protect the main power wire in the event of a short circuit.

*You will also need to purchase the appropriate Maxi® fuses for installation into the Fused Distribution Block. These need to be selected based on the specific fuse rating of the amplifiers you are installing and, for that reason, are not included with this kit.

OmniSertâ„¢ (Patent Pending)

Summary:
This unique block terminal design results in better mechanical and electrical contact between the wire and the block.

Detailed Information:
Conventional captured wire block designs use a narrow screw that only contacts the center of the inserted wire. When tightened, the screw digs a depression into the wire and only applies full pressure in a relatively small contact patch. Additionally, when smaller wires are inserted into the block, the screw does a poor job of gripping the smaller wire, increasing the possibility of an unreliable connection.

JL Audio's patent-pending OmniSertâ„¢ technology uses a large diameter screw with a domed contact area that precisely matches the contour of the wire bore. This oversized domed surface evenly applies pressure to the wire over a larger contact area in the body of the block. The design also does an excellent job of capturing smaller wires in the block, eliminating the need for ferrules or sleeves to achieve proper mechanical integrity.



USA Limited Warranty:  Two (2) years from the original date of purchaseWarranty Details
