Features & specs
| General | ||
|---|---|---|
| Enclosure Type | Sealed | |
| Finish Material | ABS | |
| Grille | ABS | |
| Connector Type | 10-Pin Molex | |
| Quick-disconnect Plug | Yes | |
| Bi-amp Inputs | No | |
| Woofer Size (inches) | 9x5.25 | |
| Woofer Material | Polypropylene, urethane | |
| Passive Radiator | --- | |
| Width | 11-7/8" | |
| Height | 4" | |
| Depth | 7-7/8" | |
| Parts Warranty | 1 Year | |
| Labor Warranty | 1 Year | |
| Specifications | ||
| Frequency Response | 20-100 | |
| Amplifier Power (RMS) | 100 watts | |
| Maximum Wattage | 250 watts | |
| Sensitivity | 100 dB | |
| Impedance | --- | |
| Second Voice Coil Impedance | --- | |
| Crossover Point | --- | |
Product Research
Features

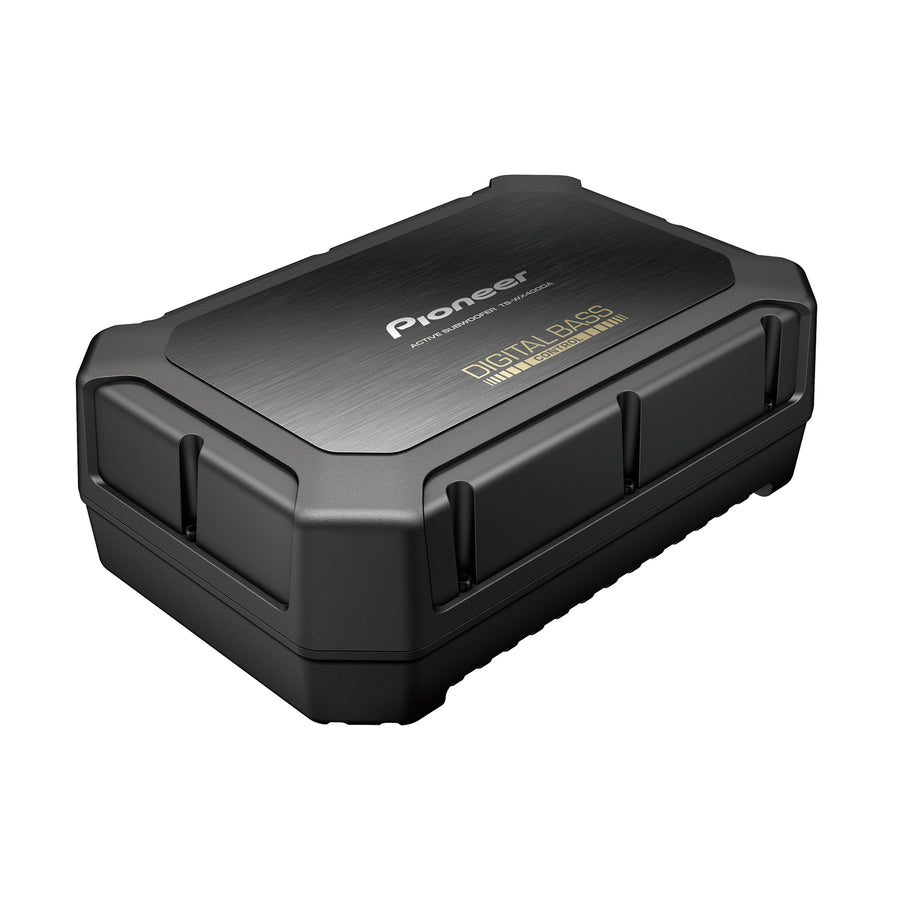

Overview: The Pioneer TS-WX400DA is a uniquely compact powered subwoofer designed to be installed in a wide range of applications, including under seats and in small spaces. Its rectangle, down-firing woofer can provide deep, rich bass without taking up a lot of vehicle space.
Class-D Amp: The TS-WX400DA features a Class-D amplifier, giving it high output power while consuming less power than conventional amp designs. This also helps keep the amp running cooler and eliminates the need for large heat sinks. The powered subwoofer generates 100 watts of RMS power, 250 watts peak.
Bass Modes: Two selectable Bass Modes are available for changing the type of bass output. A selector switch on the provided wired remote control allows it to easily be changed while driving, with two Bass Modes available:
- Deep Mode: This mode provides rich, deep bass suitable for Classic Rock, Jazz, Country Music, etc.
- Dynamic Mode: Emphasizes bass frequencies for strong dynamic bass suitable for Hip-Hop, EDM, and Rock.
Wired Remote Control: A wired remote control is provided for making adjustments to the bass from the driver's seat. Controls include:
- Gain (dial): Allows the input signal level to be adjusted.
- Frequency (dial): Allows you to change the frequency cutoff value, with a range from 50Hz to 125Hz.
- Phase (switch): Allows the speaker phase to be changed. Choices include 0˚ and 180˚.
- Bass Mode (switch): Allows selection of either Deep Mode or Dynamic Mode.
Inputs & Controls: All wiring for the TS-WX400DA is done through a single10-pin Molex harness. A 16.5' power wire, with inline fuse, and remote turn-on lead are included for running to the vehicle battery and headunit, along with a shorter ground wire. The input signal can be run either through a pair of RCA jacks or through 2 pairs of speaker wire, for a high-level input. An RJ-45 socket is provided for connecting the included wired remote control. Switches on the powered sub include:
- Input Level: Allows selection of either RCA or SP Line as the input signal type.
-
Input Gain:
- High: Used when running an RCA pre-amp signal that's ≥ 4V.
- Nor: Used when running an RCA signal that's less than 4V or when using the speaker-level inputs.
Mounting: The TS-WX400DA includes two mounting brackets for securing the subwoofer to a floor-board, trunk, or seat-back.
Specifications:
- Power: 100 Watts RMS / 250 watts peak
- Driver Size: 9" x 5.25"
- Driver: Injection-molded polypropylene, urethane surround
- Frequency Response: 20Hz - 100Hz (Deep and Dynamic settings)
- Sensitivity: 100dB (Deep and Dynamic settings)
- Dimensions: Width - 11.875", Height - 4.0", Depth - 7.875"
