Features

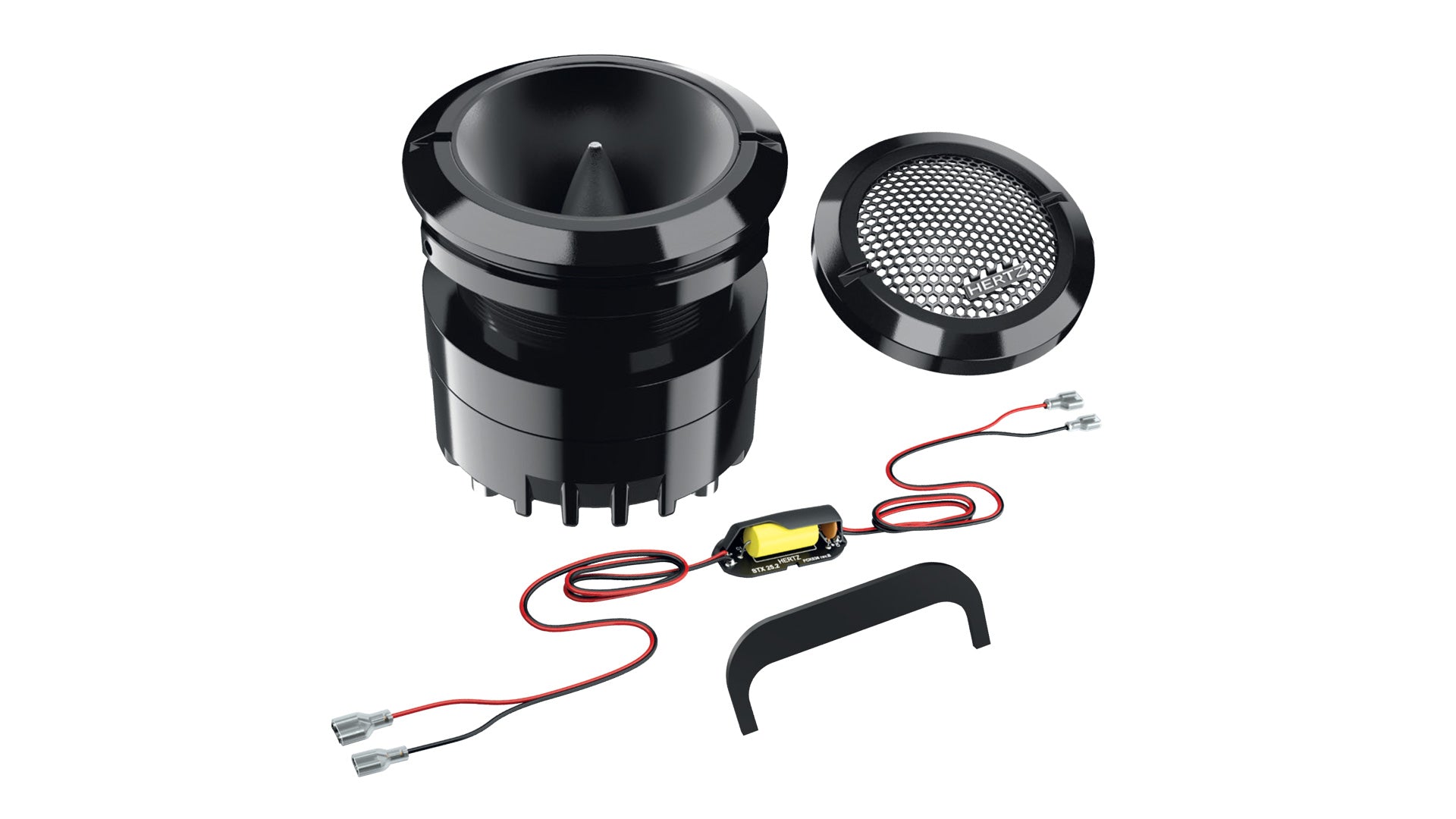

Crossover: The wire attached to the included in-line crossovers has quick-slides on both ends, to easily plug into the tweeters and Hertz SPL Show series midrange drivers.
Mounting: The ST 25 tweeters are designed to be flush mounted from the bottom, with the mounting surface sandwiched between the included threaded mounting collar or grille and threaded trim ring. The threaded shaft is approximately 1" tall, so the tweeter can be positioned within a range of depth/mounting height combinations. An optional threaded flange is available (301AFR25, sold separately) to top mount the tweeters.
Measurements:
- Required Cutout Diameter: 1.715" (compatible with 1¾" hole saw bit)
- Bottom Mounting Depth: 2.02"
-
Trim Ring:
- Diameter: 2.244"
- Height: 0.18"
-
Mounting Collar:
- Diameter: 2.246"
- Height: 0.19"
-
Grille:
- Diameter: 2.25"
- Height: 0.5"
