Features & specs
General | ||
---|---|---|
Woofer Size (inches) | 12 | |
Speakers Per Box | 2 | |
Woofer Material | Polypropylene | |
Enclosure Type | Ported | |
Color | Black | |
Pieces in System | 1 | |
Width (inches) | 35-3/4 | |
Height (inches) | 15-7/8 | |
Depth (inches) | 15-3/4 | |
Connector Type | Spring posts | |
Frequency Response | 29-300 Hz | |
Power Range (Watts RMS) | 1000 | |
Maximum Wattage | 2000 | |
Sensitivity | --- | |
Impedance | 2 ohms | |
Parts Warranty | 1 Year | |
Labor Warranty | 1 Year |
Product Research
Features

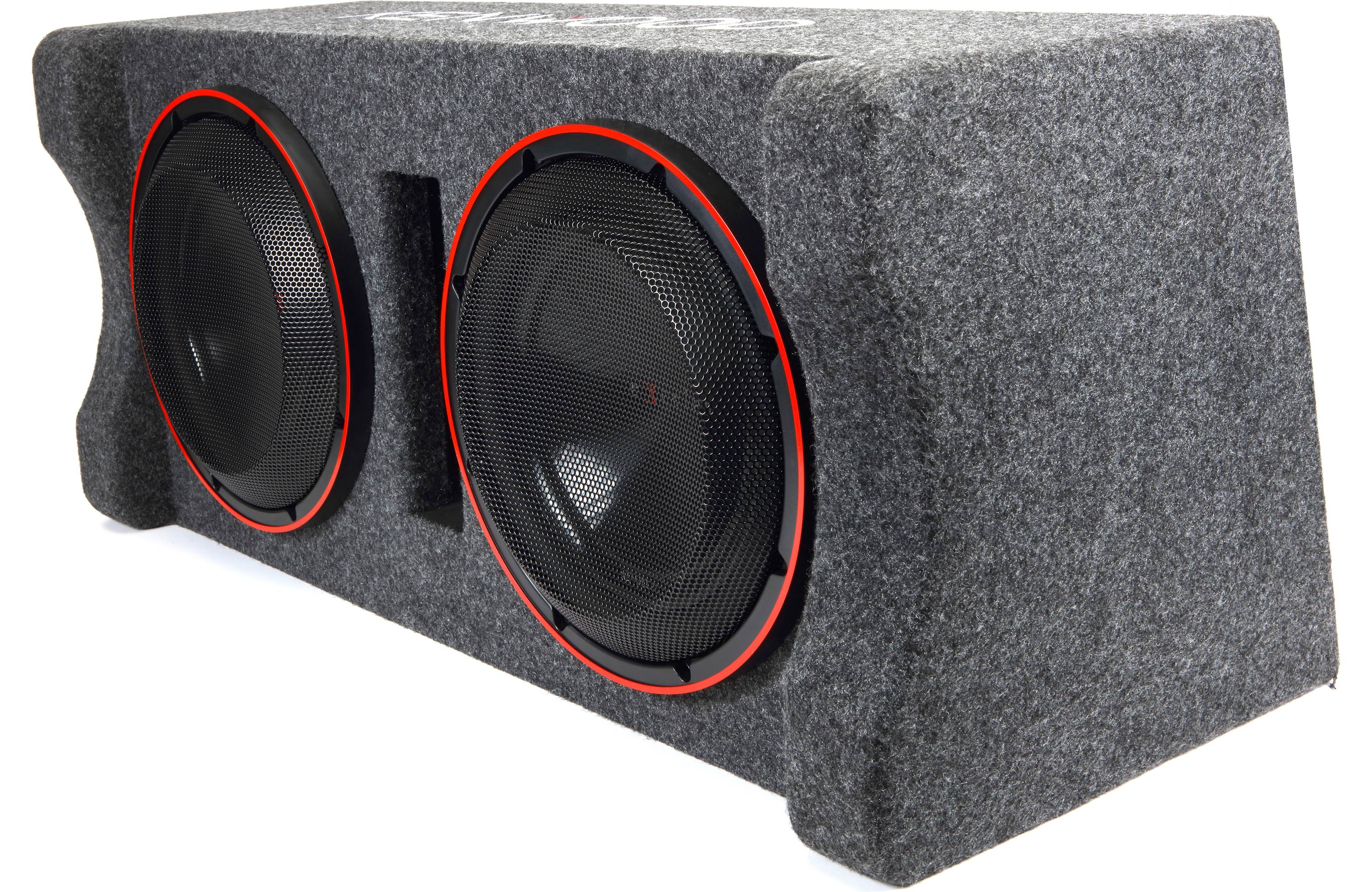

Driver: The Kenwood Excelon P-XW1221DHP ported subwoofer enclosure features 2 heavy-duty 12" drivers, internally wired for a 2Ω output, that can handle 1000W RMS with peak power up to 2000W. The injection-molded Polypropylene cones feature a dual area cap that provides the rigidity needed for high-power handing while delivering accurate bass. Other driver improvements include a computer-optimized spider, for increased mechanical durability and stress control, along with a robust thermal management system. This includes a closed yoke design with an aluminum bobbin for advanced airflow control and heat dispersion around the voice coil and spider. The 12" subwoofer drivers are protected with steel mesh grilles.
Enclosure: The P-XW1221DHP is constructed of 5/8" thick MDF (Medium Density Fiberboard) with a 3/4" thick baffle, providing outstanding strength and durability for maintaining tight accurate bass at high volumes.
- Slant Back Design: The enclosure's slant back design allows it to fit behind vehicle seats easier, and helps suppress standing waves from forming inside the enclosure.
- Multi-Position Mounting: The enclosure is designed so that it can be mounted in a forward, rearward, or down-firing orientation. Raised "legs" on the speaker side of the enclosure allow it to sit in a down-firing position. This ensures low frequency transmission without loss, while helping protect the two 12" drivers.
- Improved Port: The enclosure's port opening features rounded edges for reduced airflow resistance and less generated noise.
Connection: The P-XW1221DHP includes a single pair of nickel-plated spring-post connectors that can accept speaker wire up to 8AWG. The total output impedance at the connectors is 2Ω.
Specifications:
- Driver Size: 12" (x2)
- RMS Power: 1000W
- Peak Power: 2000W
- Impedance: 2Ω
- Frequency Response: 29-300Hz
