Features

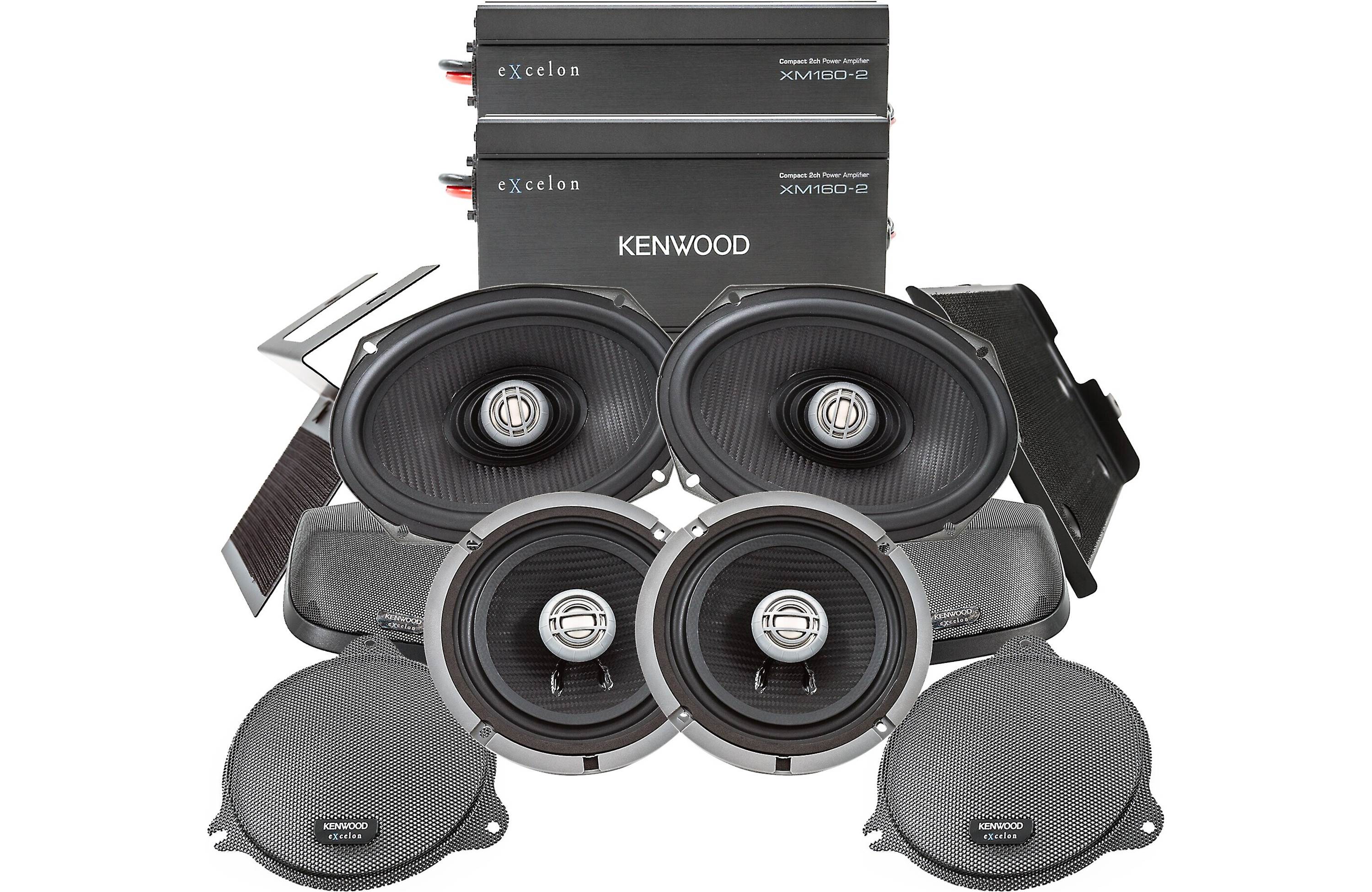

Compatibility: The Kenwood P-HD3FR Amplifier and Front & Rear Speaker package is designed specifically for installation in the following Harley-Davidson motorcycles:
| Make | Model | Year | Chassis |
|---|---|---|---|
| Harley-Davidson | Street Glide | 2014-up | FLHX |
| Limited Ultra | 2014-up | FLHTK | |
| Ultra Classic | 2014-up | FLHTCU | |
| Tri Glide Ultra | 2014-up | FLHTCUG | |
| Road Glide | 2015-up | FLTR | |
| Limited Road Glide Ultra | 2020-up | FLTRK | |
| Road Glide Ultra | 2016-up | FLTRU | |
| Electra Glide Standard Fairing (with factory radio installed) | 2018-up | FLHT |
Amplifiers
No Flashing Required: The two included Kenwood XM160-2 amplifiers are tuned for the best performance with a stock Harley-Davidson headunit, letting you install both amps without the need for flashing the factory radio.Power: The Kenwood XM160-2 amplifier can output 80W RMS (2Ω) x 2 channels.
Class D Design: The amplifier features a Class D design, which uses digital switching power supplies. The result is a more efficient amplifier, generating less heat than Class AB amps of equal power. The Class D design also allows the amplifier to be built on a small chassis, and installed where space is limited.
Signal Sensing: The amplifier has a signal-sensing turn-on circuit on the speaker level input. When a signal is detected on the speaker level inputs, the amplifier will automatically power on. When the signal is no longer detected, the amp will turn off. This allows you to install the amplifier without a remote turn-on lead.
Input Sensitivity Control: The XM160-2 features an Input Sensitivity control, letting you dial in the maximum headunit signal while keeping it below the distortion point.
Connections:
- Power & Ground: The amplifier features an attached 8" power & ground input harness consisting of 10-gauge wire terminated in a Molex plug. An additional 5' power & ground harness attaches to this and gets run to the vehicle battery. The amp's 8" power wire includes an inline 15A ATO fuse, and the 5' extension includes an additional inline 15A fuse for protection at the battery. The power and ground wires are terminated in 0.32" ring terminals.
- Speaker Level Input/Bypass: A 17" 8-pin harness provides the input channels, with connectors that plug directly into the factory radio output wiring. A 4-pin Bypass harness is attached, letting you jumper the input signal back out to additional amplifiers (sold separately) using the provided Input Link harness.
- Speaker Output: A 21" 4-pin output harness provides the connection to the Harley-Davidson factory front speaker wires.
Amplifier Mounting: Two amplifier mounting plates are provided with each amplifier, for Harley-Davidson Road Glide/Road Glide Ultra and Street Glide/Street Glide Ultra. Both brackets include pre-applied hook-and-loop fastener as well as on the amplifier, letting you easily attach/detach the amp to either mounting plate. The mounting plates use factory hardware for mounting.
Front Speakers
Front Speaker Integration: The Kenwood XM65F motorsports 6-1/2" speakers are designed for installation into select 2014-up Harley-Davidson Street Glide/Street Glide Ultra, Road Glide/Road Glide Ultra, and CVO Ultra motorcycles. The XM65F speakers mount into the factory front location using the factory mounting hardware and wiring. Replacement speaker grilles are provided.Construction: The XM65F speakers feature a 6-1/2" IMPP (Injection Molded Polypropylene) woofer cone and a coaxially-mounted 1" PEI (Poly-Ether-Imide) dome tweeter.
Rear Speakers
Saddlebag Speakers: The included Kenwood XM69R 6"x9" 2-way speakers are designed specifically for mounting into the hardshell saddlebag lids on select Harley-Davidson motorcycles. The XM69Rs feature IMPP (Injection-Molded Polypropylene) woofer cones with rubber surrounds and 1" PEI dome tweeters. The speakers feature a sealed design to prevent water ingress and include 2 pairs of silicon mounting gaskets. The 2-ohm speakers can handle up to 200 watts RMS (400W peak) and have a frequency response of 20Hz-25kHz.
Rear Speaker Installation
Saddlebag Installation Kit: The Kenwood CA-CUT14 6X9" Cut-In Lid Kit lets you install your 6x9" speakers into the hard saddlebag lids of select 2014-up Harley-Davidson motorcycles. The installation kit positions your speakers facing towards the rider for optimal sound projection. The CA-CUT14 minimizes bag space loss and features built-in water drain channels.
Note: Installation of the Kenwood CA-CUT14 kit will require modifications to your factory hard-shell saddlebags.
