Description

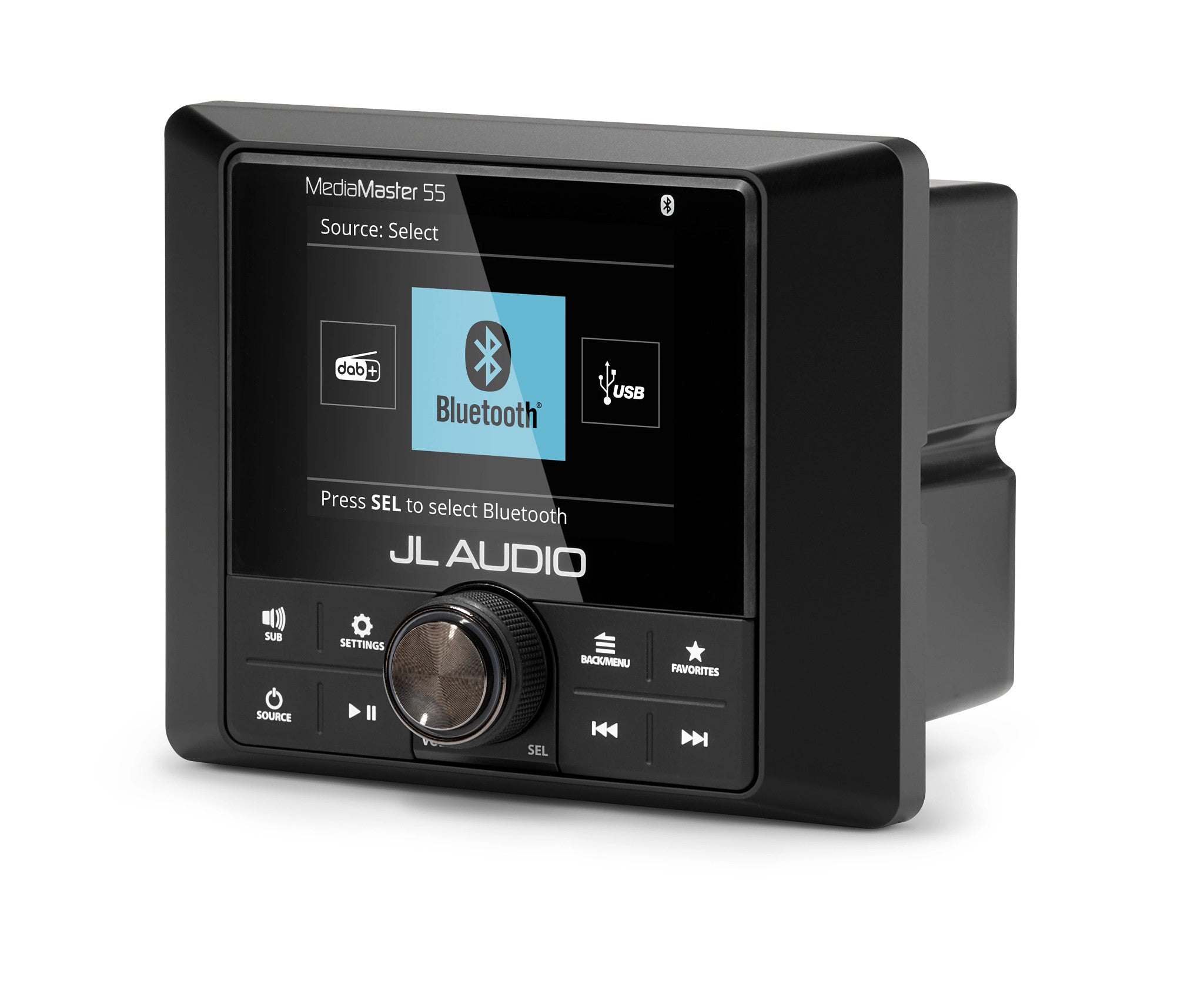

xMediaMaster® 55 from JL Audio® – Premium, Compact Marine Source Unit with Full-color LCD
Â
MediaMaster 55 is a premium, compact marine source unit engineered to deliver high-fidelity sound and advanced audio features for all your maritime adventures.
Constructed with a tough, water-resistant (IP67-rated) design, this single-chassis receiver features a bright 2.8-inch (71 mm) full-color display and an intuitive interface with backlit controls for easy operation day or night. A variety of source and media options are on board for uninterrupted listening of your favorite stations and playlists, including global radio tuners, a USB input, analog AUX input and streaming audio capabilities, courtesy of BLUETOOTH® wireless technology.
Audio output options include a robust 4-channel onboard amplifier, capable of powering your speakers with 100 watts (25-watts RMS x 4) of pure sonic delight. Nine channels of audiophile-quality preamp outputs from three separate audio zones are also included, each with a dedicated subwoofer output. Each zone includes an array of flexible audio options and is controlled by a configurable master volume knob for quick, on-the-fly adjustments, allowing complete command over different areas of your boat.
The MediaMaster 55 marine source unit also includes certified NMEA 2000® network connectivity, making it an ideal companion for use with your Garmin, Lowrance, Raymarine or Simrad multifunction display (MFD).
FEATURES
Engineered for Real-world Marine Duty
- Rugged (IP67-rated) design to withstand the elements, with all buttons sealed behind a watertight membrane
- Bright and easy-to-read 2.8-inch (71 mm) full-color LCD with a high-contrast design for enhanced viewing while in motion
- Intuitive interface with backlit controls for easy operation day or night
- Independent settings for day and night lighting with separate brightness controls for the display, buttons and optional wired remotes
Comprehensive Marine Audio System Capabilities
- Nine channels of audiophile-quality preamp outputs (4-volt RMS) from three separate audio zones, each with a dedicated subwoofer output
Independent feature and control options for each audio zone:
– Volume level: adjust all zones together or select an individual zone for discrete adjustment
– Subwoofer level: dedicated button to adjust all subwoofer zone trim levels together or select an individual zone for discrete adjustment
– Onboard crossovers: each zone is equipped with separate filters for high pass (off/80/100/120 Hz) and low pass (off/60/80/100 Hz)
– Volume limit: set a maximum allowable volume level for each zone
– Tone controls: adjust the bass, midrange, treble and balance settings
– Zone naming: customize each zone’s designation for easy identification- Built-in amplifier generates 100 watts (25 watts x 4) of high-fidelity sound for zones 1 and 2
Â
Built for Today's Modern Media
- Digital AM/FM radio tuner with radio data system extended display info
- Built-in DAB+ radio (Europe) tuner (subject to local availability)
- Store up to 18 favorite stations (across all tuners) for quick selection
- Stream audio with BLUETOOTH wireless technology and the Qualcomm® aptXâ„¢ audio codec for amazing audio fidelity with compatible devicesÂ
- USB 2.0 direct-digital connections can access music files on your USB storage device with 1 amp charging output
- Auxiliary inputs accept analog audio signals directly from external sources
- NMEA 2000 network-certified: MFD control functionality uses applicable network cables and connectors (sold separately)
Remote Controller and Interface Accessories (Each Sold Separately):
-
MMR-40 network controller: full-function water-resistant (IP66-rated) controller with full-color LCD (NMEA 2000 network)
- MMR-25W wireless controller: water-resistant (IP68-rated) controller with BLUETOOTH wireless technologyÂ
- MMR-20-BE wired remote controller: water-resistant (IP67-rated) controller (direct connection)
- MMR-5N2K network volume controller: water-resistant (IPX7-rated) controller
- MMA-1-HTML MFD data interface: digital interface generates themed navigation and controls onto your MFDÂ (NMEA 2000 network)
- MM-Remote controller application: free, full-function application controller uses your compatible wireless device; available for free download (see below)
Need additional information on making connections with MediaMaster?
View the MediaMaster® Remote Compatibility article.
The Bluetooth word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Garmin is under license. Qualcomm is a trademark of Qualcomm Incorporated, registered in the United States and other countries.
| Input Operating Voltage | 10 - 16 VDC |
| Standby Current Draw | 100 mA |
| Operating Current Draw | 15 A |
| Recommended Fuse Value | 15 A |
| Remote Turn-on Capacity | 500 mA (max) |
| Operating Temperature Range | -4 F to +149 F (-20 C to +65 C) |
| Display Size / Type | 2.8' / TFT LCD backlighted |
| Display Resolution | 320 x 240 |
| Output Channels | One stereo pair and mono subwoofer RCA plugs per zone |
| Output Zones | Relative, Absolute, Fixed or Off |
| Maximum Output Voltage | 4V RMS (Relative or Absolute), Selectable 4V/2V/1V RMS (Fixed) |
|  Tuner | |
| FM Tuner with RDS | 87.5 MHz to 107.9 MHz (0.2 MHz step) |
| AM Tuner | 530 kHz to 1710 kHz (10 kHz step) |
| DAB+ Tuner | 170 MHz to 230 MHz |
| Favorites | 18 presets across all tuners |
|  Bluetooth® | |
| Profile | A2DP v1.2, AVRCP v1.4 |
| Core Specification | Version 2.1 + EDR |
| Codec | SBC, Qualcomm® aptX™ audio |
| Connection Range | Up to 35' (11 m) |
|  USB | |
| Interface | USB 2.0 host |
| Maximum Current Output | 1 A |
| Supported Audio Formats | MP3, MP4, WAV, AAC, M4A, M4B |
| Height (H) | 3.74 in / 95 mm |
| Width (W) | 4.65 in / 118 mm |
| Depth (D1) | 2.36 in / 60 mm |
| Depth (D2) | 3.66 in / 93 mm |
| Mounting Hole Height (A) | 3.15 in / 80 mm |
| Mounting Hole Width (B) | 3.74 in / 95 mm |
| Net Weight |
Marine Materials / Testing
Summary:
The design of marine products requires extensive materials testing to achieve reliability and longevity.
Detailed Information:
Building serious marine products requires a real commitment to environmental testing and materials specification. To this end, JL Audio has invested in Ultraviolet testing chambers (to simulate years of sun exposure) and Salt Fog chambers (to simulate years of exposure to salt-water environments). This testing is critical to building products that will not only sound great in your boat, but will also sound great for many, many years.
Materials Used:
- injection-molded mica-filled polypropylene cone bodies with synthetic rubber surrounds, specifically formulated with UV inhibitors for marine duty.
- Marine-grade, synthetic fiber spiders with progressive roll designs to withstand high humidity.
- Specifically engineered polymer baskets are corrosion and UV-resistant and encapsulate the woofer's motor system to prevent corrosion.
- Gold-plated, marine-grade brass connection terminals
- Marine-grade stainless steel mounting hardware is included.
Â
Download  MM55 Product Manual
Â
Â
USA Limited Warranty: Â Two (2) years from the original date of purchaseWarranty Details
