Features & specs
| Features and Specs | ||
|---|---|---|
| Size | 8-inch | |
| Impedance (Ohms) | 4 | |
| Cone Material | Carbon-glass fiber | |
| Surround Material | Butyl rubber | |
| Port diameter (inches) | N/A | |
| Port length (inches) | N/A | |
| Free-Air | No | |
| Dual Voice Coil | No | |
| Sensitivity | 78 dB at 1 watt |
|
| Frequency Response | 40 - 500 Hz | |
| Max RMS Power Handling | 150 | |
| Peak Power Handling (Watts) | 600 | |
| Top Mount Depth (inches) | 2 3/4 | |
| Bottom Mount Depth (inches) | 3 5/16 | |
| Cutout Diameter or Length (inches) | 7 3/16 | |
| Frame Width | 8.895 | |
| Frame Length | 8.895 | |
| Vas (liters) | 10.7 | |
| Fs (Hz) | 43 | |
| Qts | 0.812 | |
| Xmax (millimeters) | 6.5 | |
| Parts Warranty | 2 Years | |
| Labor Warranty | 2 Years | |
| Box Requirements | ||
| Ideal Sealed Box Volume (cubic feet) | 0.5 | |
| Minimum Sealed Box Volume (cubic feet) | 0.375 | |
| Maximum Sealed Box Volume (cubic feet) | 0.6 | |
| Ideal Ported Box Volume (cubic feet) | 0.5 | |
| Minimum Ported Box Volume (cubic feet) | N/A | |
| Maximum Ported Box Volume (cubic feet) | N/A | |
Product Research
Features
Enclosure Compatibility
Features

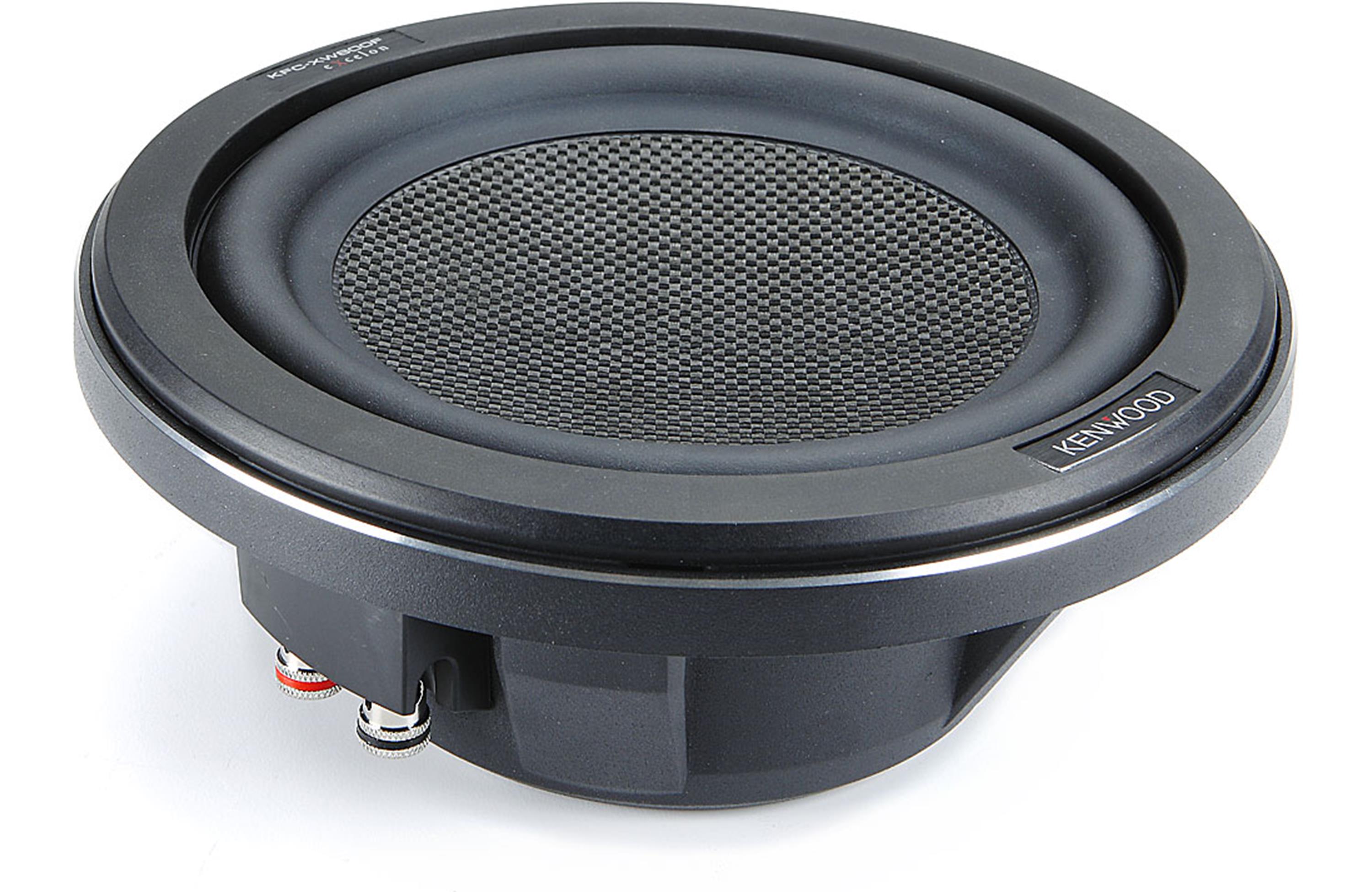

Flat Subwoofer: The Kenwood eXcelon flat subwoofer design is approximately 40% slimmer in height than a standard subwoofer. This makes them ideal for installation in the tightest of spaces such as behind or under the seat of a pickup truck.
Carbon-Glass Fiber Cone: The eXcelon flat woofer uses a carbon-glass fiber honeycomb cone which allows the woofer to be efficient and durable at the same time.
Rubber Surround: The Kenwood woofer features a smooth linear rubber surround for added durability and increased excursion resulting in exceptional deep bass response.
Super Linear Spider: The flat woofer utilizes a super linear spider for maximum control over the woofer's linear motion to improve overall sound quality.
Heat Transfer System: The Kenwood woofer features an advanced Heat Transfer System designed specifically for its slim-design to provide proper ventilation to keep the woofer cool.
Aluminum-Cast Basket: The woofer is housed in a cast-aluminum basket for increased rigidity and long-lasting reliability.
Spring Terminals: The flat woofer utilizes a pair of silver-plated spring terminals on one side of the woofer for connection to your amplifier's speaker wiring. The spring terminals will accept up to 10 AWG speaker wire.
Concealing Ring: The eXcelon woofer comes supplied with a removable, rubber concealing ring used to hide the woofer's mounting screws for a neat and professional looking installation. The concealing ring increases the top mounting height to 0.875".
Enclosure Compatibility
Sealed Box Volume: The sealed box size recommended by Kenwood is 0.5 cu/ft.
Vented Box Volume: The vented box size recommended by Kenwood is 0.5 cu/ft. One 1-3/16" x 11" x 17-1/8" (long) slot port should be used with a 0.5 cu/ft enclosure.
