Description

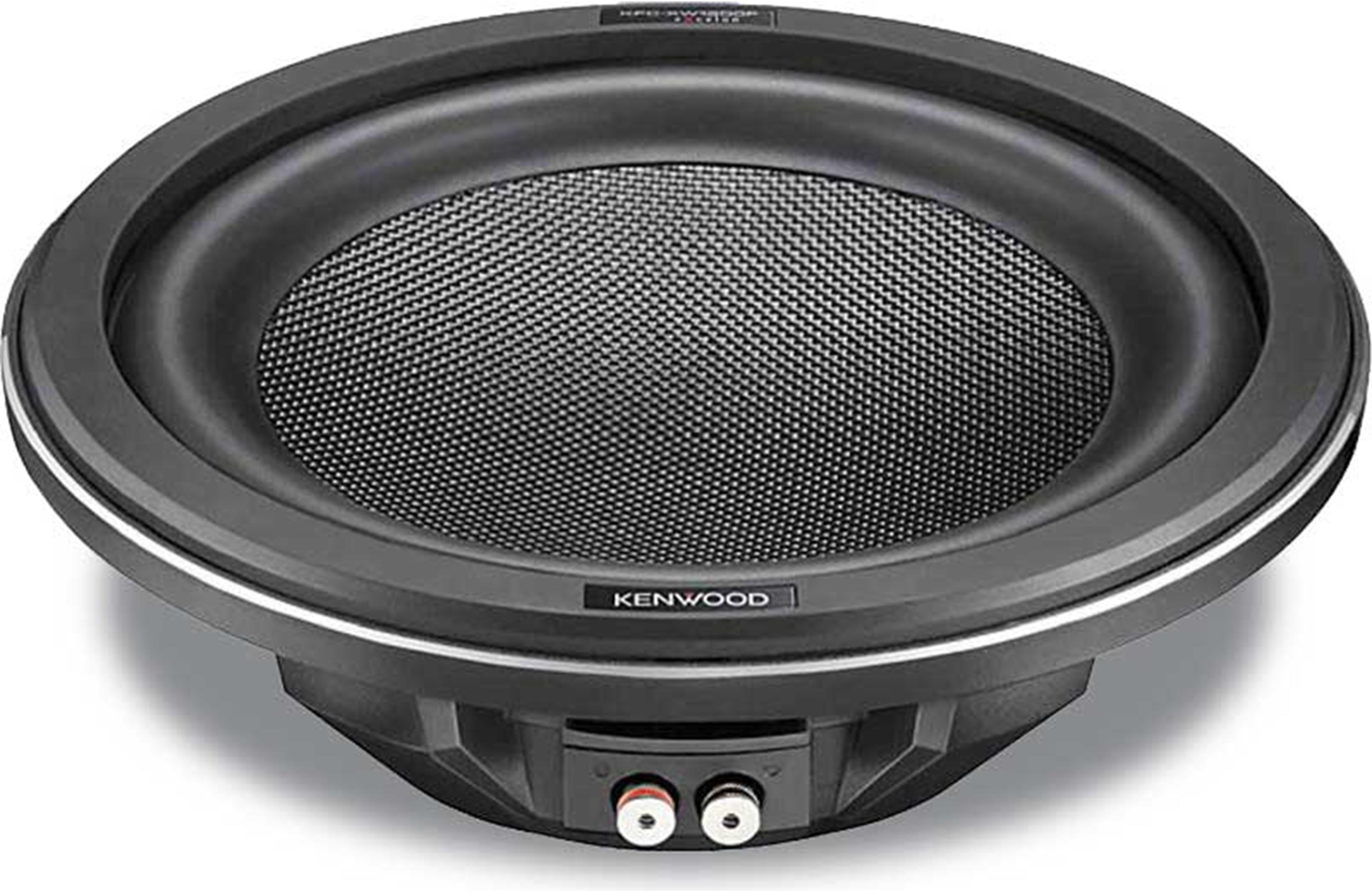

xThe Kenwood Excelon KFC-XW1000F 10" "flat" subwoofer produces serious bass output in the hard-to-fit areas of your compact car or truck. And this shallow-mount sub measures less than 3-1/2" deep, so you can get creative with your installation.
The carbon-glass fiber cone employs a honeycomb pattern to deliver quick response in demanding conditions without flexing. The beefed-up rubber surround maintains control over the cone, minimizing distortion caused by resonance. A die-cast aluminum basket offers a rock-solid housing with plenty of venting to keep the heat down. The silver-plated push terminals offer convenient connections and provide excellent signal transfer.
Subwoofer Wiring Diagrams
To see sample wiring diagrams for all common subwoofer/amplifier combinations, check out this informative article.
Priced per speaker
Product highlights:
- 10" 4-ohm shallow-mount subwoofer
- carbon-glass fiber composite cone with butyl rubber surround
- cast aluminum basket
- power range: 50-250 watts RMS
- peak power: 1,000 watts
- frequency response: 35-800 Hz
- sensitivity: 90 dB
- mounting depth: 3-15/16"
- sealed box volume: 0.6 cu. ft.
- ported box volume: 0.6 cu. ft.
- warranty: 2 years
- MFR # KFC-XW1000F
- Item # 113XW1000
What's in the box:
Kenwood Excelon KFC-XW1000F owner's manual
- One 10" SVC Woofer
- Rubber concealing ring (installed)
- Self-adhesive foam strip
- 8 Mounting screws
- "Kenwood" logo sticker for woofer
- "eXcelon logo sticker for woofer
- Cardboard template
- Instruction Manual (English/French/Spanish)
- Warranty Card
Features & specs
| Features and Specs | ||
|---|---|---|
| Size | 10-inch | |
| Impedance (Ohms) | 4 | |
| Cone Material | Carbon-glass fiber | |
| Surround Material | Butyl rubber | |
| Port diameter (inches) | 3 | |
| Port length (inches) | 11 | |
| Free-Air | No | |
| Dual Voice Coil | No | |
| Sensitivity | 90 dB at 1 watt |
|
| Frequency Response | 35 - 800 Hz | |
| Max RMS Power Handling | 250 | |
| Peak Power Handling (Watts) | 1000 | |
| Top Mount Depth (inches) | 3 3/8 | |
| Bottom Mount Depth (inches) | 3 15/16 | |
| Cutout Diameter or Length (inches) | 9 1/8 | |
| Frame Width | 10.838 | |
| Frame Length | 10.838 | |
| Vas (liters) | 21.05 | |
| Fs (Hz) | 38.6 | |
| Qts | 0.72 | |
| Xmax (millimeters) | 7.5 | |
| Parts Warranty | 2 Years | |
| Labor Warranty | 2 Years | |
| Box Requirements | ||
| Ideal Sealed Box Volume (cubic feet) | 0.6 | |
| Minimum Sealed Box Volume (cubic feet) | 0.48 | |
| Maximum Sealed Box Volume (cubic feet) | 0.76 | |
| Ideal Ported Box Volume (cubic feet) | 0.6 | |
| Minimum Ported Box Volume (cubic feet) | N/A | |
| Maximum Ported Box Volume (cubic feet) | N/A | |
The Kenwood Excelon KFC-XW1000F replaces these items:
Product Research
Features
Enclosure Compatibility
Features
Flat Subwoofer: The Kenwood eXcelon flat subwoofer design is approximately 40% slimmer in height than a standard subwoofer. This makes them ideal for installation in the tightest of spaces such as behind or under the seat of a pickup truck.
Carbon-Glass Fiber Cone: The eXcelon flat woofer uses a carbon-glass fiber honeycomb cone which allows the woofer to be efficient and durable at the same time.
Rubber Surround: The Kenwood woofer features a smooth linear rubber surround for added durability and increased excursion resulting in exceptional deep bass response.
Super Linear Spider: The flat woofer utilizes a super linear spider for maximum control over the woofer's linear motion to improve overall sound quality.
Heat Transfer System: The Kenwood woofer features an advanced Heat Transfer System designed specifically for its slim-design to provide proper ventilation to keep the woofer cool.
Aluminum-Cast Basket: The woofer is housed in a cast-aluminum basket for increased rigidity and long-lasting reliability.
Spring Terminals: The flat woofer utilizes a pair of silver-plated spring terminals on one side of the woofer for connection to your amplifier's speaker wiring. The spring terminals will accept up to 10 AWG speaker wire.
Concealing Ring: The eXcelon woofer comes supplied with a removable, rubber concealing ring used to hide the woofer's mounting screws for a neat and professional looking installation. The concealing ring increases the top mounting height to 1".
Enclosure Compatibility
Sealed BoxVolume: The sealed box size recommended by Kenwood is 0.6 cu/ft.
Vented Box Volume: The vented box size recommended by Kenwood range is 0.6 cu/ft. One 3" diameter x 11" long port should be used with a 0.6 cu/ft enclosure.
