Features & specs
| General | ||
|---|---|---|
| Speaker Size | Vehicle-specific | |
| Design | 3-way | |
| Tweeter Design | Dome | |
| Impedance (Ohms) | 4 | |
| Tweeter Composition | Silk | |
| Woofer Composition | Polypropylene | |
| Woofer Surround | Rubber | |
| Parts Warranty | 2 Years | |
| Labor Warranty | 2 Years | |
| Specifications | ||
| Sensitivity (1W at 1 meter) | 84 | |
| Sensitivity at 2.83 volts | N/A | |
| Frequency Response | 45 - 23k Hz | |
| Minimum RMS Wattage | --- | |
| Maximum RMS Wattage | 100 | |
| Peak Power Handling (Watts) | 300 | |
| Top-mount Depth (Inches) | 1 5/8 | |
| Bottom-mount Depth (Inches) | 3 1/4 | |
| Cutout Diameter or Length (inches) | 0 | |
| Mounting Height (Inches) | 0.478 | |
| Frame Width | 6.488 | |
| Frame Length | 9.296 | |
Product Research
Features

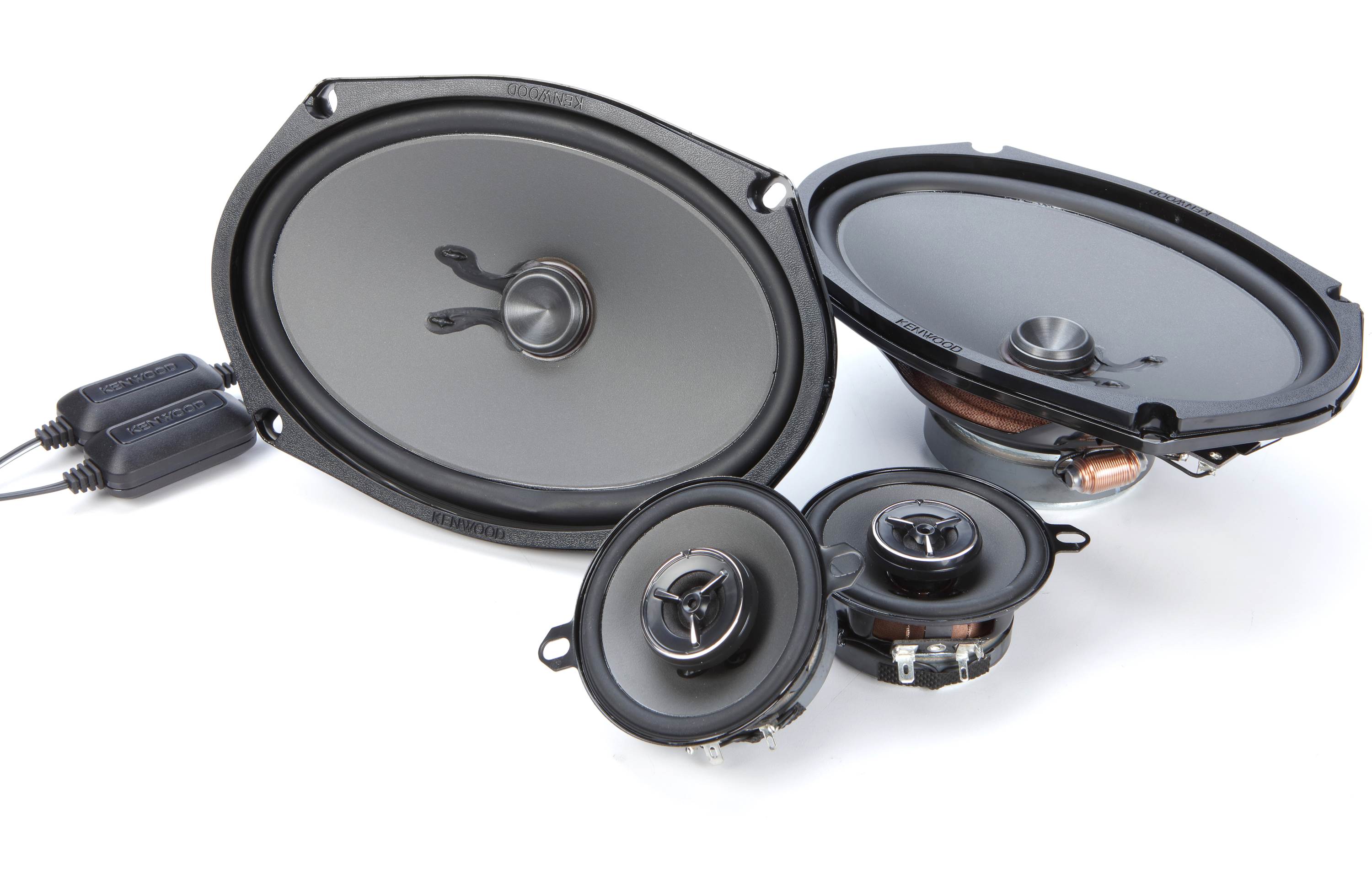

Custom Brackets: The KFC-XP6903C is designed as a factory replacement speaker system. The included 6x9 woofers are typically installed in the front doors. Mounting brackets are also included, compatible with many GM, Toyota, and Dodge vehicles. The multi-purpose brackets are scored for trimming to fit several applications. Please enter your vehicle information to confirm fit.
Midrange: The included 3½" coaxial speakers replace the factory tweeters.
Crossover Network: A high-pass crossover is integrated into each wire included for the midrange/tweeter. The output end of the wire has quick slides that plug onto the 3½" coaxial speaker terminals. (The input end of the wire is not terminated.) The low-pass crossovers are wired to the 6x9 woofer terminals and attached to the speaker baskets. Each woofer has two positive input terminals, one to utilize the crossover and one to bypass.
Warranty Note: Although the information included with these speakers indicates a 1-year warranty, they are actually covered by the Kenwood eXcelon 2-year warranty.
