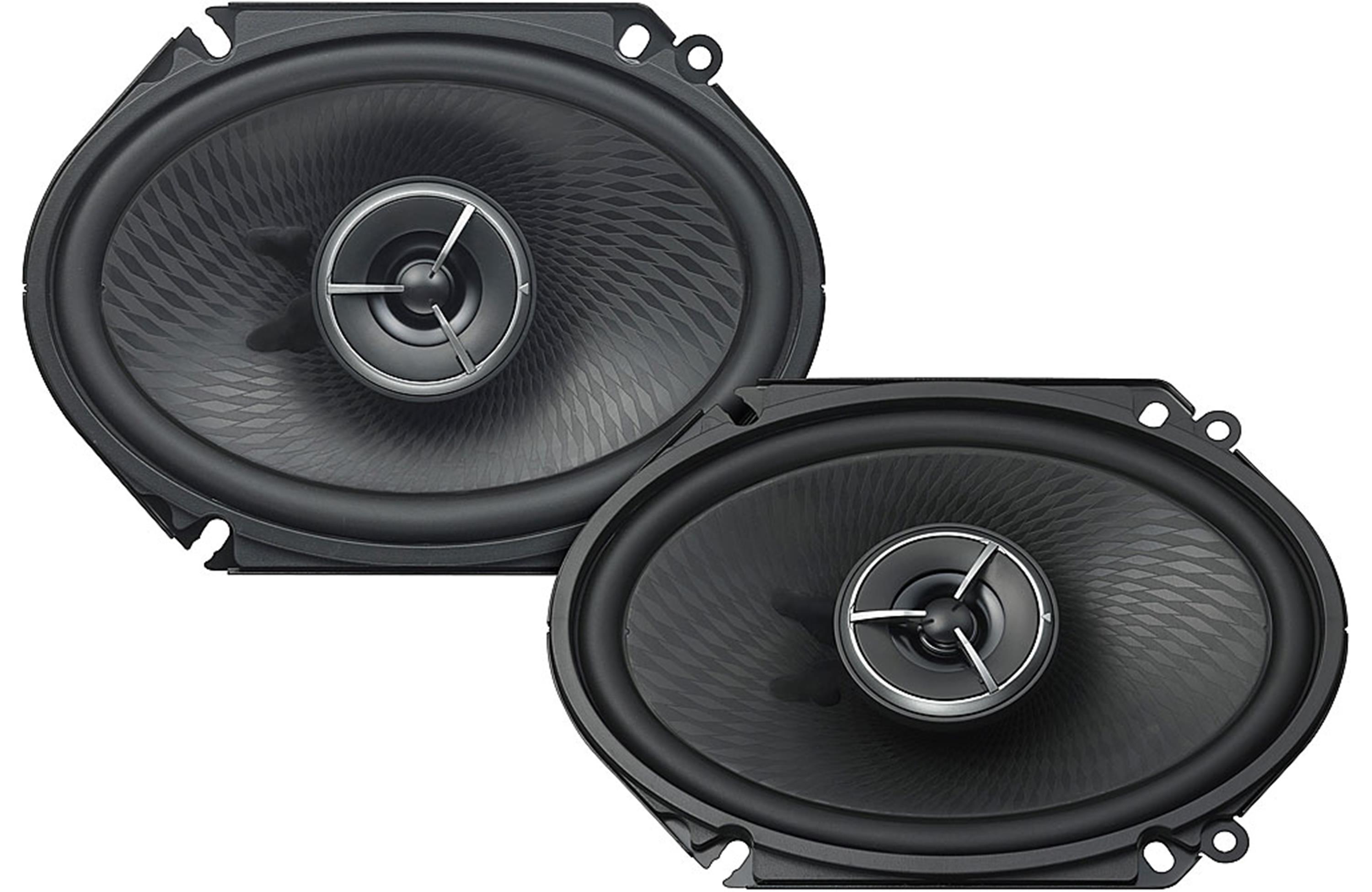

Kenwood Excelon speakers incorporate technical know-how and advanced materials to give your music the full, rich sound it deserves. These full-range speakers sport a diamond-array pattern etched into their woofers that increases the strength of the carbon-polypropylene cone for improved dynamic response and lower distortion. The butyl rubber surround resists weathering, providing reliable support that keeps your music playing, no matter what.
The KFC-X683C 6"x8" full-range speakers feature 1-3/16" balanced dome tweeters that deliver all the high-frequency details without sounding harsh. Because of their specially designed magnetic circuitry and neodymium magnets, these compact tweeters use less steel in their construction than most tweeters, so you hear more accurate response.
Grilles are not included; the factory grilles should be suitable for most applications.
Priced per pair
Kenwood Excelon KFC-X683C owner's manual
General | ||
---|---|---|
Speaker Size | 6X8 | |
Design | 2-way | |
Tweeter Design | 1-3/16" Balanced Dome | |
Impedance (Ohms) | 3 | |
Tweeter Composition | PEI | |
Woofer Composition | Carbon Polypropylene | |
Woofer Surround | Butyl rubber | |
Parts Warranty | 2 Years | |
Labor Warranty | 2 Years | |
Specifications | ||
Sensitivity (1W at 1 meter) | 88 | |
Sensitivity at 2.83 volts | N/A | |
Frequency Response | 80 - 21k Hz | |
Minimum RMS Wattage | 2 | |
Maximum RMS Wattage | 60 | |
Peak Power Handling (Watts) | 180 | |
Top-mount Depth (Inches) | 2 9/16 | |
Bottom-mount Depth (Inches) | N/A | |
Cutout Diameter or Length (inches) | 0 | |
Mounting Height (Inches) | 0.575 | |
Frame Width | 5.745 | |
Frame Length | 8.055 |
Woofers: The woofer cones are constructed of Carbon-PP (polypropylene) with a diamond array pattern. The woofers feature butyl rubber surrounds for a smoother response and improved durability.
Tweeters: Each speaker uses a 1-3/16" PEI balanced-dome tweeter. PEI (Poly-Ether Imide) is a polymer film that has ideal sound characteristics, making it perfect for use as a tweeter. A PEI balanced-dome tweeter produces a wide soundstage for superior imaging.
Custom Fit: The 6x8" speaker's frame features two additional mounting holes which allows the speaker to fit in 5x7" openings of select Ford and Mazda vehicles.
Warranty Note: Although these speakers come with a 1-year warranty card, they are covered by the Kenwood eXcelon 2-year warranty.
