Features & specs
General | ||
---|---|---|
Speaker Size | 6 1/2 | |
Design | 2-way | |
Tweeter Design | 1" Dome | |
Impedance (Ohms) | 4 | |
Tweeter Composition | --- | |
Woofer Composition | Carbon/Polypropylene | |
Woofer Surround | Rubber | |
Parts Warranty | 2 Years | |
Labor Warranty | 2 Years | |
Specifications | ||
Sensitivity (1W at 1 meter) | 87 | |
Sensitivity at 2.83 volts | N/A | |
Frequency Response | 63 - 17k Hz | |
Minimum RMS Wattage | 6 | |
Maximum RMS Wattage | 80 | |
Peak Power Handling (Watts) | 280 | |
Top-mount Depth (Inches) | 2 1/2 | |
Bottom-mount Depth (Inches) | N/A | |
Cutout Diameter or Length (inches) | 6 | |
Mounting Height (Inches) | 0.755 | |
Frame Width | 6.522 | |
Frame Length | 6.531 |
Product Research
Features

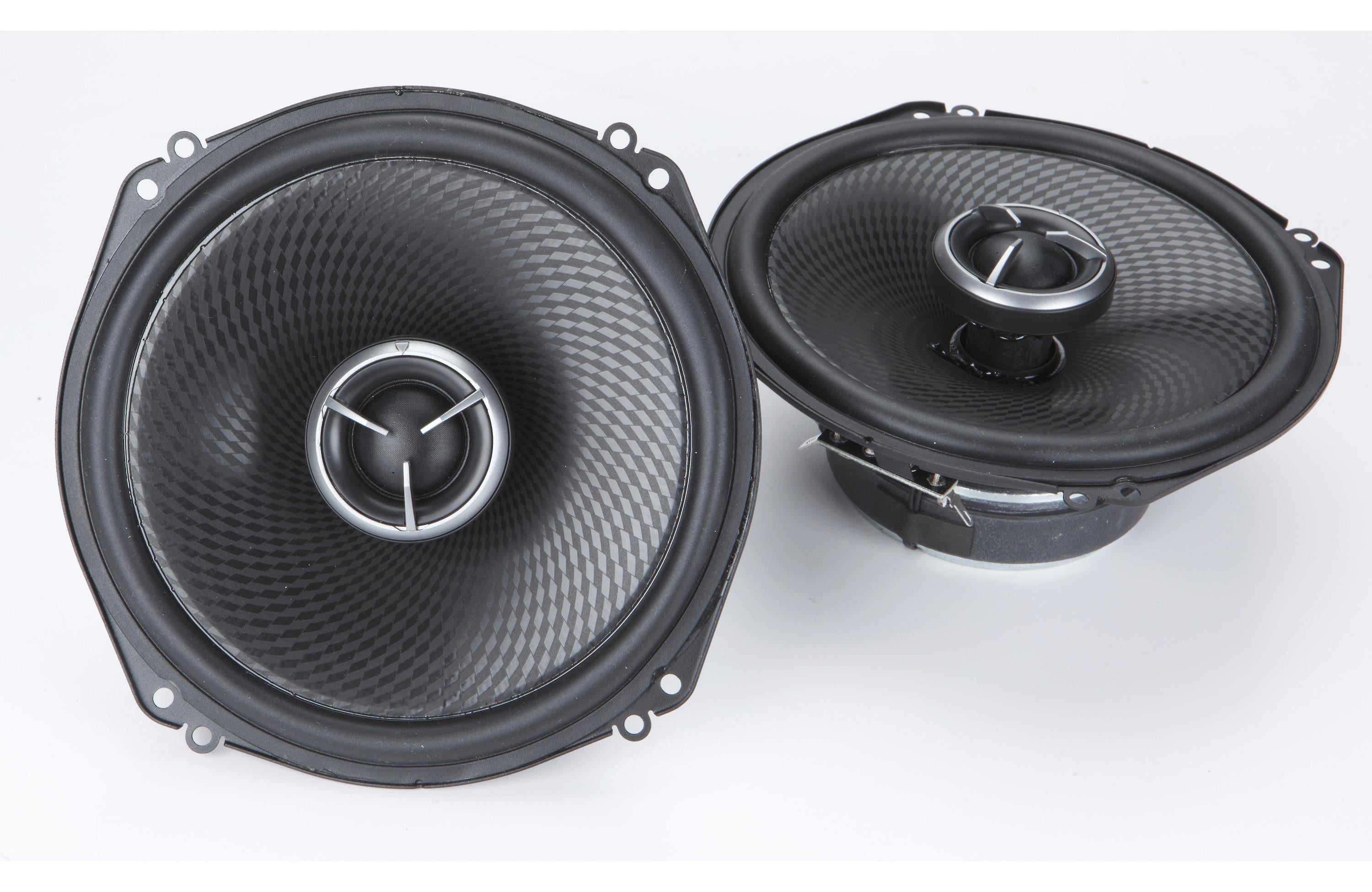

Custom Brackets: The KFC-X183C is designed as a factory replacement speaker and includes adapters compatible with many GM, Toyota, and Dodge vehicles (one bracket adapts to a 6x9 opening, the other is a multi-purpose bracket and is scored for trimming to fit several applications). Please refer to the Crutchfield Car Selector to confirm fit for your vehicle.
Woofers: The woofer cones are Carbon/Polypropylene. They are oversized for a fuller sound quality than typical factory speakers. The Carbon/Polypropylene cones and rubber surrounds are durable, designed to withstand the harsh automotive environment.
Tweeters: Each speaker has a 1" soft dome tweeter for smooth, accurate highs. The tweeters use a neodymium magnet for higher efficiency.
