How great do you feel about driving after running your ride through the car wash? With Kenwood's Performance Series speakers cleaning up your muddy factory sound, you'll get that feeling every time you start your engine. Kenwood has incorporated new technology into these speakers to give you the best sonic bang for your buck.

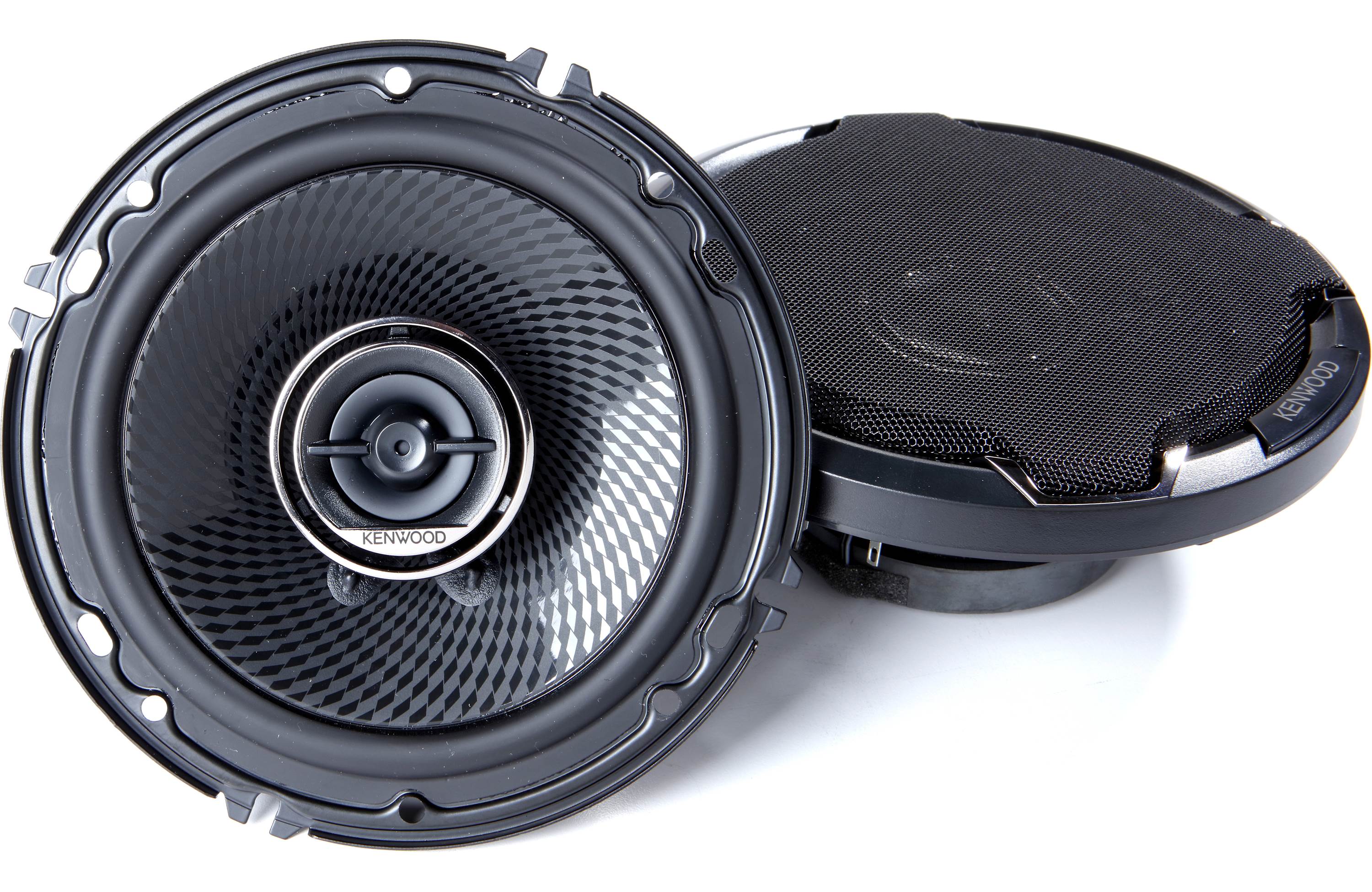

These KFC-1696PS 6-1/2" speakers rock a polypropylene cone with a diamond array pattern, which minimizes distortion, while a rubber surround ensures overall durability. All the musical details are handled by the balanced dome tweeter, and dispersion is improved by Kenwood's proprietary Sound Field Enhancer.
Kenwood's Acoustic Sound Harmonizer uses slots on the mount housing the tweeter to improve the transition to the higher frequencies, so you'll experience a smoother sound overall. Grilles are included for custom installations.
Kenwood KFC-1696PS owner's manual
General | ||
---|---|---|
Speaker Size | 6 1/2 | |
Design | 2-way | |
Tweeter Design | 1-3/16" Balanced Dome | |
Impedance (Ohms) | 4 | |
Tweeter Composition | PEI | |
Woofer Composition | Polypropylene | |
Woofer Surround | Rubber | |
Parts Warranty | 1 Year | |
Labor Warranty | 1 Year | |
Specifications | ||
Sensitivity (1W at 1 meter) | 88 | |
Sensitivity at 2.83 volts | N/A | |
Frequency Response | 75 - 24k Hz | |
Minimum RMS Wattage | --- | |
Maximum RMS Wattage | 100 | |
Peak Power Handling (Watts) | 320 | |
Top-mount Depth (Inches) | 1 15/16 | |
Bottom-mount Depth (Inches) | N/A | |
Cutout Diameter or Length (inches) | 4 7/8 | |
Mounting Height (Inches) | 0.355 | |
Frame Width | 6.226 | |
Frame Length | 6.226 |
Mounting: The KFC-1696PS will fit in in standard three-hole and four-hole 6½" applications. They can also be mounted in 6¾" applications, but because the extra screw holes create an air leak in the larger opening, speaker baffles should be used.
