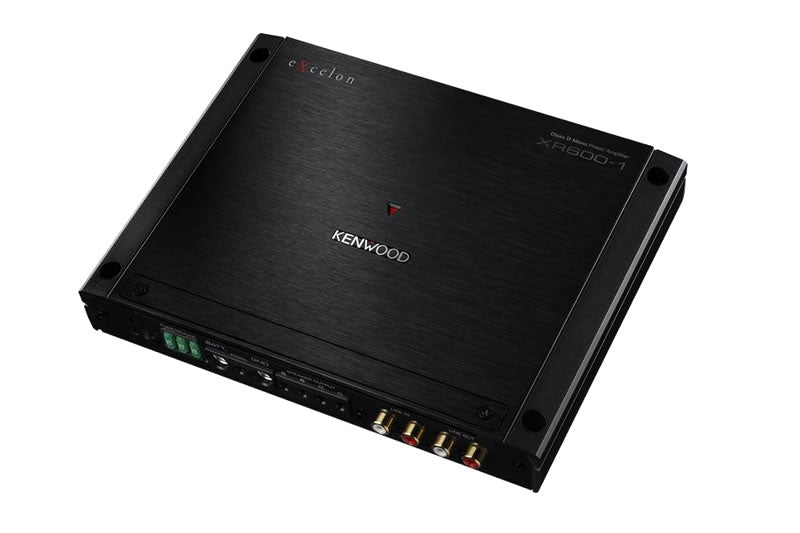

xAbout the Kenwood Excelon XR600-1
Super-slim profile, big-time power
Kenwood's Excelon XR600-1 mono subwoofer amplifier adds power and punch to your car's subwoofer system, as it powers your sub with up to 600 watts RMS. The XR600-1 can fit in many different places in your car because of its incredibly low profile — it's under 1-1/2" tall. Amazing.
Designed for optimum efficiency
Kenwood packed this amp with space-saving features. Class D technology reduces the size of the power supply, while the internal heatsink is tilted to reduce height without compromising the amp's cooling system. Recessed power and speaker wire terminals help to further reduce the amp's footprint, protect the connections, and give your installation a neat, professional look.
Controls for the best bass
This no-nonsense amplifier features a low-pass filter that sends the correct frequencies to your sub so it'll play efficiently and sound its best. The amp also includes an adjustable bass boost that adds some low-end punch when you want it.
Features:
- mono subwoofer amplifier
- 400 watts RMS x 1 at 4 ohms (600 watts RMS x 1 at 2 ohms)
- CEA-2006 compliant
- variable low-pass filter (50-200 Hz at 24 dB/octave)
- adjustable bass boost (0-18 dB at 40 Hz)
- Class-D amplifier design
- frequency response: 20-200 Hz
- preamp inputs and outputs
- fuse rating: 30A x 3
- 4-gauge power and ground leads recommended — wiring and hardware not included with amplifier
Specifications:
| CEA-2006 Standard | 400 W x 1 | RMS Watts per channel @ 4 ohms, 1% THD+N |
|---|---|---|
| 78 dBA | Signal to Noise Ratio (Reference: 1 Watt into 4 ohms) | |
| Max Power Output | - | |
| Rated Power Output | 14.4 V | |
| 400 W x 1 | (4Ω) (20 Hz - 200 Hz, 1.0% THD) | |
| 600 W x 1 | (2Ω) (100 Hz, 1.0% THD) | |
| Frequency Response | 20-200Hz(±1dB) | |
| Input Sensitivity | 0.2 V - 5.0 V (MIN-MAX) | |
| Input Impedance | 10 kΩ | |
| Signal to Noise Ratio | 100 dB | |
| Low Pass Filter Frequency | (-24 dB/oct.) | |
| 50 Hz - 200 Hz (variable) | Low-Pass Filter Frequency | |
| High Pass Filter Frequency | - | |
| Dimensions (W x H x D) | 220 x 35 x 169 mm (8-11/16 x 1-3/8 x 6-5/8) | |
Warranty:
- warranty: 2 years
- MFR # XR600-1
- Item # 113XR6001
What's in the box:
Kenwood Excelon XR600-1 owner's manual
- Mono subwoofer amplifier
- Three 30-amp mini blade fuses (installed)
- 4mm Allen wrench
- 2.5mm Allen wrench
- 2mm Allen wrench
- Four 5/8" Self-tapping screws
- Instruction manual (English/ French/ Spanish)
- Warranty card
