Product Research
Features

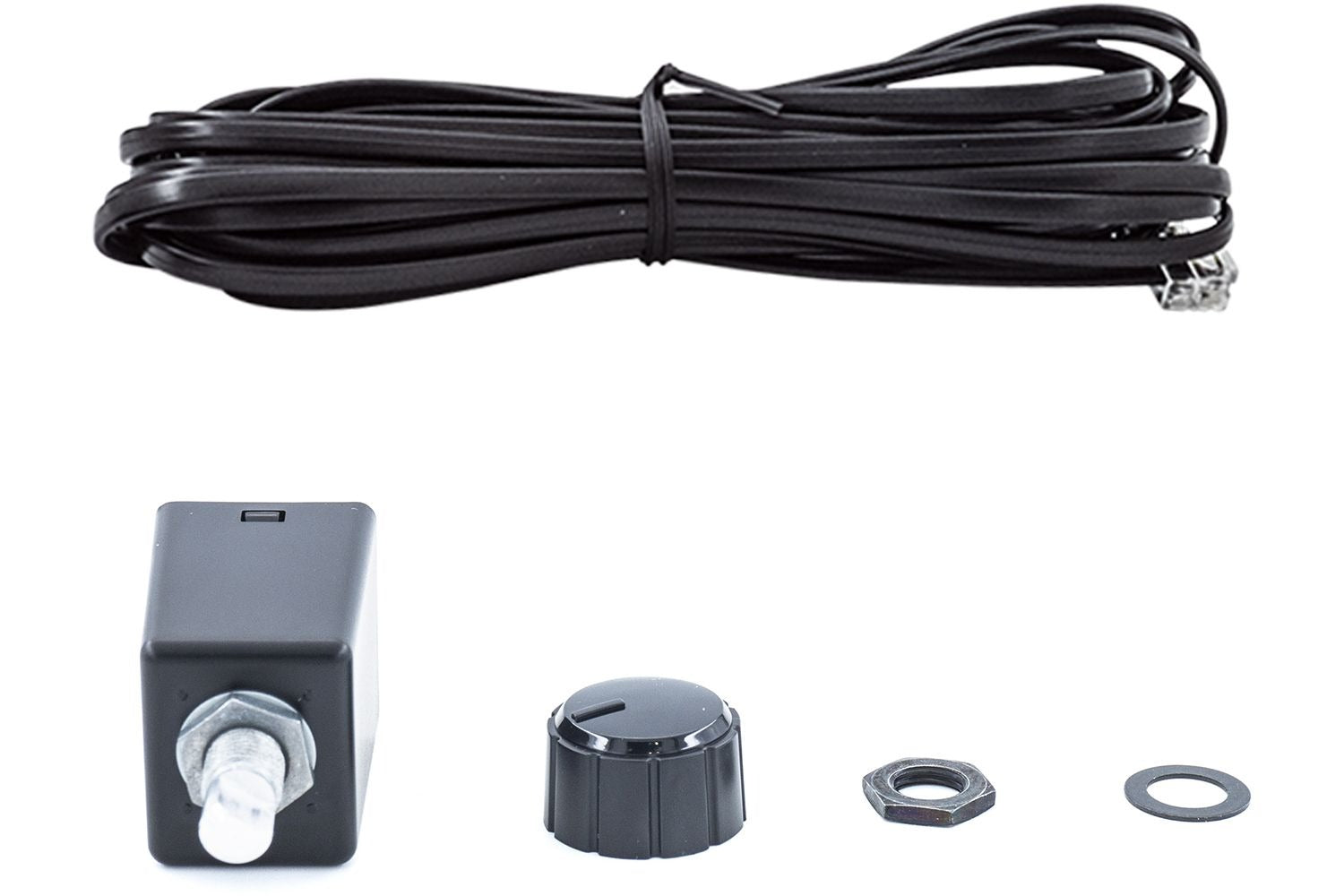

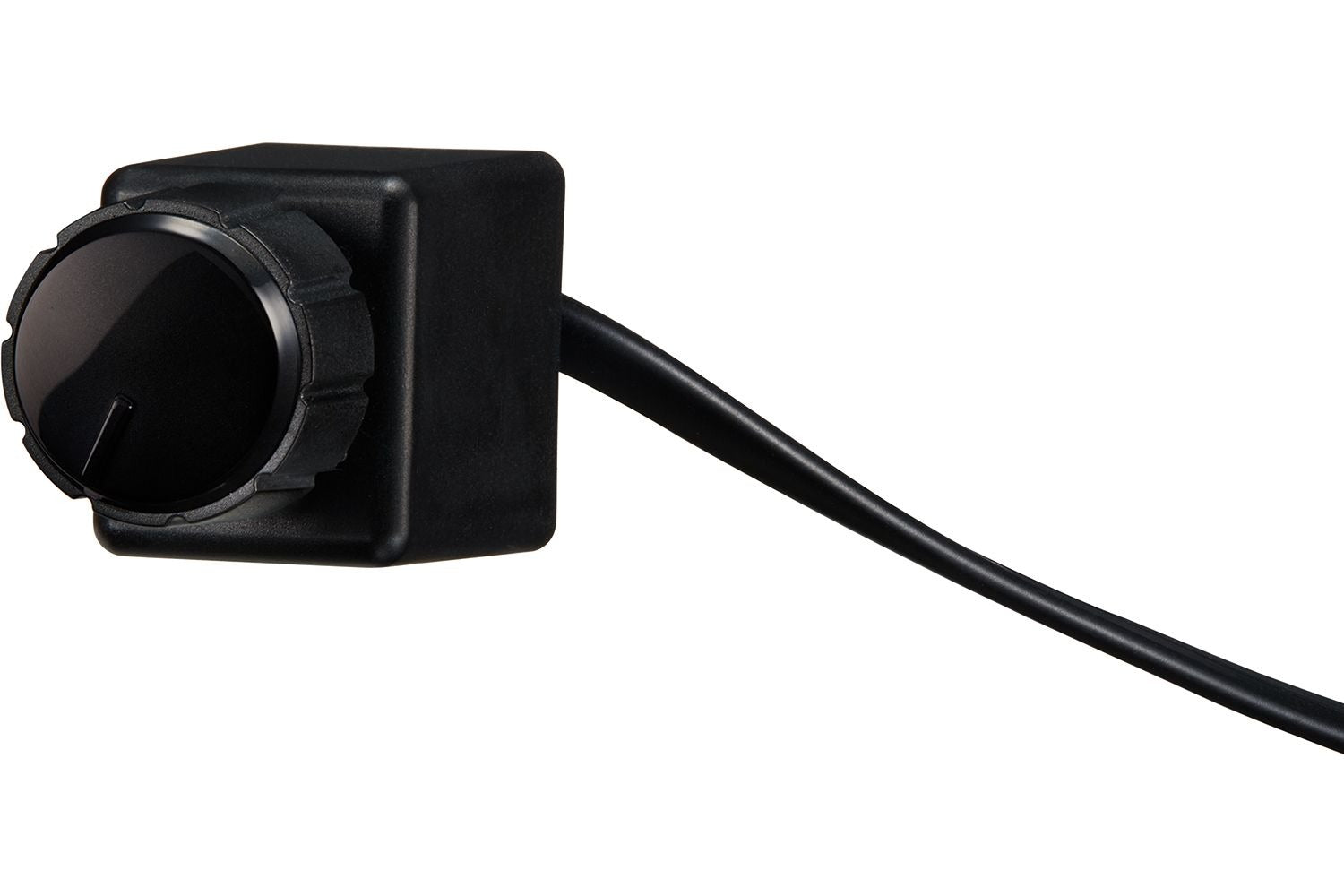

Overview: The KCA-RC01A is a wired remote subwoofer level control for compatible Kenwood amplifiers. It allows you to adjust the output of the amplifier's subwoofer channel remotely. A 19.7' (6 meter) cable is included, with RJ-25 (phone-type) plugs on both ends, to connect the remote to the amplifier.

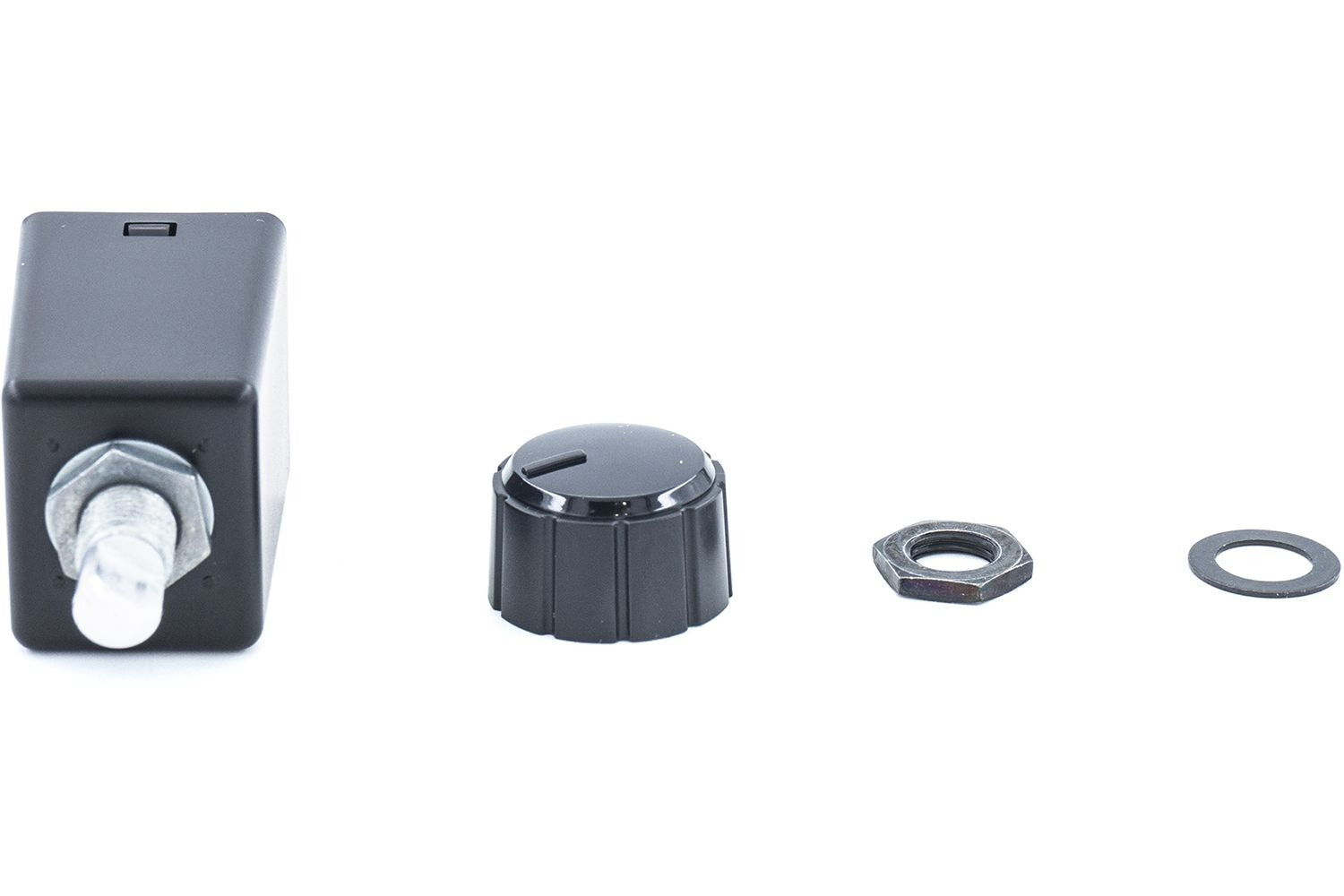

Installation: The remote module is mounted behind a panel in the car, with its threaded shaft extending through a 5/16" hole in the panel, held in place using the included washer and hex nut. The knob is then installed on the shaft.
Dimensions:
- Mounting Depth: 1⅝"
- Knob Protrusion: ¾"
-
Chassis:
- Width: ⅞"
- Height: 1"
- Depth: 1¼"
