Description

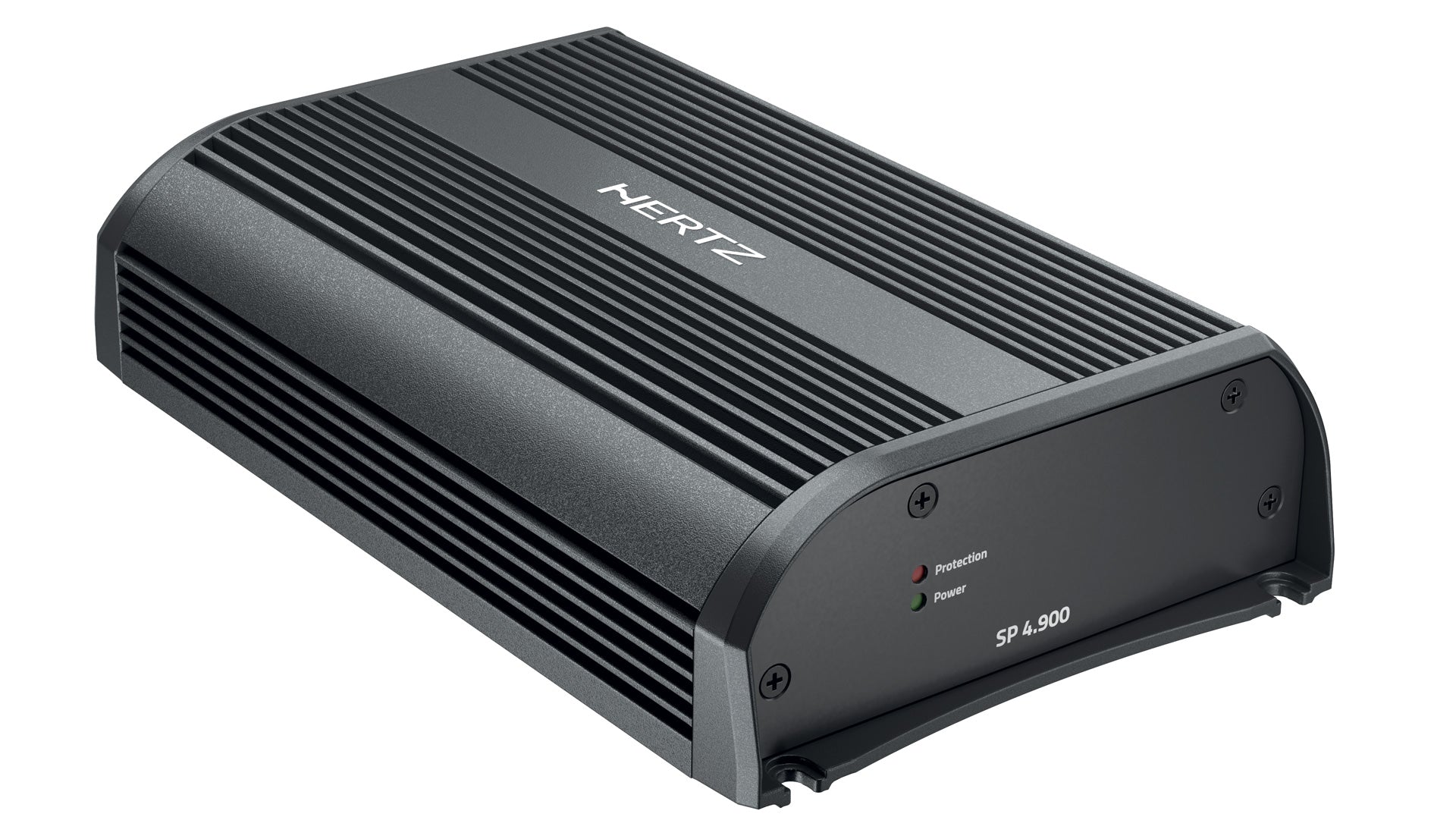

xSP 4.900 is the first Hertz amplifier featuring the renewed Hertz ADC (Advanced D-Class) output stage, reaching up to 85% efficiency and delivering an impressive power rating of 160 x 4 (4Ω) W RMS or 500 W x 2 (4Ω) W RMS when bridged, with an ultra-compact size of 211.6 (8.3) x 130 (5.1) mm (in.). Being ultra-compact with impressive power, SP 4.900 is the ideal choice for Motorcycle application and for under-seat in sports cars and behind-seat installations in trucks.
Hertz ADC
(Advanced D-Class)
The Herz SP compact amplifier range consists of three high-performance models. There are two four-channel models, the flagship SP4.900 with 160 x 4 W RMS at 4Ω and the SP4.500 with 90 x 4 W RMS at 4Ω, and a mono model SP1.900 boasting 1000 W RMS at 1Ω.
Hertz SP amplifier are the first Hertz amplifier featuring the renewed Hertz ADC (Advanced D-Class) output stage, reaching up to 87% efficiency and delivering an impressive power rating, with an ultra-compact size.
Being ultra-compact with an impressive power, SP amplifiers are the ideal choice for Motorcycle application and for under-seat in sport cars and behind-seat installations in trucks.
Features
- Up to 87% efficiency thanks to ADC (Advanced D-Class) output stage.
- USS (Universal Speakers Simulators) allows SP 4.900 to work with head units featuring the “speaker load detection” circuit.
- 160 W RMS x 4 (4Ω) with ultra-compact size 211.6 x 130 x 49 / 8.3 x 5.1 x 1.9 (mm/inch).
- IP55 aluminium chassis for maximum protection against humidity and external agents.
- No cooling fan to prevent internal accumulation of dirt 6. Sealed power cord, line inputs, and speaker outputs to prevent oxidation.
- Crossovers filters and controls on a single side to facilitate calibration when the product is installed.
General Specs
| Channels | 4 - 3 - 2 |
| Nominal power supply voltage | 11 ÷ 15 VDC |
| Pulse Operating voltage | 6 ÷ 16 VDC |
| Idling current | 1.1 A |
| Idling current when off | 0.03 mA |
| Consumption @ 14.4 VDC, MIN load impedance (Max Musical Power) | 50 A |
| Remote IN | 6 ÷ 15 VDC (9 mA) |
| DC-REM - Remote Turn on by SPK DC from OUTPUT BTL speakers | 3.5 ÷ 7 VDC |
| Distortion - THD @ 1 kHz, 4Ω, 70% Rated Power | 0.02% |
| Damping factor @ 1 kHz, 4Ω, 2 VRMS | 200 |
| Bandwidth @ -3 dB | 10 Hz ÷35 kHz |
| S/N ratio (A weighted @ 1 V Input) | 105 dBA |
| Pre-In sensitivity | 0.6 ÷ 6 VRMS |
| Speaker-In sensitivity | 2.2 ÷ 22 VRMS |
| Minimum load impedance: | |
| @ 4Ch | 2Ω |
| @ 3Ch | 2Ω + 2Ω + 4Ω |
| @ 2Ch | 4Ω |
| IP Rating | IP55 |
| Operating Temperature Range | 0°C (32°F) to 55°C (131°F) |
| Max size (mm/inch) | 211.6 x 130 x 49 / 8.33 x 5.118 x 1.929 |
| Weight (kg/lbs) | 2.15 / 4.74 |
| Adjustable Crossovers | yes |
Output Power
| Output Nominal Power (RMS) @ 14.4 VDC, THD 1%: | |
| 4 Ch: | 160 W x 4 (4Ω) |
| 4 Ch: | 250 W x 4 (2Ω) |
| 3 Ch: | 160 W x 2 (4Ω) + 500 W x 1 (4Ω) |
| 3 Ch: | 250 W x 2 (2Ω) + 500 W x 1 (4Ω) |
| 2 Ch: | 500 W x 2 (4Ω) |
| Total Power | 1000 W |
INPUTS / FILTERS
| INPUTS: | Pre IN / Speaker IN |
| Ch 1-2 | |
| Full | - |
| Hi-pass | 50 ÷ 5k Hz @ 12 dB/Oct. |
| Lo-pass: | 50 ÷ 5k Hz @ 12 dB/Oct. |
| Ch 3-4 | |
| Full | - |
| Hi-pass | 50 ÷ 5k Hz @ 12 dB/Oct. |
| Lo-pass | 50 ÷ 5k Hz @ 12 dB/Oct. |
| Bass Boost 45Hz (adjustable) | (0 ÷ 8) dB [LP = ON only] |
