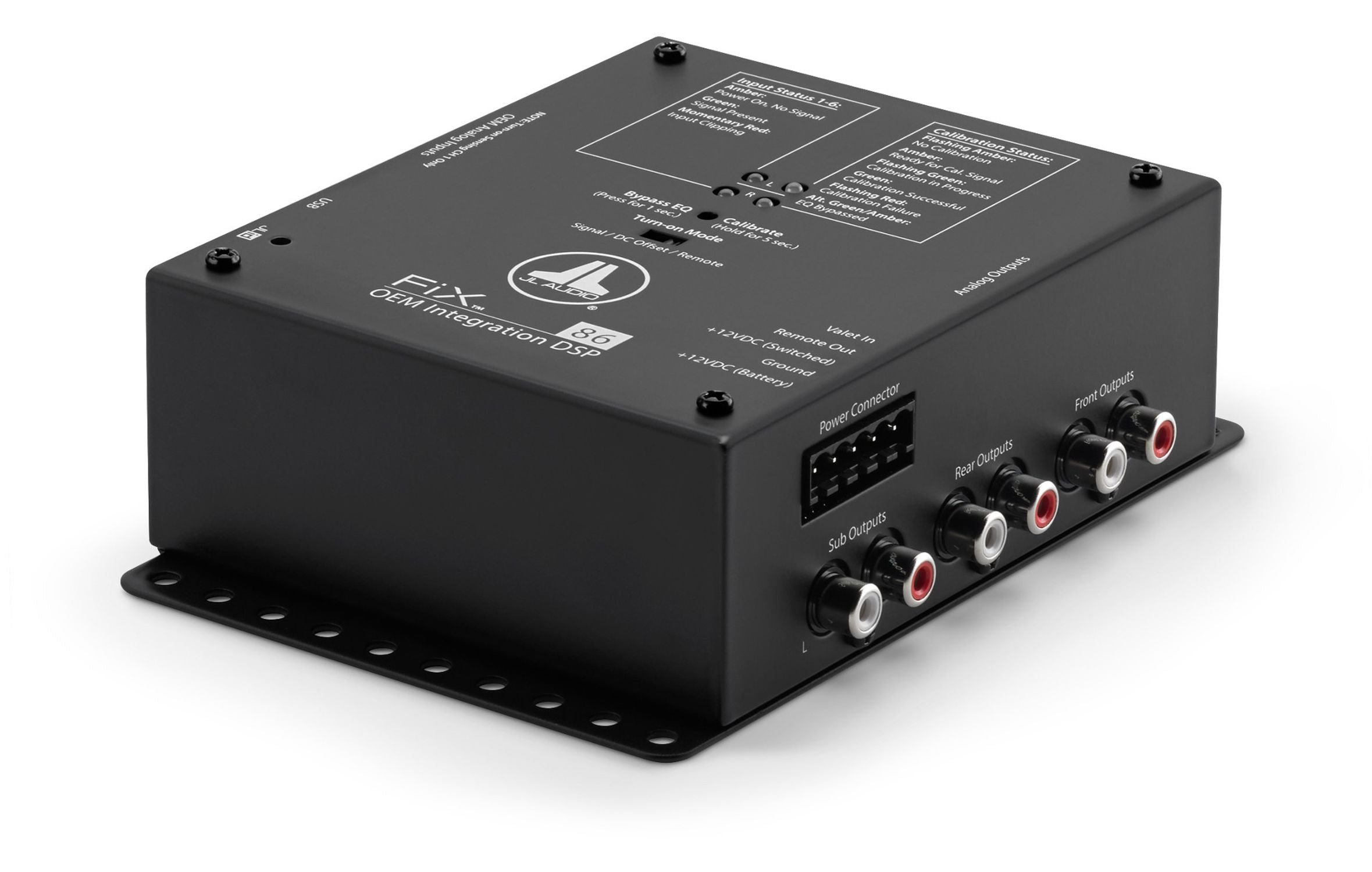

FIX 86 CAR AUDIO PROCESSORS SYSTEM TUNING 98103

OEM Integration DSP with Automatic Time Correction and Digital EQ. 8-ch. Inputs / 4-ch. Stereo + 2 Subwoofer RCA Outputs



The FiX® 86 is a state-of-the-art digital signal processor engineered to deliver outstanding sound from factory source units, while retaining OEM fader control.

Unlike typical OEM interface products, the FiX® 86 automatically corrects time-delayed factory outputs prior to signal summing and EQ correction. Calibration takes just a single button press and about 30 seconds to complete, with no special equipment needed.

With a powerful 24-bit DSP processor and quad 1/3 octave equalizers onboard, complex factory signals, up to 3-way front and 2-way rear, are combined and level matched automatically into six, full-range stereo signals: Front (fader-controlled), Rear (fader-controlled) and Subwoofer (non-fading, front+rear summed) outputs.

By connecting a PC running TüN® Software via USB, you can also access a complete suite of diagnostic panels that show the frequency response of input signals, as well as the corrected outputs. Adjustments can be made to input polarity, muting, and filtering, and new calibrations can be initiated from the PC as well. By clicking on the “TUNE” tab of the TüN® interface, you can also access four, user-adjustable, 10-band, graphic equalizers to fine tune the output signals.

Differential-balanced inputs accept virtually any OEM analog audio signal, from low-voltage, line-level to high-power, amplified speaker-level outputs (up to 30V RMS).

Activation methods include 12-volt or Auto Turn-On (Signal/DC-Offset Sensing) to trigger a dedicated remote turn-on output for aftermarket equipment.

An optional DRC-100 or DRC-200 Digital Remote Controller (sold separately) adds Master Volume Control and/or Subwoofer Level Control from the driver’s seat.

Achieving great sound from your factory stereo has never been easier, or sounded better... Now with fader retention and subwoofer output!

JLidâ„¢

Summary:
JLidâ„¢ is JL Audio's protocol for digital controllers and for communication of settings between devices (not for audio signals).

Detailed Information:
JLidâ„¢ offers two-way communication for a range of accessories, including the following:

    Wired System Controllers: DRC-100, DRC-200, DRC-205, M-DRC-50
    Networking Accessory: VXi-HUB, MVi-HUB
    Wireless Bluetooth® Communicator: VXi-BTC

JL Audio FiX® and TwK® processors each feature one JLid™ port, designed for connection of a wired controller.

JL Audio VXi and MVi amplifiers offer powerful networking capabilities via JLid™, to deliver single-point control of multiple amplifiers in a system. This allows the listener to adjust levels (Volume, Fader, Balance, Zone Level) and to easily select from multiple DSP presets, across an entire group of networked amplifiers. Each VXi amplifier is outfitted with separate JLid™ Control and JLid™ Comm ports. DSP equipped MVi amplifiers include a single JLid™ Comm port. Please refer to each product’s manual and our Help Center for details.

JLidâ„¢ connections are made via standard CAT-5e cables.



Download: Firmware Updates to connect with TüN® 2.0

Help Center Articles: FiX OEM Integration Processors



USA Limited Warranty:  Two (2) years from the original date of purchaseWarranty Details
