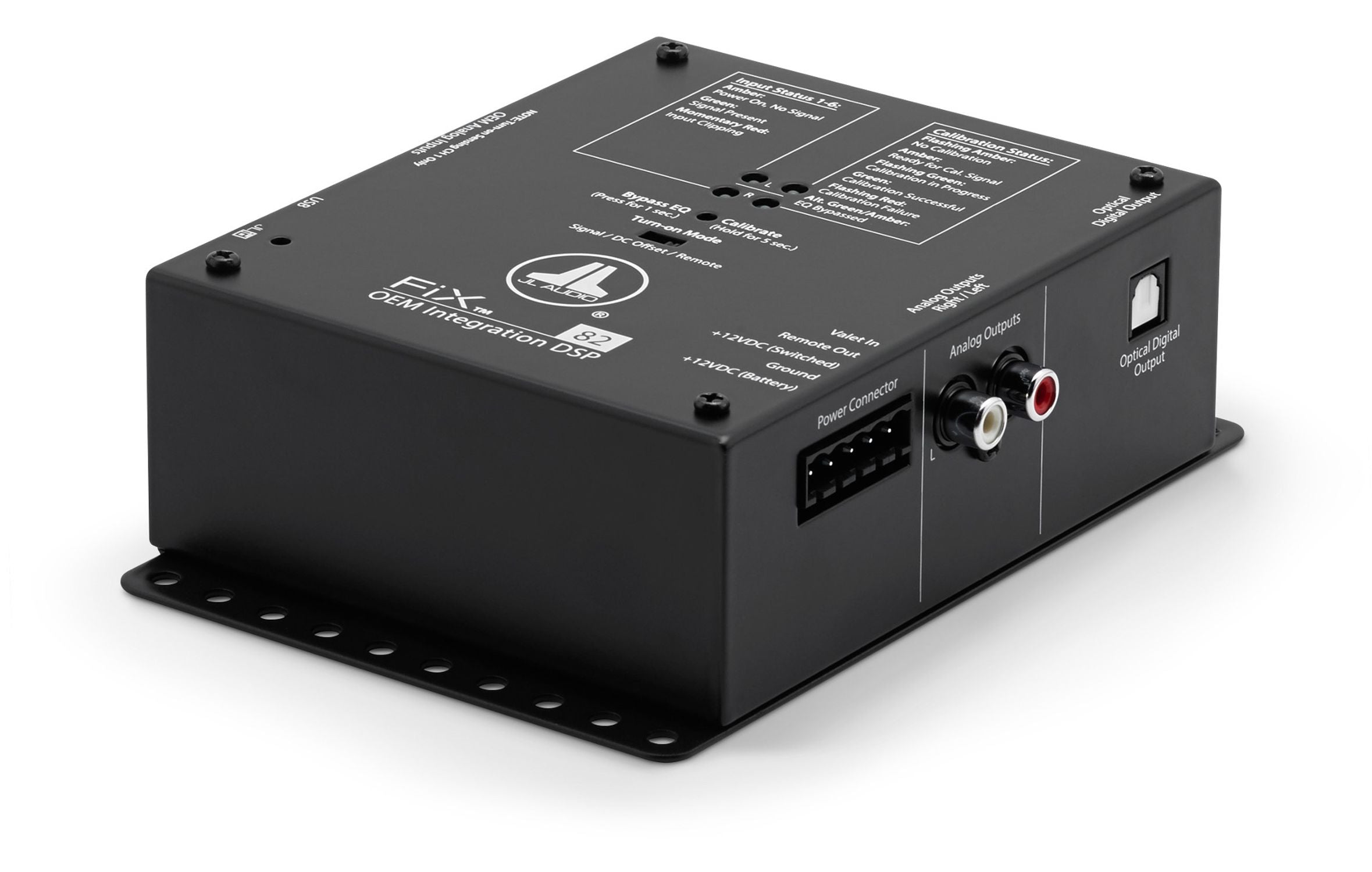

JL AUDIO FIX-82

OEM Integration DSP with Automatic Time Correction and Digital EQ. 8-ch. Inputs / 2-ch. Stereo RCA Outputs / 1 Digital Optical Output



The FiX® 82 is a state-of-the-art digital signal processor engineered to deliver world-class sound from factory audio systems, without replacing the OEM source unit. The FiX® 82 is the first DSP to automatically correct time delayed factory outputs prior to signal summing and EQ correction.

With a powerful 24-bit DSP processor and dual 1/3 octave equalizers onboard, complex 2-way, 3-way and 4-way factory audio outputs are combined and level-matched automatically into a flat, full-range stereo signal. Differential-balanced inputs accept virtually any OEM analog audio signal, from low-voltage, line-level to high-power, amplified speaker-level outputs (up to 30V RMS).

Calibration is initiated with just a single button press and takes only about 30 seconds to complete, with no special equipment needed!

By connecting a PC running TüN® Software via USB, you can also access a complete suite of diagnostic panels that show the frequency response of input signals, as well as the corrected outputs. Adjustments can be made to input polarity, muting, and filtering, and new calibrations can be initiated from the PC as well. By clicking on the “TUNE” tab of the TüN® interface, you can also access a pair of user-adjustable, 10-band, graphic equalizers to fine tune the output signals.

Output options include dual RCA jacks (4V RMS) or a digital optical (Toslink) output, supporting PCM audio (S/PDIF) at 24 bit/48 kHz resolution.

Activation methods include 12-volt or automatic (Signal/DC-Offset Sensing), plus a dedicated remote turn-on output for activating your aftermarket equipment.

Connect the optional DRC-100 Digital Remote Controller (sold separately) to add Master Volume Control capabilities from the driver’s seat. Clipped input signals and overall condition are also reported via the DRC-100's multi-color status LED.

Achieving great sound from your factory stereo has never been easier, or sounded better.

JLidâ„¢

Summary:
JLidâ„¢ is JL Audio's protocol for digital controllers and for communication of settings between devices (not for audio signals).

Detailed Information:
JLidâ„¢ offers two-way communication for a range of accessories, including the following:

    Wired System Controllers: DRC-100, DRC-200, DRC-205, M-DRC-50
    Networking Accessory: VXi-HUB, MVi-HUB
    Wireless Bluetooth® Communicator: VXi-BTC

JL Audio FiX® and TwK® processors each feature one JLid™ port, designed for connection of a wired controller.

JL Audio VXi and MVi amplifiers offer powerful networking capabilities via JLid™, to deliver single-point control of multiple amplifiers in a system. This allows the listener to adjust levels (Volume, Fader, Balance, Zone Level) and to easily select from multiple DSP presets, across an entire group of networked amplifiers. Each VXi amplifier is outfitted with separate JLid™ Control and JLid™ Comm ports. DSP equipped MVi amplifiers include a single JLid™ Comm port. Please refer to each product’s manual and our Help Center for details.

JLidâ„¢ connections are made via standard CAT-5e cables.



Download: Firmware Updates to connect with TüN® 2.0

Help Center Articles: FiX OEM Integration Processors



USA Limited Warranty:  Two (2) years from the original date of purchaseWarranty Details
