Kenwood's HD two-camera system
Kenwood doesn't want anyone to suffer with grainy video. Their DRV-A610WDP dual camera system offers superb video quality with HD recording capability for a clear image night or day. The cameras loop-record the road ahead (and the road behind), while its Wi-Fi connection makes it so easy to access and share your video files through your smartphone. The dash camera also comes with a 64GB microSD card for storage, along with adhesive mounts. Kenwood also gives you a vehicle charger for power.
What's behind you?
You can use this system's second 2K HD camera to record the interior of your vehicle or serve as a rear-view cam or cargo cam (not a backup cam) — it's IP67 rated for external use. Check out your dash cam and rear-view cam views on the dash cam's color 2" LCD screen as well as on your smartphone, using Kenwood's dash cam app.
G-sensor and GPS
Kenwood's built-in G-Sensor detects hard braking or a collision, then saves vital video files for a complete record of the event. Built-in GPS geo-tags your files with latitude, longitude, date, time, speed, and direction of travel for a more complete presentation.
Parking mode
This fully automated camera starts recording once the engine is turned on and stops when the engine is turned off. With Kenwood's optional hardwire solution (not included), this camera will wake up when your parked vehicle is disturbed to record what's in front of it — a great theft deterrent.
Product highlights:
- compact 4K HD dash cam with rear-view camera
- 2" full-color LCD display
- includes 26-foot power and video cable for rear-view cam
- also includes 64GB microSD card, vehicle power cables, dash cam mount, 2 brackets for rear cam
- built-in Wi-Fi for wireless sharing with mobile devices using Kenwood's dash cam app
- dash cam records video files up to 3840 x 2160p
- built-in GPS
- built-in G-sensor
More info:
- parking mode recording with CA-DR1030 hardwire kit (not included)
- built-in capacitor saves video files when power is interrupted
- accepts microSD cards up to 256GB
- recording resolution: 3840 x 2160 (front camera); 2560 x 1410 (rear-view)
- viewing angles: 113° horizontal x 60° vertical (dash cam); 105° horizontal x 57° vertical (rear cam)
- dimensions: 2.32"W x 1.70"H x 1.50"D (dash cam); 1.09"W x 1.48"H x 2.16"D (rear-view cam)
- warranty: 1 year
- MFR # DRV-A610WDP
- Item # 113DRVA610
What's in the box:
Kenwood DRV-A610WDP owner's manual
- The Kenwood DRV-A610WDP includes 2 separately boxed items:
- DRV-A610W:
- Dashboard camera
- USB Car charger
- 13' USB-A to USB-C cable
- Camera mount with adhesive base
- 2 Spare adhesive pads
- 4 Adhesive cable clips
- Static side film
- 64GB microSD card (installed in camera)
- Quickstart guide
- Warranty information
- KCA-R210:
- Rear camera with installed single joint bracket and attached 8' cable (terminated in an 8-pin connector)
- 18' Extension cable (8-pin connector on one end/ USB-C connector on other end)
- Double joint bracket
- Two 3M adhesive pads
- Four 3/8" screws
- Instruction manual
- Warranty information
Product Research
Features
Front & Rear View Recording: The Kenwood DRV-A610WDP includes two vehicle cameras - one to record in front of your vehicle and one to record behind your vehicle. When in Dual Camera Recording Mode, both cameras can be viewed and recorded simultaneously. The front camera provides 8.3 Megapixel (4K) recording, while the rear camera can provide up to 3.7 Megapixel (Wide Quad-HD) recording.

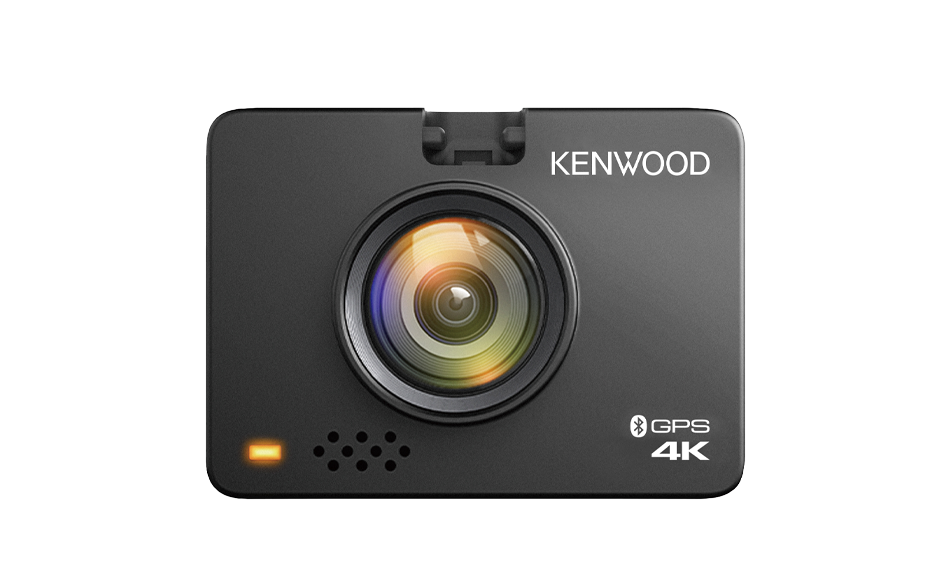

- DRV-A610W Dash Camera with 2" Color Display: The dash cam captures clear videos and photos while you drive and while you are stopped. It utilizes a 1/2.8" Sony Starvis image sensor with 8.3 million pixels for recording up to 3840 x 2160 (4K) video and features a F1.8 lens with a 135.6° diagonal field of view (FOV). The DRV-A610W Dash Cam also features a built-in 2" full-color TFT LCD monitor that lets you view either camera view or both simultaneously. Recorded video can also be played back and viewed on the dash cam screen.
- KCA-R210 Rear Camera: The rear camera provides a clear, wide-angle video image thanks to its 1/3" Galaxy Core image sensor and F2.0 lens with a 123.6° diagonal field of view (FOV). The rear camera an provide a 2560 x 1410 (Wide Quad-HD) resolution image.
HDR & WDR Technology: The Kenwood DRV-A610WDP utilizes HDR (High Dynamic Range) and WDR (Wide Dynamic Range) technology that easily records clear images in dark or well lit settings without underexposing or overexposing the image.
Selectable Camera Display: The DRV-A610WDP lets you select from three display options: Dual Cameras, Front Camera, and Rear Camera. In Dual mode, both camera views are simultaneously recorded, while Front and Rear modes will record just those camera views.
Built-in GPS: Using its built-in GPS receiver, the DRV-A610WDP can also display and record the time and GPS position (longitude and latitude) directly onto the recorded video and still image files. You can also have the travel speed stamped on a video file.
3 Video Recording Modes: The DRV-A610WDP offers 3 types of video recording modes - Manual, G-Sensor, and Parking/Motion Detection.
- Manual: Press the "Record" button and the unit will continuously record video in 1, 3, or 5 minute clips onto the inserted microSD card. The camera will automatically delete the oldest video files to make room for the most recent video clips (first recorded, first deleted), enabling the camera to continue recording even when the memory card is full.
- G-Sensor: If the built-in G-sensor of the DRV-A610WDP detects an impact incident (such as a collision while in motion or a bump while parked), that recorded video file is locked and stored in the "Protected" folder to prevent being overwritten and to provide later access to the video. The G-Sensors sensitivity can be set to Low, Medium, or High.
- Parking Mode & Motion Detection: When the vehicle is parked and turned off, parking mode becomes active once the unit does not detect any vibration for more than 5 minutes. If the vehicle is then subject to a collision or other physical impact, the camera powers on and automatically records 30 seconds of video. While in standby mode, the DRV-A610WDP can detect objects moving in front of the camera and will automatically record a 30 second video and will stop when no movement is detected.
Note: The Parking Mode and Motion Detection features require the optional Kenwood CA-DR1130 Hardwire Kit (sold separately), allowing the camera system to remain powered when the vehicle is off.
Video/Photo/Audio Recording: The Kenwood DRV-A610WDP is able to record video and capture still images.
- Videos: The DRV-A610WDP records in 3840 x 2160 4K @ 30fps (front camera) and 2560 x 1440 Full HD @ 30fps (rear camera). The front camera records in H.265/MP4 format while the rear camera records in H.264/MP4 format. Recorded video clip length can be set to 1, 3, or 5 minutes.
- Photos: In addition to recording HD video, the dash cam has the capability to capture 3840 x 2160 JPEG still images so that in the event of an accident, you can take photographs from inside the vehicle.
microSD Card Slot: The dashboard camera is outfitted with a microSD card slot for use with a microSD, microSDHC, or microSDXC memory card 8GB-256GB; Class 10 or higher (64GB microSD card included). Video, audio, and photos will be recorded onto your inserted microSD/SDHC/SDXC memory card in exFAT/FAT32. The storage on the microSD memory card will be split into three areas according to the type of recording - Protected, Video, and Photo. The unit will automatically delete the oldest non-protected files to create space for new videos and photos.
| microSD Card Size | Recording Time |
|---|---|
| 32GB | 120 minutes |
| 64GB | 240 minutes |
| 128GB | 480 minutes |
| 256GB | 960 minutes |
Kenwood Dash Cam Manager App: The DRV-A610WDP supports the Kenwood Dash Cam Manager app (for Apple iOS 15+ and Android 10+) over a wireless 2.4GHz WiFi connection (802.11n/WPA2). With the Kenwood Dash Cam Manager app, you can easily manage the DRV-A610WDP's menu settings and recorded videos from your compatible smartphone via a wireless WiFi connection.
- Review & Playback: You'll be able to review the video on your smartphone device with routing on Google Maps and driving information such as speed, G-sensor and trip distance. *The Kenwood Dash Cam Manager app does not support a live video feed.
- Copy, Edit & Share: You'll also be able to copy videos onto your smartphone for editing and sharing to social media apps.
- Settings & Firmware: In addition, you can adjust the dash cam's menu setting and update the firmware from your smartphone.
Kenwood Video Player Software: The Kenwood Video Player is a computer software application that lets you display video recorded with the DRV-A610WDP onto your Windows PC or Mac computer. It allows you to review and edit the DRV-A610WDP's recorded videos with your computer. Simply plug the dash cam into your computer using the included miniUSB-to-USB cable for display ("Read-Only") purposes. If you want to copy, delete, or edit files on your computer then remove the microSD card from the dashboard camera and use an external card-reader to connect to your computer. Your computer will need to meet the following system requirements -
- Windows OS: Microsoft Windows 10 & 11 (Microsoft Visual C++, and Direct X XAudio2 must be installed on a Windows 10 PC).
- Mac OS: Apple Mac OS X 12 (Monterey) or later
Note: The Kenwood Video Player software does not support live video feed playback; only previously recorded video will be played back.
Mounting Options: The dash cam mounts in the front of your vehicle to the inside of the front windshield, while the rear camera mounts in the rear of the vehicle to the inside of the rear windshield.
- Dash Cam: The dash camera can be installed in the inside of your windshield using the included self-adhesive mount. The bracket allows you to adjust the angle of the camera once its mounted. The adhesive mount slides into a slot on the camera, allowing you to quickly place and remove the dash cam from your vehicle.
-
Rear Cam: The rear camera includes two mounting brackets for installation on the inside or outside of your vehicle:
- Interior: a single-joint adhesive mounting bracket can be attached to the inside of the rear window for a rear exterior view of the vehicle. The camera can also be mounted facing inward for monitoring cargo or passengers.
- Exterior: a screw-down mounting bracket allows the camera to be installed on the exterior of the vehicle. Double joints on the bracket allow various angles and positions for the camera.
Note: Do not install this product in your vehicle if its location or use would obstruct the driver's clear view of the road or the operation of any vehicle airbag. It is also the driver's responsibility to know and comply with the laws, rules, and regulations of the driving location, including, for example, passenger privacy rights, and not to use the device in any location where its installation or use is prohibited.
Power Requirements: The dash camera is powered through the included USB car charger and 13' USB cable. The rear camera comes with a 26' cable that plugs into the dash cam for power. Once the DRV-A610WDP is connected to power, the cameras will automatically turn on and off when your vehicle is started and turned off. If power is lost, a built-in Super Capacitor prevents a recorded video file from being corrupted, as it provides enough power to allow the video file to close properly. The DRV-A610WDP supports 12V and 24V application. The optional Kenwood CA-DR1130 Hardwire Kit (sold separately) allows the camera to remain powered, even after the vehicle is off. This lets you take advantage of the Parking Mode and Motion Detection features.
Camera Dimensions:
- Dash Cam: 2.32" (w) x 1.70" (h) x 1.50" (d)
- Rear Cam: 1.09" (w) x 1.48" (h) x 2.16" (d)
