Kenwood DRV-A510WDP

Features

Front & Rear View Recording: The Kenwood DRV-A510WDP includes two vehicle cameras - one to record in front of your vehicle and one to record behind your vehicle. When in Dual Camera Recording Mode, both cameras can be viewed and recorded simultaneously. The front camera provides 3.7 Megapixel recording, while the rear camera can provide up to 2 Megapixel (full HD) recording.

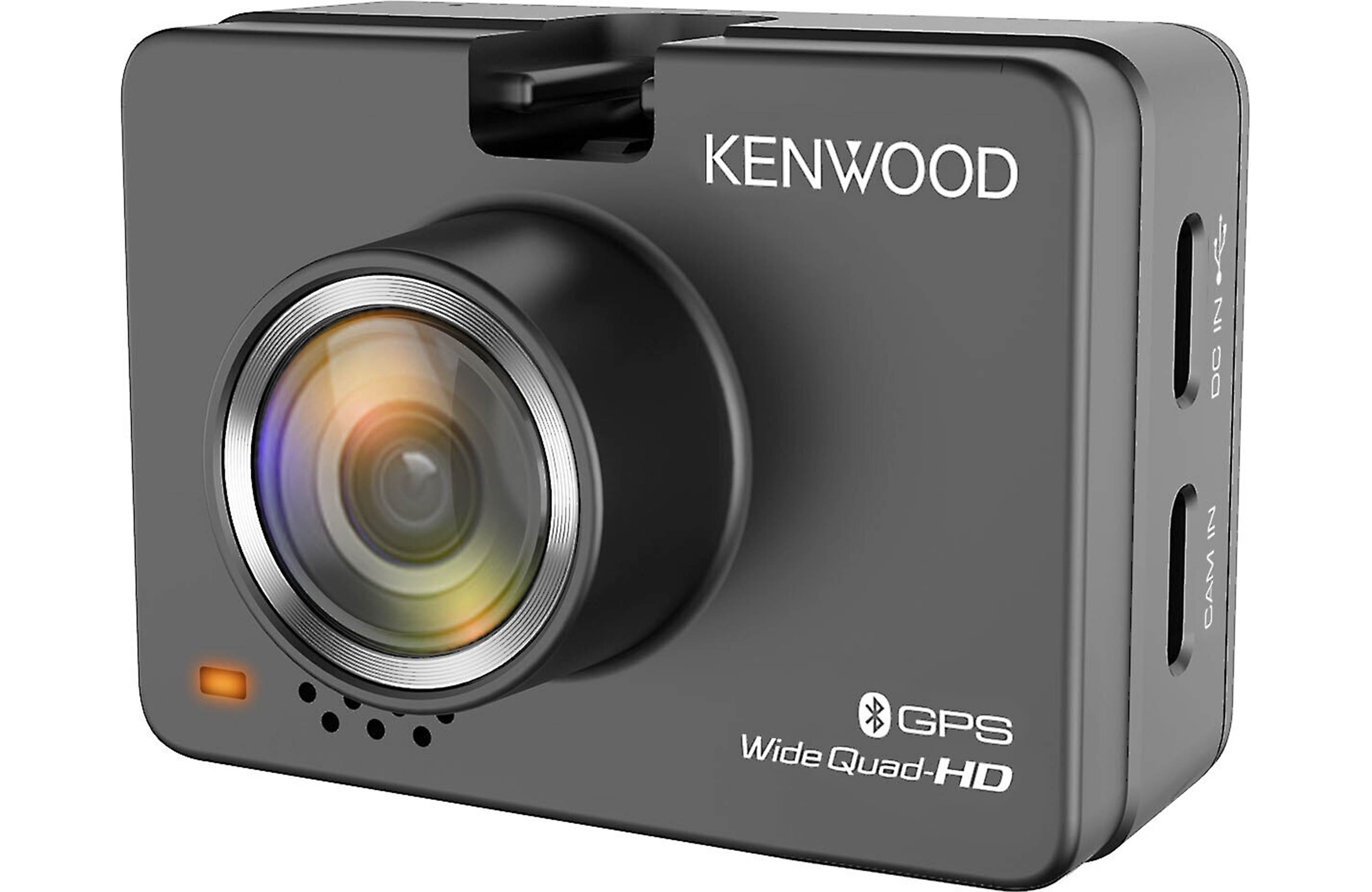

• DRV-A510W Dash Camera with 2" Color Display: The dash cam captures clear videos and photos while you drive and while you are stopped. It utilizes a 1/2.8" Sony Starvis image sensor with 3.7 million pixels for recording up to 2560 x 1440 Quad HD video and features a F1.8 lens with a 136° diagonal field of view (FOV). The DRV-A510W Dash Cam also features a built-in 2" full-color TFT LCD monitor that lets you view either camera view or both simultaneously. Recorded video can also be played back and viewed on the dash cam screen.
• KCA-R110 Rear Camera: The rear camera provides a clear, wide-angle video image thanks to its 1/2.9" Galaxy Core image sensor and F2.0 lens with a 131.6° diagonal field of view (FOV). The rear camera can provide a 1920 x 1080 (full HD) resolution image.

HDR & WDR Technology: The Kenwood DRV-A510WDP utilizes HDR (High Dynamic Range) and WDR (Wide Dynamic Range) technology that easily records clear images in dark or well lit settings without underexposing or overexposing the image.

Selectable Camera Display: The DRV-A510WDP lets you select from three display options: Dual Cameras, Front Camera, and Rear Camera. In Dual mode, both camera views are simultaneously recorded, while Front and Rear modes will record just those camera views.

Built-in GPS: Using its built-in GPS receiver, the DRV-A510WDP can also display and record the time and GPS position (longitude and latitude) directly onto the recorded video and still image files. You can also have the travel speed stamped on a video file.

3 Video Recording Modes: The DRV-A510WDP offers 3 types of video recording modes - Manual, G-Sensor, and Parking/Motion Detection.

• Manual: Press the "Record" button and the unit will continuously record video in 1, 3, or 5 minute clips onto the inserted microSD card. The camera will automatically delete the oldest video files to make room for the most recent video clips (first recorded, first deleted), enabling the camera to continue recording even when the memory card is full.
• G-Sensor: If the built-in G-sensor of the DRV-A510WDP detects an impact incident (such as a collision while in motion or a bump while parked), that recorded video file is locked and stored in the "Protected" folder to prevent being overwritten and to provide later access to the video. The G-Sensors sensitivity can be set to Low, Medium, or High.
• Parking Mode & Motion Detection: When the vehicle is parked and turned off, parking mode becomes active once the unit does not detect any vibration for more than 5 minutes. If the vehicle is then subject to a collision or other physical impact, the camera powers on and automatically records 30 seconds of video. While in standby mode, the DRV-A510WDP can detect objects moving in front of the camera and will automatically record a 30 second video and will stop when no movement is detected.

Video/Photo/Audio Recording: The Kenwood DRV-A510WDP is able to record video and capture still images.

• Videos: The DRV-A510WDP records in 2560 x 1440 Quad HD @ 30fps (front camera) and 1920 x 1080 Full HD @ 30fps (rear camera). Both cameras record in H.265/MP4 format. Recorded video clip length can be set to 1, 3, or 5 minutes.
• Photos: In addition to recording HD video, the dash cam has the capability to capture 2560 x 1440 JPEG still images so that in the event of an accident, you can take photographs from inside the vehicle.

microSD Card Slot: The dashboard camera is outfitted with a microSD card slot for use with a microSD, microSDHC, or microSDXC memory card (sold separately, see Accessories) 8GB-256GB; Class 10 or higher. Video, audio, and photos will be recorded onto your inserted microSD/SDHC/SDXC memory card in exFAT/FAT32. The storage on the microSD memory card will be split into three areas according to the type of recording - Protected, Video, and Photo. The unit will automatically delete the oldest non-protected files to create space for new videos and photos.

Kenwood Dash Cam Manager App: The DRV-A510WDP supports the Kenwood Dash Cam Manager app (for Apple iOS 15+ and Android 10+) over a wireless 2.4GHz WiFi connection (802.11n/WPA2). With the Kenwood Dash Cam Manager app, you can easily manage the DRV-A510WDP's menu settings and recorded videos from your compatible smartphone via a wireless WiFi connection.

• Review & Playback: You'll be able to review the video on your smartphone device with routing on Google Maps and driving information such as speed, G-sensor and trip distance. *The Kenwood Dash Cam Manager app does not support a live video feed.
• Copy, Edit & Share: You'll also be able to copy videos onto your smartphone for editing and sharing to social media apps.
• Settings & Firmware: In addition, you can adjust the dash cam's menu setting and update the firmware from your smartphone.

Kenwood Video Player Software: The Kenwood Video Player is a computer software application that lets you display video recorded with the DRV-A510WDP onto your Windows PC or Mac computer. It allows you to review and edit the DRV-A510WDP's recorded videos with your computer. Simply plug the dash cam into your computer using the included miniUSB-to-USB cable for display ("Read-Only") purposes. If you want to copy, delete, or edit files on your computer then remove the microSD card from the dashboard camera and use an external card-reader to connect to your computer. Your computer will need to meet the following system requirements -

• Windows OS: Microsoft Windows 10 & 11 (Microsoft Visual C++, and Direct X XAudio2 must be installed on a Windows 10 PC).
• Mac OS: Apple Mac OS X 12 (Monterey) or later

Mounting Options: The dash cam mounts in the front of your vehicle to the inside of the front windshield, while the rear camera mounts in the rear of the vehicle to the inside of the rear windshield.

• Dash Cam: The dash camera can be installed in the inside of your windshield using the included self-adhesive mount. The bracket allows you to adjust the angle of the camera once its mounted. The adhesive mount slides into a slot on the camera, allowing you to quickly place and remove the dash cam from your vehicle.
• Rear Cam: The rear camera includes two mounting brackets for installation on the inside or outside of your vehicle:
  • Interior: a single-joint adhesive mounting bracket can be attached to the inside of the rear window for a rear exterior view of the vehicle. The camera can also be mounted facing inward for monitoring cargo or passengers.
  • Exterior: a screw-down mounting bracket allows the camera to be installed on the exterior of the vehicle. Double joints on the bracket allow various angles and positions for the camera.

Power Requirements: The dash camera is powered through the included USB car charger and 13' USB cable. The rear camera comes with a 26' cable that plugs into the dash cam for power. Once the DRV-A510WDP is connected to power, the cameras will automatically turn on and off when your vehicle is started and turned off. If power is lost, a built-in Super Capacitor prevents a recorded video file from being corrupted, as it provides enough power to allow the video file to close properly. The DRV-A510WDP supports 12V and 24V application. The optional Kenwood CA-DR1130 Hardwire Kit (sold separately) allows the camera to remain powered, even after the vehicle is off. This lets you take advantage of the Parking Mode and Motion Detection features.

Camera Dimensions:

• Dash Cam: 2.32" (w) x 1.70" (h) x 1.50" (d)
• Rear Cam: 1.09" (w) x 1.48" (h) x 2.16" (d)
