Pioneer DMH-WT8600NEX

Floating Display Design
Touchscreen / Alexa / App / Remote Control
iPhone / Android Integration
Bluetooth Phone / Audio / Siri
HD / SiriusXM / Apple Radio
USB / HDMI / Aux Inputs
Video Out / Camera Inputs / iDatalink
Amp / EQ / DSP Section

Floating Display Design

Two-Piece Configuration The Pioneer DMH-WT8600NEX digital multimedia receiver features a two-piece floating display configuration with an external 10.1" capacitive touchscreen monitor and a separate single-DIN (2") source unit. Separating the large touchscreen monitor from the chassis allows the DMH-WT8600NEX to be installed in a standard single-DIN (2") dash opening.

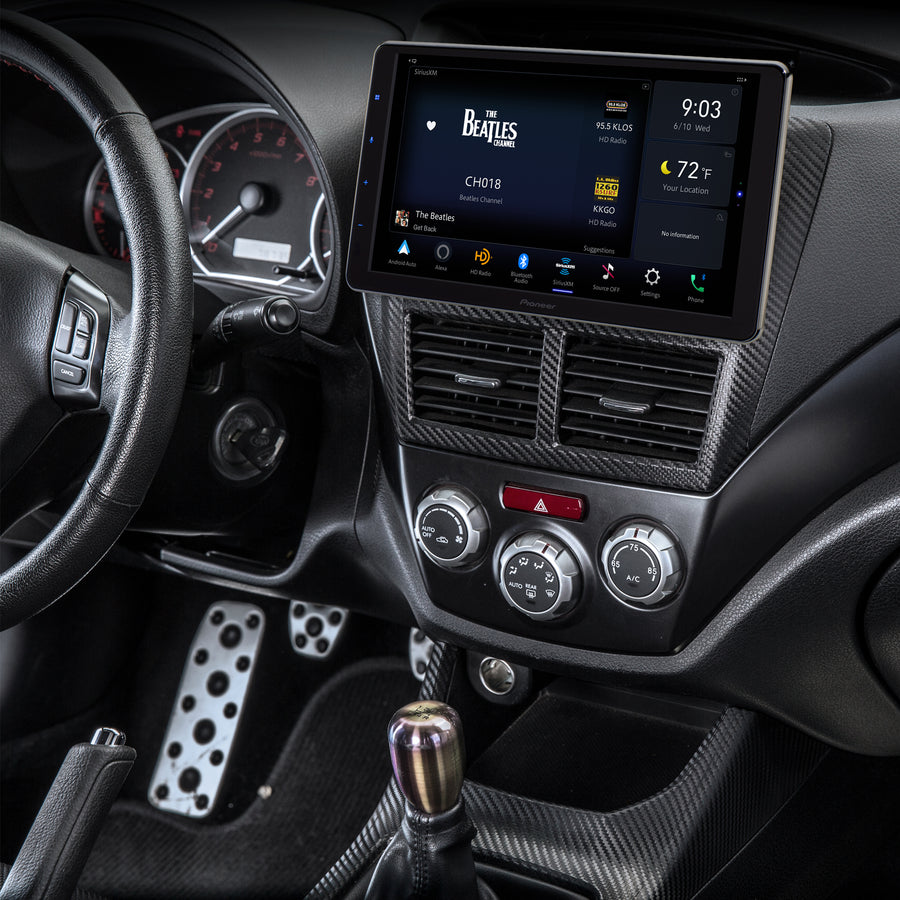

Floating Touchscreen Monitor: Depending on your vehicle's factory radio location and the location of other factory equipment, you may need to adjust the mounting position of the touchscreen monitor in order to prevent impairment of vehicle driving operations. The floating touchscreen monitor offers horizontal, vertical and tilt adjustability to ensure the best fit and usability in your vehicle's dash.

• Up/Down: The touchscreen monitor can be adjusted vertically (up or down) to prevent interference with climate controls, vents, and other factory equipment. It offers 5 patterns of vertical adjustment (up to 2.375" or 60mm) in 0.5625" or 15mm steps.
• Left/Right: The touchscreen monitor can also be moved horizontally (left or right) to prevent interference with climate control, vents, and other factory equipment. It offers 3 patterns - Left 1.1875" (30mm), Centered (default), or Right 1.1875" (30mm).
• Forward/Back: In addition, the touchscreen monitor can be adjusted back and forth to allow more or less space between the monitor and the dash kit for a better fit. You can choose from 2 patterns - Back (Flush) or Forward (0.75" or 20mm)
• Tilt Angle: You can even adjust the angle of touchscreen monitor for better usability and visibility. In addition to its vertical 90 degree angle (default), the monitor can be adjusted 15 degrees back or 60 degrees forward.

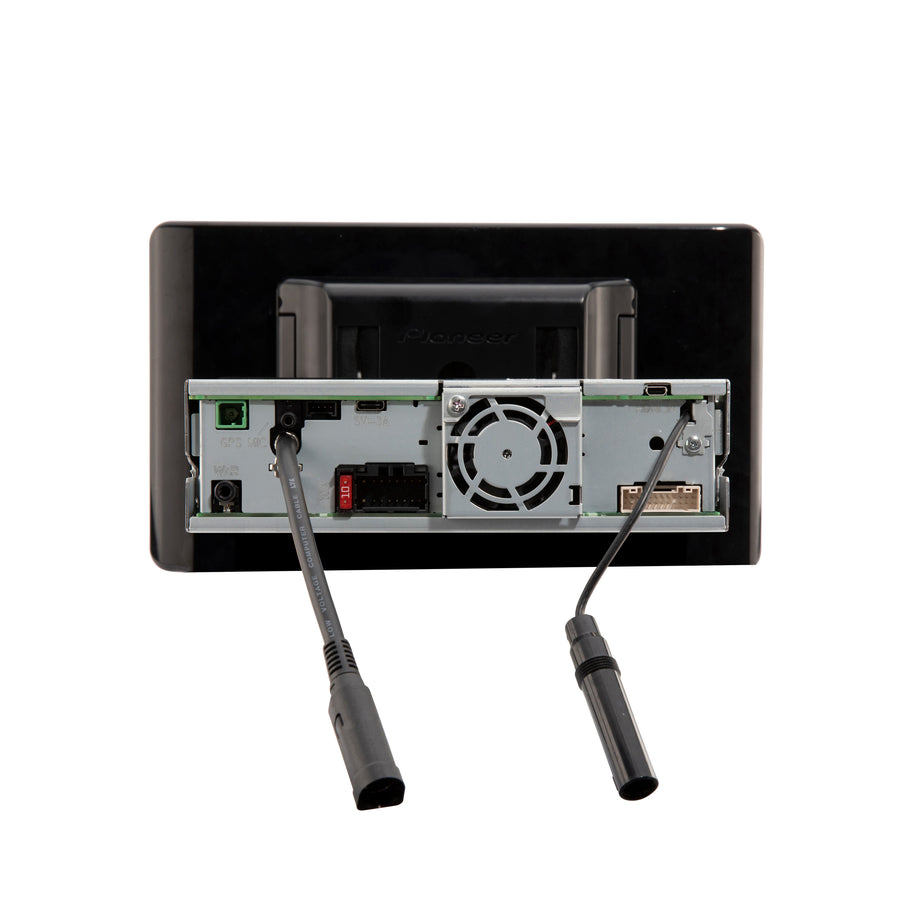

Single-DIN Source Unit: The included source unit fits in a standard 2" single-DIN opening (applicable kit, harness, etc. will be required and sold separately for your vehicle). Once the source unit is mounted in the dash, the 10.1" touchscreen monitor attaches and connects to the front of the source unit using the included hardware and integrated proprietary cable. All of the Pioneer DMH-WT8600NEX's inputs and outputs are found on the rear-panel of the source unit.

Source Unit Dimensions: Chassis body dimensions include wire and cable connections.

• Chassis:
  • Width: 7.025"
  • Height: 1.975"
  • Depth: 7.455" (with wired USB connection) / 6.565" (with wireless WiFi connection)
• Nose:
  • Width: 6.695"
  • Height: 1.815"
  • Depth: 0.295"

Touchscreen Monitor Dimensions: Touchscreen monitor dimensions include mounting bracket.

• Width: 10.105"
• Height: 5.755"
• Depth: 1.885"

Touchcreen / Alexa / App / Remote Control

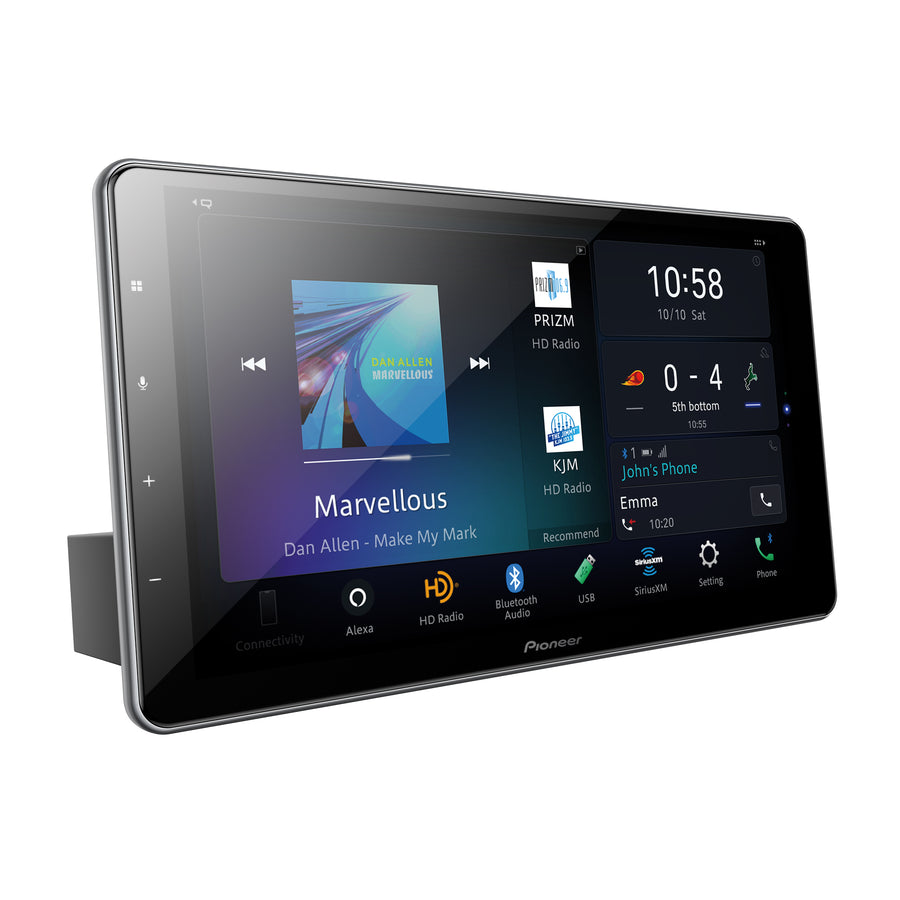

10.1" Capacitive Touchscreen: The Pioneer DMH-WT8600NEX features a 10.1" capacitive LCD touchscreen display with a resolution of 1280 x 720 (RGB), for a total of 2,764,800 pixels. The capacitive LCD touchscreen is highly responsive, powerful, and very intuitive for exceptional control. The capacitive touchscreen offers multi-touch gestures like pinch-to-zoom, plus simple swipe & scroll controls - similar to your smartphone's touchscreen interface. The touchscreen display allows you to control this unit and a connected component such as an iPhone, Android smartphone, Bluetooth phone, or USB mass storage class device. Menus appear on screen for making function choices, audio adjustments, and setting up the system. A shatterproof film has been applied to the unit's LCD touchscreen for added durability.

• Favorites: You can register the desired menu items on the DMH-WT8600NEX 's "Favorites" menu screen. Registering your favorite menu items allows you to quickly jump to the registered menu item by a simple touch on the favorites menu. Up to 12 menu items can be registered as a "Favorite".
• OSD + Backgrounds: The color of the on-screen display can be set to red, amber, green, blue or white. The background display can be selected from 8 different preset displays for the AV Operation screen and 3 different preset displays for the Home Menu screen. In addition, you can change the background display of Home Screen to other images imported from an external USB device.
• Picture Adjustments: You can store numerous video settings for the head unit's video sources and rear-view camera; including brightness (adjusts the black intensity), contrast (adjusts contrast), color (adjusts color saturation), hue, (adjusts color tone), temperature (adjust the color temperature), and Dimmer (adjusts brightness).
• Dimmer: The receiver's touchscreen display & button illumination can be dimmed manually, automatically or via a timer. You can set the unit's LCD touchscreen & button illumination to automatically dim when your vehicle's headlights are turned on (this function requires that the orange/white illumination wire in the wiring harness is connected to the vehicle's headlight circuit). You can also set a specific time and duration for unit's LCD & button illumination to dim.

Voice Control with Alexa Built-In: The DMH-WT8600NEX digital multimedia receiver offers Amazon Alexa Built-in through a wireless WiFi connection to your smartphone, your smartphone's active data cellular plan, and the Amazon Alexa app (for Apple iOS 11.0+ and Android OS 5.0+). With Alexa, you can talk to Amazon Alexa directly through the Pioneer DMH-WT8600NEX receiver while keeping your eyes on the road and hands on the wheel. Ask Alexa to control the Pioneer receiver, play music, hear the news, check the weather, control smart home devices, and more. In addition to audible feedback, you'll also receive visual feedback for music apps and weather forecasts. Using Alexa with the Pioneer DMH-WT8600NEX is simple and hands-free; just say the "Alexa" wake-word or press the "Mic" button to ask your question and Alexa will respond instantly. Alexa lives in the cloud, so it's always getting smarter, adding new capabilities that are delivered to compatible devices automatically.

• Head Unit Controls: You can enable the Pioneer In-Dash Receiver Skill so you can stay focused on the road while operating your in-dash receiver using Amazon Alexa voice commands. Click here for a list of specific commands.

  • Playback Selection: You'll be able to ask Alexa to switch source inputs (Bluetooth, USB, HDMI) and radio presets. However, Alexa does not provide playback control of these sources.
  • Adjust Sound Settings: You can ask Alexa to raise or lower the volume, adjust the bass level, or set a specific EQ preset (such as Super Bass). Alexa cannot control all audio settings and functions of the Pioneer receiver.
  • Switch Screens & Power Off: You can ask Alexa to go to the Home Screen or Weather Info Screen. You can also ask Alexa to power off the head unit. Alexa cannot be used to power on the head unit.
• Alexa Skills: The Pioneer DMH-WT8600NEX offers many of the same voice controls that you are used to from your Alexa-enabled smart speakers in your home.
  • Music & Audiobooks: You can ask Alexa to select, play, and control your favorite music from Amazon Music, Pandora, iHeartRadio, TuneIn, Spotify, and SiriusXM. You can also listen to audiobooks from Audible. You'll hear music over your vehicle speakers, while artist/song/album text and album art are displayed on the Pioneer receiver's touchscreen monitor. The Pioneer receiver may not support all of Amazon Alexa compatible music services.
  • Phone Calls: Alexa allows you to use voice commands to place or answer calls using a mobile device paired to this unit. Ask Alexa to call a contact or place of business. Access to your phone and contacts must be enabled within the Alexa app. The receiver will display phone number and contact name during phone call. Your Apple iPhone or Android smartphone will also need to be connected via Bluetooth to the Pioneer receiver.
  • Traffic & Parking: You'll be able to ask Alexa for traffic information, as well as available parking and receive audible feedback (no visual display).
  • Weather, News, & Sports: Check weather reports, news updates, and sport scores using Amazon Alexa and your voice. The unit will provide audible feedback for weather, news, and sports; plus a visual display of a 7-day weather forecast.
  • Smarthome Control: Use Amazon Alexa and your voice to control compatible smarthome devices, such as garage door openers and outdoor lighting.
  • Questions & Answers: Amazon Alexa lets you ask questions about general things and check Wikipedia. You'll receive audible feedback only (no visual display).
  • Times & Alarms: Use your voice and Amazon Alexa, you can set timers and alarms. You'll receive audible feedback (no visual display).
  • Notifications: When you receive notifications from Amazon Alexa, a yellow visual indicator is displayed. To check and listen to your notifications, ask "Alexa, what are my notifications?".

  Notes:

  • Wake words other than "Alexa" - such as "Echo", "Amazon", or "Computer" are not supported
  • The Alexa Built-In feature does not support control and display of video and navigation apps.
  • The Alexa Built-In feature does not control CarPlay or Android Auto.
  • Pioneer does not guarantee Amazon Alexa voice control for all head unit functions and Amazon Alexa features

CarAVAssist App: CarAVAssist App (for Apple iOS 12.0+ and Android OS 6.0+) supports web browsing, home screen customization and other functions. You can bookmark websites that you want to enjoy in your car, register your favorite sports teams to receive real-time game updates, make notifications settings for your smartphone, and more. The app also allows you to customize your receiver's home screen, including adding your own background image, and easily performing OTA Firmware Updates

• Customize the receiver's home menu screen - including widgets and wallpaper (background)
• Register your favorite webpage URLs (including YouTube, Facebook, and more) in the app to see those webpages (including video) on the receiver's web touchscreen monitor. The web browser cannot be used while the vehicle is in motion. Your vehicle must be stopped with the parking brake engaged (requires the light green wire of the receiver's wiring harness to be connected to your vehicle's parking brake detection circuit). The head unit's touchscreen will display a "Caution" message, if you try to use the web browser when your vehicle is in motion. Pioneer does not guarantee compatibility with all URLs.
• Register your favorite sports teams to receive information and score about them through the Pioneer receiver. To use the sports notification function, make sure that the included GPS antenna is installed properly.
• Organizing notifications on your Apple iPhone or Android smartphone for displaying on the Pioneer receiver's touchscreen monitor.
• Download the latest firmware & software updates for this unit using the CarAVAssist app.

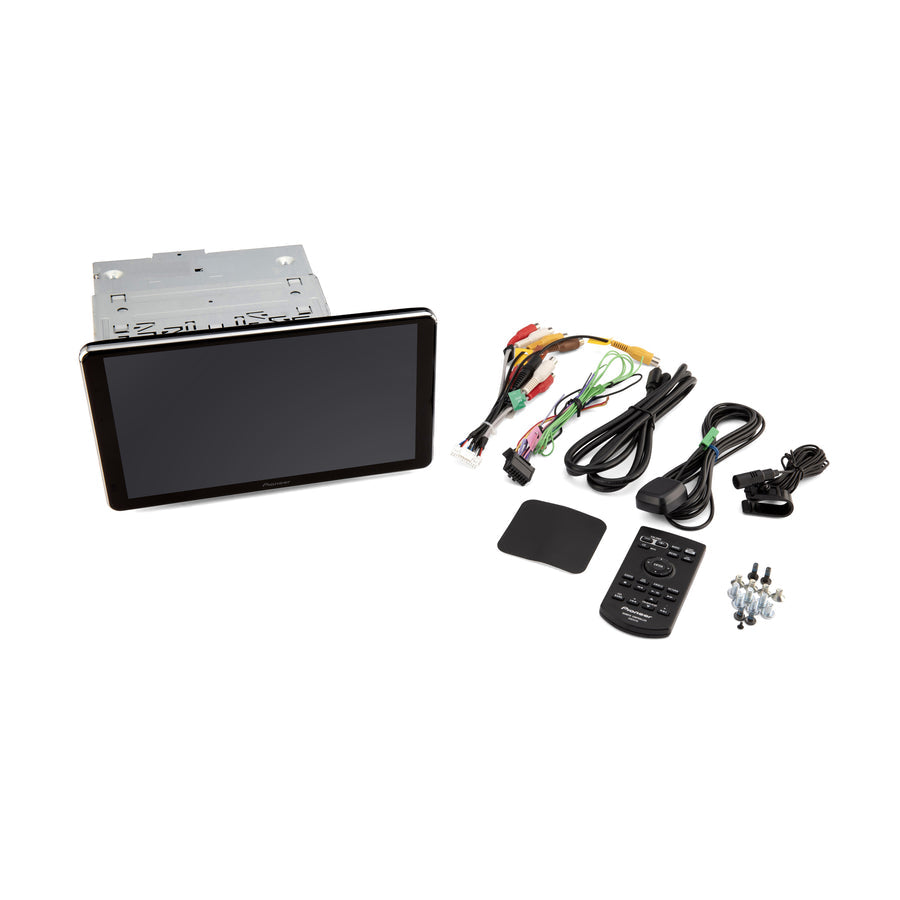

Remote Functions: The Pioneer DMH-WT8600NEX receiver comes with an IR wireless remote control, plus support for factory steering wheel control (adapter sold separately).

• Wireless Remote Control: The Pioneer DMH-WT8600NEX includes an IR remote control for wireless operation of the multimedia head unit and your connected devices.
• Steering Wheel Remote Compatibility: The head unit features an OEM steering wheel remote control input on the rear of the unit that lets you keep your vehicle's factory radio steering wheel remote controls when used with an optional steering wheel audio control adapter (sold separately).

Front-Panel Controls w/ Custom Illumination: In addition to the touchscreen controls, the unit includes frequently used capacitive touch buttons along the left edge of the screen. The color of the button illumination can be set to red, amber, green, blue, white, or scan (constantly cycling through the color spectrum). You can also create a custom color to match your vehicle's interior lighting (112 colors to choose from).

iPhone / Android Integration

Built-In WiFi: The Pioneer DMH-WT8600NEX features built-in WiFi wireless connectivity specifically designed to support a cable free connection between your Apple iPhone or Android smartphone and the receiver. By supporting Apple CarPlay and Android Auto, plus Alexa Built-In and the CarAVAssist app via a wireless connection, you no longer need to worry about taking your smartphone out of your bag or your pocket before you get into your car.

• GPS Antenna: Before using CarPlay or Android Auto, make sure the included GPS antenna and vehicle speed sensing (VSS) wire are properly connected. The GPS antenna is required for Android Auto and Apple CarPlay navigation maps (including Google Maps, Apple Maps, and Waze); as well as the sports team notification feature of the CarAVAssist app and certain Alexa voice commands. The GPS antenna comes with a self-stick pad which mounts it on top of your dash inside the vehicle.
• Data Plan Required: Your iPhone or Android smartphone will need an active Data Plan account with connection to the Internet via 3G, EDGE, or LTE (4G) for CarPlay and Android Auto to function. Access to CarPlay, Android Auto, Alexa, and CarAVAssist online app services will depend on the availability of a cellular network for purposes of allowing your iPhone or Android smartphone to connect to the Internet. App services may not be available in all regions.

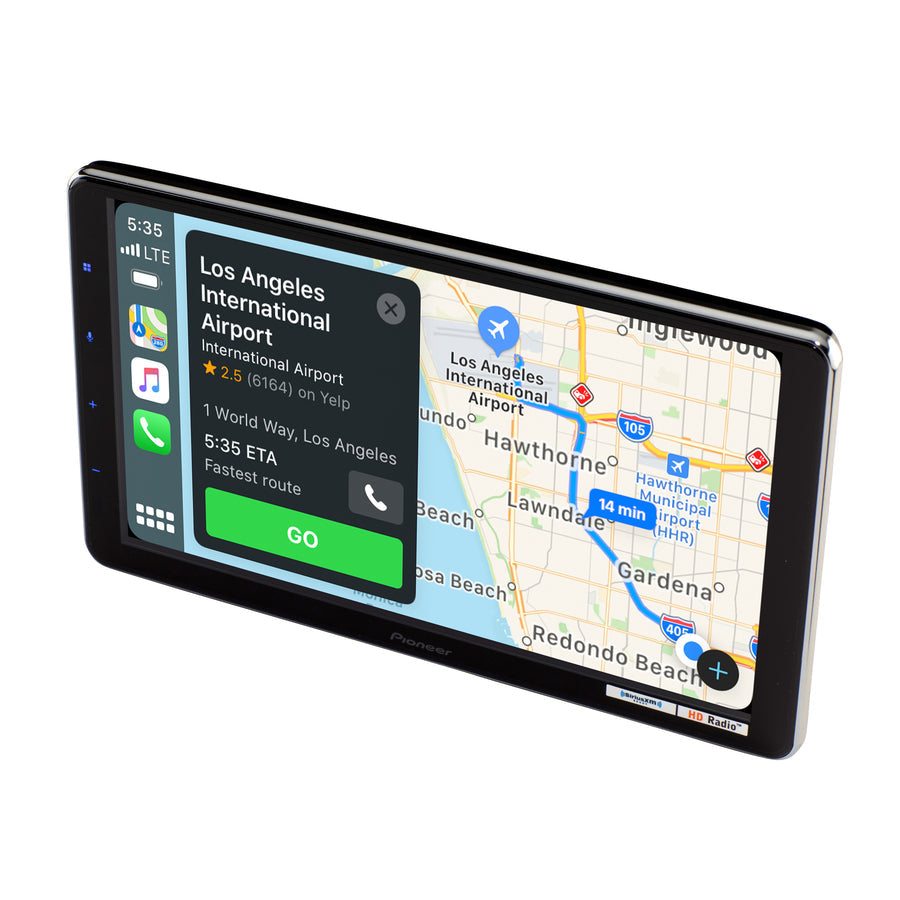

Wireless Apple CarPlay: The Pioneer DMH-WT8600NEX features Apple CarPlay, the smarter and safer way to use your iPhone 5S or newer (iOS 7.1+) in the car. The Pioneer DMH-WT8600NEX supports Apple CarPlay through a wireless connection using WiFi and Bluetooth (both connections must be made) or a hardwired USB connection using its rear-panel USB-C port, the supplied USB extension cable, and included USB-C to USB-A adapter. Apple CarPlay gives iPhone users an incredibly intuitive way to make calls, use Maps, listen to music, access messages, and even control Apple HomeKit compatible devices through Siri voice recognition and the Pioneer receiver's touchscreen monitor.

• Maps: Apple CarPlay brings the power and simplicity of Apple Maps to your dashboard; complete with turn-by-turn direction, traffic conditions, and estimated travel time. You can enter a new destination or choose a favorite or recent destination using the head unit's touchscreen or by simply asking Siri. CarPlay can also predict where you most likely want to go using addresses from your email, text messages, contacts, and calendars. You can even listen to music from your Apple CarPlay device or other connected source device while using Apple Maps. If you have iOS 12.0 or newer on your iPhone with the latest version of Google Maps or Waze, you can choose to navigate via Google Maps or Waze instead of CarPlay. Google Maps and Waze do not support Siri voice control, but will have their own proprietary voice control function which has to be accessed through a touchscreen icon on the receiver.
• Phone & Messages: Via Apple CarPlay, you'll be able to make calls, return missed calls, and listen to voicemails through the Pioneer head receiver. Siri can also help you do all these things. In addition, Siri can send, read, and reply to your text messages for you; so you never have to look at your iPhone while driving.
• Music Library: Through Apple CarPlay, you can access your favorite artists, songs, and playlists from Apple Music on your iPhone using the Pioneer head unit's touchscreen. Or, just tell Siri what you'd like to listen to. The head unit's touchscreen will display song/artist information, as well as album art in the background.
• Apps: CarPlay also supports additional audio apps that you've downloaded to your iPhone for enjoying music, radio, sports, news, podcasts, & audiobooks (subscriptions and fees may apply). Control these apps from the head unit's touchscreen just like you would from your iPhone. Current supported apps include:
  • Music & Radio: Amazon Music, Tidal, Pandora, Spotify, iHeart Radio, TuneIn Radio, SiriusXM, Slacker Radio, & more.
  • News, Sports & Podcasts: Stitcher, MLB.com At Bat, NBA, CBS Radio News, NPR One, OverCast, & more.
  • Audio Books: Audiobooks.com & Audible
• Apple HomeKit Compatible: CarPlay now supports control of Apple HomeKit enabled devices (sold separately) through Siri. Using CarPlay in your vehicle, you can ask Siri to close or open your garage door, turn on or off home lighting, increase or decrease the temperature of your thermostat, as well as control select functions of other Apple HomeKit enabled devices and appliances. Click here for a list of compatible Apple HomeKit products.

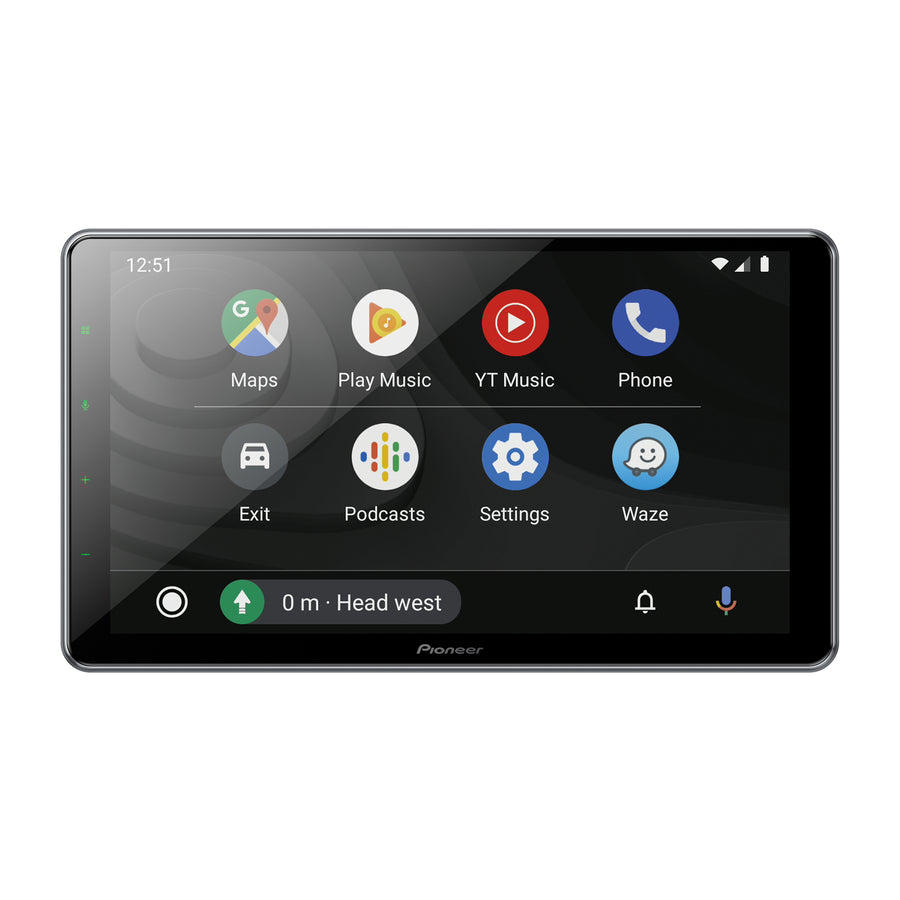

Wireless Android Auto: The Pioneer receiver supports the Android Auto app for select Android smartphones using a wired or wireless connection. A Google or Samsung smartphone with Android OS 10.0+ or any smartphone with Android OS 11.0+ and 5GHz WiFi can utilize Android Auto Wireless with the Pioneer receiver using the latest version of the Android Auto app, plus a WiFi and Bluetooth connection (both wireless connections must be made; a wired USB connection must be made initially between the Android phone and the Pioneer receiver to setup Wireless Android Auto). Android smartphones running Oreo 8.0 or newer can also be connected to the Pioneer receiver's USB-C port using the included USB extension cable and USB cable that came with your smartphone, plus be paired via Bluetooth. Android Auto extends the Android platform into your car in a way that's purpose-built for driving and automatically brings you useful information and organizes it into one simple on-screen interface. It's designed to minimize distraction so you can stay focused on the road ahead. Features of Android Auto include -

• Google Assistant: The Pioneer receiver enhances your Android Auto experience even more by incorporating Google Assistant using the head unit's external microphone and your car speakers for voice command and text-to-speech, which makes using Android Auto and all of its integrated applications fast, easy, and safe. You will need to press the "mic" button or say "OK Google" to activate the Google Assistant. Use the Google Assistant to make a call, send a message, reply to a message, get driving directions, listen to music, or even control select Google Assistant smarthome enabled devices.
• Google & Waze Maps: Use Google Maps to get where you're going with on-screen maps, voice-guided navigation, live traffic information, lane guidance, and more. Select your destination by using the head unit's touchscreen or just say where you want to go through the unit's external mic and Google Speech Technology. You can even listen to music from your Android Auto device or other connected source device while using Google Maps. If you prefer, you can switch over to a simpler version of the community-based Waze navigation app (version 4.27 or higher).
• Phone & SMS: With Android Auto you get access to your contacts and messages through the Pioneer receiver while keeping your eyes on the road. Use the unit's external mic and Google Speech Technology to make a phone call, or have your text-messages read aloud to you while you concentrate on the road ahead; you can even reply to texts via voice command.
• Music: Access your Android smartphone's music library through the Pioneer receiver via YouTube Music. You'll be able to browse music like you do on your smartphone with song/artist information display and album art. Use the receiver's touchscreen to select songs or just say what song you want to listen to through the head unit's external mic and Google Speech Technology. You also get access to online music and radio stations from Amazon Music, Tidal, Pandora, Spotify, iHeart Radio, SiriusXM, Slacker Radio, Tune-In, and more; as well as news, sports and talk radio apps. Music apps include song and station browsing, plus song/artist information and album art or station logo. Click here for a list of all compatible apps for Android Auto.

Android MTP Compatible: If you have an Android smartphone that isn't compatible with Android Auto, the Pioneer receiver also supports MTP for playback & control of stored music files on your Android (OS 4.0+) device through the Pioneer receiver's USB-C port and included USB extension cable (the supplied USB-C to USB-A adapter may be required). In this mode, you get basic playback control (like Play/Pause & Previous/Next Track), plus song/artist information on the receiver's LCD screen. During MTP connection, you cannot use your Android smartphone's touchscreen to control music playback and you cannot select music apps from your smartphone for playback. However, you can continue to listen to stored music on your Android smartphone through the head unit while you check your Calendar, Facebook, Texts, etc. on your phone.

iPod Direct Connect: If you don't desire Apple CarPlay, you can simply connect your Apple iPhone 5S and newer via USB for music playback only through the Pioneer DMH-WT8600NEX. The Pioneer DMH-WT8600NEX's USB-C port, included USB extension cable, and supplied USB-C to USB-A adapter can be used to connect your Apple iPhone 5S and newer to the head unit. The USB connection allows for audio playback, music navigation, information display (including album art), and charging of your compatible iPhone or iPod.

• Control: From the head unit's touchscreen, you can search your iPod/iPhone's audio content by Radio, Playlist, Artist, Album, Song, Podcast, Genre, Composer, or Audiobook. Once you have selected a category, you can search each category alphabetically (A-Z). You can also select Random & Repeat functions for a certain song or specific folder. You'll still be able to control your iPod or iPhone from the device's touchscreen too.
• Display: In addition, the head unit will display your iPod/iPhone's stored music information including Elapsed playing time, Artist name, Song & Album title, as well as Album Art.

Smartphone Charging: The head unit's USB-C connection provides 3A of current to power and charge your connected Apple iPhone or Android device when your vehicle's ignition switch is set to the 'ACC' or 'On' position. If your mobile device has no initial battery charge, then the unit will not recognize it.

Bluetooth Phone / Audio / Siri

Bluetooth 4.2: The DMH-WT8600NEX is equipped with built-in Bluetooth 4.2, allowing you to make and receive phone calls wirelessly through the receiver; as well as stream music wirelessly from your smartphone to the head unit. In order to use Bluetooth wireless technology, your phone must also be Bluetooth compatible and be able to interpret certain profiles. This unit is compatible with the following Bluetooth Profiles:

• Hands-Free Communication: HFP 1.7 (Hands Free Profile), PBAB 1.2 (Phone Book Access Profile).
• Audio Streaming: A2DP 1.3 (Advanced Audio Distribution Profile), AVRCP 1.6 (Audio/Video Remote Control Profile).

Secure Simple Pairing (SSP): With Secure Simple Pairing (SSP), you can easily pair a Bluetooth enabled phone to the DMH-WT8600NEX without having to enter pin codes or go through complicated settings. Up to 5 Bluetooth-compatible devices can be paired to this head unit.

• Dual Phone Connection: You are able to keep two Bluetooth-enabled smartphones connected at the same time, so you can switch between phones from the head unit's touchscreen, without having to connect or re-connect devices.
• Auto Re-Connection: Once an already paired Bluetooth device is in close proximity to the receiver, the auto connection function automatically links the head unit and device together. If two Bluetooth devices were connected the last time, the two devices are connected to this unit automatically in the order that they are registered in the device list.

Hands-Free Communication (w/ External Mic): The Pioneer DMH-WT8600NEX supports wireless hands-free communication for your Bluetooth enabled mobile phone. Thanks to the latest Hands-Free Profile (HFP 1.7) with wideband speech capability, the DMH-WT8600NEX provides more natural sound quality and details during wireless calls. The DMH-WT8600NEX allows you to carry on a phone conversation from your Bluetooth enabled mobile phone using the head unit's external microphone and your car audio speakers. During a conversation you can adjust the volume, as well as switch between the Private Mode (talking directly on your cell phone) and the Hands Free Mode.

• Answering A Call: During an incoming phone call, the head unit will display the caller's information and an audible ring tone will be heard through your vehicle's speakers. You can manually answer an incoming call or have the unit automatically answer the call.
• Making A Call: The DMH-WT8600NEX offers a variety of ways to make call using the in-dash receiver.
  • Direct & Preset Dialing: You can make a call by entering the phone number using the head unit's touchscreen keypad. You can also store up to 6 phone numbers as presets for quicker dialing.
  • Phone Book: The phone book (up to 1,000 contacts) in your Bluetooth enabled mobile phone will be transferred automatically when the phone is paired to this unit. After finding the number you want to call in the phone book from the head unit, you can select the entry and make the call. If a lot of numbers are registered in the phone book, you can search for a phone number by the contact person's name alphabetically.
  • Call Log: The 80 most recent calls dialed, received, and missed are stored in memory. You can browse them and call numbers from these lists.
  • Voice Dialing via Siri: When paired and connected with an iPhone 4S or later via Bluetooth, the Pioneer head unit has the ability to access Siri through its touchscreen controls and external microphone. You'll be able to dial a phone number or contact via voice command.

Wireless Audio Streaming: The Pioneer DMH-WT8600NEX also supports wireless audio playback (AD2P) and control (AVRCP) of a Bluetooth enabled audio player or smartphone. The head unit can stream music stored on your Bluetooth enabled device or music apps you have downloaded on your device. When an incoming call or outgoing call is in progress from your Bluetooth enabled mobile phone, audio streaming will be paused so you can take your call.

• SBC + AAC Codecs: In addition to support for the standard SBC Bluetooth audio codec, the Pioneer receiver offers support of AAC. By supporting AAC, the Pioneer receiver offers better audio performance of the music streamed from your Apple iPod, iPhone, or iPad.
• Advanced Music Navigation: In addition to basic playback functions (Play/Pause, FF/RW, Skip, Random/Repeat), the DMH-WT8600NEX lets you browse your stored music by Playlist, Artist, Album, Song, etc.. (AVRCP 1.4 phones only; which includes Android 4.0+ and iPhone 5.0+).
• Song/Artist Info: The head unit will also display your stored music's and music app's song information; such as Artist name and Song/Album title (app must also support).

Siri Eyes-Free Functionality: When paired and connected to an iPhone with Siri via Bluetooth, the Pioneer DMH-WT8600NEX has the ability to access Siri through its touchscreen and external microphone for Siri Eyes-Free functionality. When activated, Siri voice prompts play through the vehicle's speakers and the user's commands and questions are received and transmitted to the receiver using the external microphone. Siri Eyes-Free provides access to many iPhone Siri functions such as music selection, making phone calls, and audible navigation (map will be displayed on iPhone); as well as listening to text messages, calendar information, and reminders. The head unit's audio is muted while Siri provides audible voice prompts.

HD / SiriusXM / Apple Radio

HD Radio: The Pioneer DMH-WT8600NEX's built-in HD Radio tuner lets you listen to the radio with the same fidelity as your digital music. HD Radio features high quality audio, FM multi-casting, and data services. With HD Radio, your FM stations offer near CD-quality sound, AM stations provide FM-like sound, and there is crystal-clear reception with no audio distortion. Best of all, HD Radio is 100% subscription free. The unit's tuner also supports analog AM/FM broadcasts.

• Supertuner IIID: The Supertuner IIID features Feed Forward Control, which avoids multi-path interference. This pre-detection of interference enables quick filter control and results in less distortion. In addition, the Supertuner IIID creates enhanced stereo during multi-path interference, unlike conventional tuners that collapse to mono. Digital processing reduces distortion, and improves Signal-to-Noise Ratio and stereo separation. Advanced analog technology improves signal processing sensitivity.
• Station Text/Album Art + RDS: AM/FM digital stations can offer text and data such as artist names and song titles. The head unit also supports Album Art from select HD Radio stations. For analog FM stations, the Radio Data System (RDS) feature displays radio broadcast information such as song/artist information when listening to compatible RDS FM stations.
• Multicasting & Recommendations: In addition to conventional broadcasts, with HD Radio broadcasting it is possible to choose from up to 3 multicast programs (HD1 to HD3, and analog). There are also data programs for each program. This unit will also suggest radio stations (up to 3) according to your frequently listened to radio stations.
• Presets & Favorites: The BSM (Best Stations Memory) function lets you automatically store the six strongest analog or HD stations under preset buttons 1-6 of the currently tuned band. The tuner has 3 FM banks and 1 AM bank. You can store 6 presets for each bank giving you a total of 18 FM presets and 6 AM presets. The Favorites feature allows you to pick out your Favorite preset stations (AM or FM) and combine them into one list.
• Reception Blending: If a digital broadcast reception condition gets poor, this unit automatically switches to the analog broadcast of the same frequency level. If this function is set to "On", the tuner switches between digital broadcast and analog broadcast automatically. If this function is 'Off', reception will be conducted within a digital broadcast.
• Local Tuning: Local seek tuning lets you tune in only those radio stations with sufficiently strong signals for good reception. There are 4 levels of sensitivity for FM and two levels for AM. The higher settings allow reception of only the strongest stations, while lower settings let you receive progressively weaker stations.

SiriusXM Ready: The Pioneer head unit is SiriusXM Ready so you can listen to commercial-free music, all your favorite sports, exclusive talk and entertainment, comedy, news, and more. Simply activate a SiriusXM Radio subscription (fees will apply) and connect the SiriusXM Vehicle Tuner (220SXV300, sold separately) to the dedicated port on the rear of the receiver for playback and control of satellite radio. Check out the most popular SiriusXM subscription packages here.

• Channel/Category Lists + Song/Artist/Album Info: The Channel List displays a list of all available channels. The Category List displays all available categories and stations within those categories. Displayed Information such as Channel Name, Artist Name, & Song Title can be viewed on the head unit's LCD touchscreen. You also get station logo identification and album art.
• Category Scan + Instant Replay: During Category Scan, the live broadcast for each channel in the current category plays for six seconds at a time. The SiriusXM Instant Replay function lets you pause, rewind, and replay up to 60 minutes of live content from the station that you are currently listening to.
• SmartFavorite Presets with TuneStart: You can store up to 18 SiriusXM Satellite Radio Station Presets with special tuning features such as TuneStart. TuneStart automatically start songs from the beginning when you tune to one of your SmartFavorite music channels stored on the current band of presets.
• Parental Control: The SiriusXM Parental Control feature allows you to control access to channels that you consider inappropriate for younger listeners. When enabled, The Parental Control feature requires you to enter a 4-digit passcode to tune to the locked channels.

Apple Music Radio: You can playback Apple Music Radio on your USB or Bluetooth connected Apple iPhone 5S or later (iOS 8.0+) through the Pioneer DMH-WT8600NEX. Using your compatible iPhone's cellular connection, you can listen to Beats 1 and other live radio stations. Apple Music subscribers can also listen to on-demand stations for every genre or create their own stations. You can use the head unit's touchscreen to select between your Apple Music Radio stations, playback songs similar to the current song, stop playback of the current song, and add the current song to your iTunes wish list.

USB / HDMI / AV Inputs

USB MSC Compatibility w/ High Resolution Playback: The unit's rear-panel USB-C port, 58" USB extension cable, and USB-C to USB-A adapter allows you to connect a USB Mass Storage Class (MSC) device; such as a USB thumbdrive. The USB port enables playback & control of music, video, and photo files stored on your portable USB MSC device through the Pioneer DMH-WT8600NEX. The head unit will also display your USB device's stored music information - including Elapsed playing time, Artist name, Song & Album title, as well as Album Art. The Pioneer NEX Series receiver even supports playback of high-resolution FLAC/WAV (up to 24-bit/192kHz) and DSD (2.8/5.6MHz) music files. High-Resolution Audio is high-quality sound that exceeds CD standard. High-resolution audio captures and beautifully expresses all the details of your favorite music. The Pioneer DMH-WT8600NEX supports the following types of audio, video, and photo files recorded onto an inserted USB device.

• Playback & Search Control: Playback & search functions include Play/Pause, Previous/Next Track, Random/Repeat, and File/Folder List.
• Song/Artist/Album Display: The head unit will display your USB device's stored music information - including Elapsed playing time, Artist name, Song & Album title, as well as Album Art.
• Device Charging: The USB-C connection provides 3A of current to power and charge your connected USB device when your vehicle's ignition switch is set to the 'ACC' or 'On' position.

Compatible Media Files: The Pioneer DMH-WT8600NEX supports the following types of audio, video, and photo files recorded onto an inserted USB device.

Micro-HDMI Input: The Pioneer DMH-WT8600NEX digital multimedia receiver is outfitted with a rear-panel micro-HDMI input for the connection of an external audio/video source device with an HDMI output. A micro-HDMI to HDMI cable or micro-HDMI to HDMI adapter is required (both sold separately). The micro-HDMI input can also be used to mirror the display of a compatible Apple iPhone or Android smartphone using the appropriate adapters (sold separately). The micro-HDMI input provides video and audio playback, but not control. Playback functions will still need to be controlled from your HDMI-connected device (not the Pioneer head unit).

AV Input: The Pioneer DMH-WT8600NEX has a rear-panel 3.5mm minijack AV input for connecting an external audio/video device, such as a DVD player or TV tuner (sold separately).

Video Out / Camera Inputs / iDatalink

Video Output: A single RCA composite video-output jack allows you to an add external monitor, such as rear headrest or overhead monitor (sold separately). The video output can display a AV-input or USB video signal when its selected as the receiver's source, regardless if the vehicle's parking brake is engaged or not.

Dual Camera Inputs: The Pioneer DMH-WT8600NEX is equipped with two camera inputs - a dedicated backup camera input with parking guidelines and auto-switching, plus a second camera input that can used for a dash-cam, side camera, or towing camera (all sold separately). Both camera inputs consist of a composite video camera input.

• Backup Camera Input w/ Guidelines: The Pioneer receiver is equipped with a composite video camera input for the addition of an optional backup camera (130NDBC8, sold separately). The unit provides on-screen guidelines to assist you when backing up and parking your vehicle. These guideline do not automatically appear on the rear-view image. You must tap the "Park Assist Guidelines" icon on the touchscreen while the rear-view image is visible on the receiver's touchscreen. The backup camera input offers two view modes -
  • Auto View: The unit features a function that automatically switches to the rear camera image. When the vehicle's transmission is put in reverse, the screen automatically switches to the rear view camera (violet/white wire of the harness must be connected to the vehicle's reverse lamp circuit for automatic video switching). Automatic video switching takes approximately 0.8 seconds.
  • Camera View: There is also a Camera View mode which allows you to manually bring up the rearview camera image on the receiver's touchscreen monitor to check what is behind you while driving. You can leave the Camera View mode on if you want to see the rearview image at all times; for instance when towing a trailer.
• Second Camera Input: The DMH-WT8600NEX has an additional composite video input where you can add a second camera. The second camera view can be activated at any time and has many potential uses including connection of a dash-cam, monitoring a tow vehicle, providing a side view for better lane visibility, or as an alternate rear view if the vehicle’s backup camera view isn't available.

iDatalink Maestro RR: Keep many of your factory features and expand your level of in-vehicle experience with the iDatalink Maestro RR (sold separately). When the DMH-WT8600NEX receiver is installed in a compatible vehicle using the iDatalink Maestro RR interface, you'll be able to enjoy the performance and features of the DMH-WT8600NEX receiver plus touchscreen control over key factory infotainment features and driver safety systems. Retained factory functions via the iDatalink Maestro RR interface may include Steering Wheel Controls, Media Player (such as factory AUX-in and USB ports), Hands-Free Phone, Voice Commands, Satellite Radio, Warning Chimes, and Secondary Display Support. Vehicle information such as HVAC, Performance Gauges, Park Assist, and TPMS can also be displayed on the Pioneer radio's touchscreen. Radar detector information can also be displayed on the screen when used with a compatible K40 or ESCORT radar detector system (sold separately). Retained factory functions and add-on features will vary by vehicle.

Amp / EQ / DSP Section

24-Bit/192kHz DAC: The Pioneer DMH-WT8600NEX is equipped with a 24-bit/192kHz digital-to-analog converter for superb quality audio playback from USB, iPod/iPhone, Android, and Bluetooth.

MOSFET50 Internal Amplifier: This receiver is equipped with a 50 watts x 4 (peak) MOSFET amplifier for low distortion, high power output. The amplifier is strong enough to power small subwoofers to moderate volume levels in compact cars and pickups. For higher volume levels from subwoofers, an optional amplifier may be connected to the preamp outputs.

• CTA-2006 Specs: 14 watts RMS x 4 channels (at 4 ohms, 20Hz-20kHz, 1% THD-N)
• Continuous Power Output: 22 watts RMS x 4 channels (at 4 ohms, 50Hz-15kHz, 5% THD)
• Maximum Power Output: 50 watts x 4 channels (or 50 watts x 2 channels at 4 ohms + 70 watts x 1 channel at 2 ohms for subwoofer)

4V/6CH Preamp Outputs + Sub Control: The Pioneer DMH-WT8600NEX features three pair of 4.0-volt preamp outputs (Front/Rear/Subwoofer). The unit's front and rear preamp output can be faded (front/rear), while the subwoofer preamp output is non-fading. The Pioneer DMH-WT8600NEX lets you adjust the subwoofer preamp output's phase (normal/reverse) and volume (+6 to -24).

Crossovers: The DMH-WT8600NEX employs high-pass and low-pass crossovers to tailor the head unit to your connected speaker setup.

• Standard: Allows you to set the high-pass and low-pass crossover network for a standard Front, Rear, and Subwoofer speaker setup using either speaker-level or low-level outputs.
  • HPF: The head unit's -6 to -24dB/octave high pass filter only allows frequencies higher than those in the selected range (50, 63, 80, 100, 125, 160, 200Hz) to your front and rear speakers through the unit's speaker-level or line-level outputs.
  • LPF: The subwoofer preamp output features an -6 to -24dB/octave low pass filter so only frequencies lower than those in the selected range (50, 63, 80, 100, 125, 160, 200Hz) are output to your connected subwoofer.
• Network: Allows you to set the high-pass and low-pass crossover network for a complex 3-way speaker system with Highs, Mids, and Sub using low-level outputs only.
  • Highs: The high-pass crossover for your tweeters can be set to 1.25, 1.6, 2, 2.5, 3.15, 4, 5, 6.3, 8, 10, or 12.5 kHz with a -6 to -36dB/octave roll-off.
  • Mids: You can set a high-pass and low-pass crossover from your midrange/midbass drivers. The low-pass crossover can be set to 1.25, 1.6, 2, 2.5, 3.15, 4, 5, 6.3, 8, 10, or 12.5 kHz with a -6 to -36dB/octave roll-off. The high-pass crossover can be set to 26, 31.5, 40, 50, 63, 80, 100, 125, 160, 200, or 250 Hz with a -6 to -36dB/octave roll-off.
  • Lows: The low-pass crossover for your subwoofers can be set to 26, 31.5, 40, 50, 63, 80, 100, 125, 160, 200, or 250 Hz with a -6 to -36dB/octave roll-off.

EEQ (Easy EQ) + 13-Band Graphic EQ: There are seven stored equalizer curves which you can easily recall at any time. You can choose from - Powerful, Natural, Vocal, Super Bass, Flat, Custom 1, or Custom 2. The Custom 1 and Custom 2 EQ modes allow you to manually adjust the level (+/- 12dB) of each band of the head unit's 13-band graphic equalizer (50, 80, 125, 200, 315, 500, 800, 1.25k, 2k, 3.15k, 5k, 8k, and 12.5k Hz).

Audio Settings: The head unit provides further sound adjustments for your car audio system.

• Listening Position & Time Alignment: For a better sound-stage you can select your optimal listening position. You can choose from All, Front Left, Front Right, or Front. You can also select to manually fine tune the sound stage, using Digital Time Alignment (DTA) by selecting the distance (0-200") for each individual speaker in the vehicle compared to your listening position.
• Advanced Sound Retriever: The Advanced Sound Retriever automatically enhances compressed audio and restores the original richness of the recording. When the Advanced Sound Retriever is on, the high frequency range is compensated to match the frequency response curve to the original sound. There are two available levels of the Advanced Sound Retriever effect.
• Bass Boost: You can easily boost the subwoofer bass level by using the Bass Boost function. The Bass Boost feature allows you increase the subwoofer level from 0 to +6 (12dB).
• Loudness: The Loudness function compensates for deficiencies in the low- and high-frequency ranges at low volume. You can set the Loudness to High, Mid, Low, or Off.
• Speaker Level: You can adjust each speaker and sub channel independently from +10 to -24 to best even out the sound in your vehicle.
• Source Level Adjustment (SLA): This function lets you adjust the volume level of each source to prevent radical changes in volume when switching between sources. Settings are based on the unit's FM volume level, which remains unchanged. Each source can be independently adjusted from -4 dB to +4 dB.
• Auto Level Control (ALC): This function automatically corrects the audio level difference between the music files and/or the sources.

Rear Speaker Setup: The rear speaker outputs can be set to provide full range output with full fading capability, or they can be set to provide non-fading subwoofer (low-pass) output. When the rear speaker outputs are set to subwoofer mode, the rear preamp outputs also switch from full range to subwoofer outputs. When set for subwoofer operation, you can connect the rear speaker leads directly to two small 4-ohm passive subwoofers or a dual voice coil sub with 4-ohm voice coils. If you prefer to use a single 2-ohm subwoofer, you can connect the woofer to one set of speaker leads, leaving the other set of rear leads disconnected. The maximum output provided when a 2-ohm load is connected to one set of leads is 70 watts.

Beep Tone: The in-dash head unit provides an audible beep to confirm button operation. You can turn this feature on or off.
