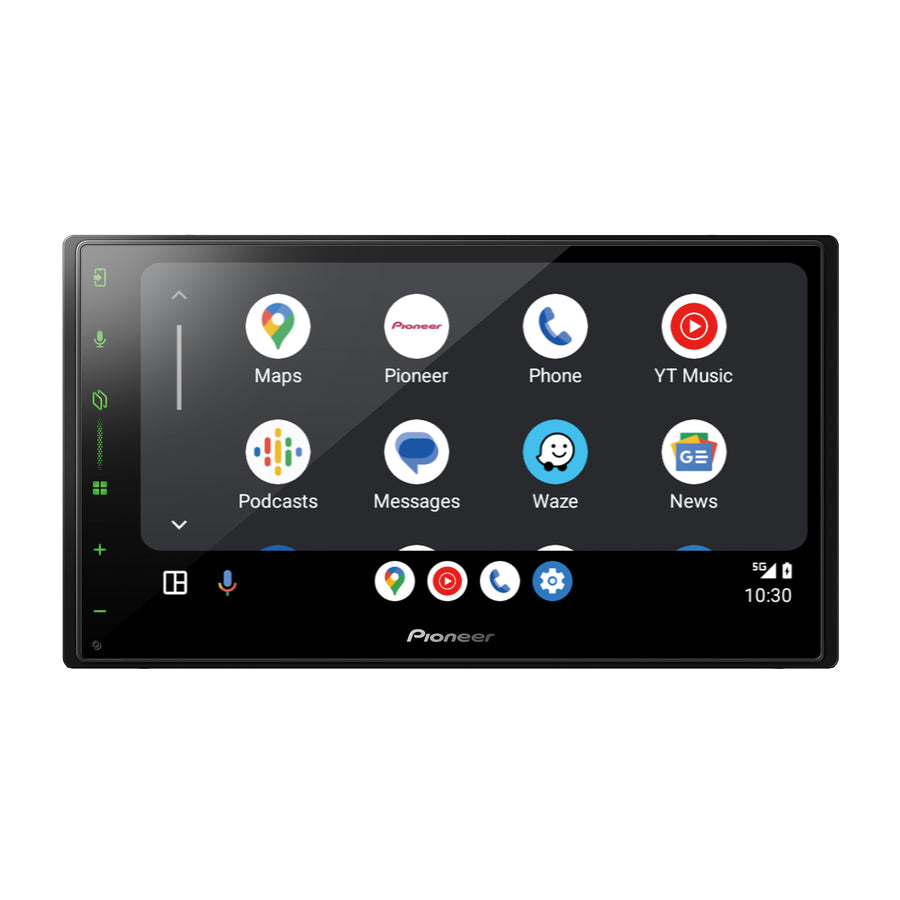

Pioneer DMH-2000NEX

Touchscreen / iDatalink / SWC
CarPlay / Android Auto / WebLink
Bluetooth Phone / Audio /Siri
USB / AV / Camera
Amp / EQ / DSP
HD Radio + SiriusXM Ready

Touchscreen / iDatalink / SWC

6.8" Capacitive Touchscreen: The Pioneer DMH-2000NEX features a 6.8" capacitive LCD touchscreen display with a resolution of 800 x 480 (WVGA), for a total of 1,152,000 pixels. The capacitive LCD touchscreen display is highly responsive, powerful, and very intuitive for exceptional control. The capacitive touchscreen offers multi-touch gestures like pinch-to-zoom, plus simple swipe & scroll controls - similar to your smartphone's touchscreen interface. The touchscreen display allows you to control this unit and a connected component such as an iPhone, Android smartphone, Bluetooth phone, or USB mass storage class device. Menus appear on screen for making function choices, audio adjustments, and setting up the system.

• OSD + Backgrounds: The color of the on-screen display can be set to red, amber, green, blue or white. The background display can be selected from 8 different preset displays for the AV Operation screen and 3 different preset displays for the Home Menu screen. In addition, you can change the background display of Home Screen to other images imported from an external USB device.
• Favorites & Shortcuts: You can register the desired menu items on the DMH-2000NEX 's "Favorites" menu screen. Registering your favorite menu items allows you to quickly jump to the registered menu item by a simple touch on the favorites menu. Up to 12 menu items can be registered as a "Favorite". You can enable shortcut keys that allow you to easily operate frequently used functions on the home menu screen.
• Picture Adjustments: You can store numerous video settings for the head unit's video sources and rear-view camera; including brightness (adjusts the black intensity), contrast (adjusts contrast), color (adjusts color saturation), hue, (adjusts color tone), temperature (adjust the color temperature), and Dimmer (adjusts brightness).
• Dimmer: The receiver's touchscreen display & button illumination can be dimmed manually, automatically or via a timer. You can set the unit's LCD touchscreen & button illumination to automatically dim when your vehicle's headlights are turned on (this function requires that the orange/white illumination wire in the wiring harness is connected to the vehicle's headlight circuit). You can also set a specific time and duration for unit's LCD & button illumination to dim.
• Display Off: You can turn the LCD touchscreen display off and still continue to listen to music, radio, navigation commands, or other audio.

Parking Brake Interlock: This unit has a parking brake interlock system that prohibits viewing of video programming and operating certain controls when the vehicle is in motion. In order to watch video or mirror content on the in-dash monitor, the vehicle must be stopped with the parking brake engaged. The head unit's light green wire must be connected to your vehicle's parking brake detection circuit. The head unit's touchscreen will display a "Caution" message, if you try to watch a video when your vehicle is in motion.

• The parking brake wire must also be connected and the parking brake engaged for certain setup functions and menu options.
• CarPlay and Android Auto do not require that the parking brake be engaged.

Front-Panel Control w/ Variable Color Illumination: In addition to the touchscreen controls, the unit includes frequently used capacitive touch buttons along the left edge of the screen. Perform quick interactions like making calls, initiate voice actions, go to app screens, and return to the main menu in 1-click instead of 2 to 3 times more interactions. The color of the button illumination can be set to blue, red, yellow, green or white.

iDatalink Maestro: Keep many of your factory features and expand your level of in-vehicle experience with the iDatalink Maestro (sold separately). When the DMH-2000NEX receiver is installed in a compatible vehicle using the iDatalink Maestro interface, you'll be able to enjoy the performance and features of the DMH-2000NEX receiver plus touchscreen control over key factory infotainment features and driver safety systems. Retained factory functions via the iDatalink Maestro interface may include Steering Wheel Controls, Media Player (such as factory AUX-in and USB ports), Hands-Free Phone, Voice Commands, Satellite Radio, Warning Chimes, and Secondary Display Support. Vehicle information such as HVAC, Performance Gauges, Park Assist, and TPMS can also be displayed on the Pioneer radio's touchscreen. Radar detector information can also be displayed on the screen when used with a compatible K40 or ESCORT radar detector system (sold separately). Retained factory functions and add-on features will vary by vehicle.

Steering Wheel Remote Compatibility: The DMH-2000NEX features a 3.5mm steering wheel remote control input on the rear of the head unit that lets you keep your vehicle's factory radio steering wheel remote controls when used with an optional steering wheel audio control adapter (sold separately).

Beep Tone: The in-dash head unit provides an audible beep to confirm button operation. You can turn this feature on or off.

CarPlay / Android Auto / WebLink

Apple CarPlay: The Pioneer DMH-2000NEX features Apple CarPlay, the smarter and safer way to use your iPhone (8 and newer) in the car. The Pioneer DMH-2000NEX supports Apple CarPlay through your USB-connected iPhone 8 and newer device. Apple CarPlay is specially designed for driving scenarios. You can control CarPlay from the Pioneer receiver's touchscreen controls or use Siri to control CarPlay with just your voice. You'll be able to use CarPlay to get directions, make phone calls, listen to voice mails, send/receive text messages, select music, and even control Apple HomeKit compatible devices in a way that keeps you focused on the road ahead.

• Navigation Maps: The power and simplicity of Apple Maps comes to your dashboard; complete with turn-by-turn direction, traffic conditions, and estimated travel time. You can enter a new destination or choose a favorite or recent destination using the head unit's touchscreen or by simply asking Siri. CarPlay can also predict where you most likely want to go using addresses from your email, text messages, contacts, and calendars. If you have iOS 12.0 or newer on your iPhone with the latest version of Google Maps or Waze, you can choose to navigate via the Google Maps or Waze application instead of Apple Maps. Google Maps and Waze do not support Siri voice control, but will have their own proprietary voice control function which has to be accessed through a touchscreen icon on the receiver.
• Phone & Messages: You'll be able to make calls, return missed calls, and listen to voicemails through the Pioneer receiver. Siri can also help you do all these things. In addition, Siri can send, read, and reply to your text messages for you; so you never have to look at your iPhone while driving.
• Music Library: Access your favorite artists, songs, and playlists from Apple Music on your iPhone using the Pioneer receiver's touchscreen. Or, just tell Siri what you'd like to listen to. The head unit's touchscreen will display song/artist information, as well as album art in the background.
• Apps: CarPlay also supports additional audio apps that you've downloaded to your iPhone for enjoying music, radio, sports, news, podcasts, & audiobooks (subscriptions and fees may apply). Control these apps from the head unit's touchscreen just like you would from your iPhone. Current supported apps include:
  • Music & Radio: Amazon Music, Tidal, Pandora, Spotify, iHeart Radio, TuneIn Radio, SiriusXM, Slacker Radio, & more.
  • News, Sports & Podcasts: Stitcher, MLB.com At Bat, NBA, CBS Radio News, NPR One, OverCast, & more.
  • Audio Books: Audiobooks.com & Audible
• Apple HomeKit Compatible: CarPlay now supports control of Apple HomeKit enabled devices (sold separately) through Siri. Using CarPlay in your vehicle, you can ask Siri to close or open your garage door, turn on or off home lighting, increase or decrease the temperature of your thermostat, as well as control select functions of other Apple HomeKit enabled devices and appliances. Click here for a list of compatible Apple HomeKit products.

Android Auto: The Pioneer NEX receiver supports the Android Auto app for Android smartphones running OS Oreo 8.0 or newer. Your compatible Android smartphone must be connected to the NEX receiver's rear-panel USB port via the included USB extension cable and your phone's USB cable, plus be paired via Bluetooth (your vehicle's parking brake needs to be engaged to initially setup Android Auto). Android Auto extends the Android platform into your car in a way that's purpose-built for driving and automatically brings you useful information and organizes it into a simple on-screen interface that is simple to use in the vehicle. It's designed to minimize distraction so you can stay focused on the road ahead. Features of Android Auto include -

• Google Assistant: The Pioneer receiver enhances your Android Auto experience even more by incorporating Google Assistant using the head unit's external microphone and your car speakers for voice command and text-to-speech, which makes using Android Auto and all of its integrated applications fast, easy, and safe. You will need to press the "mic" button or say "OK Google" to activate the Google Assistant. Use the Google Assistant to make a call, send a message, reply to a message, get driving directions, listen to music, or even control select Google Assistant smarthome enabled devices.
• Google & Waze Maps: Use Google Maps to get where you're going with on-screen maps, voice-guided navigation, live traffic information, lane guidance, and more. Select your destination by using the head unit's touchscreen or just say where you want to go through the unit's external mic and Google Speech Technology. You can even listen to music from your Android Auto device or other connected source device while using Google Maps. If you prefer, you can switch over to a simpler version of the community-based Waze navigation app (version 4.27 or higher).
• Phone & SMS: With Android Auto you get access to your contacts and messages through the Pioneer receiver while keeping your eyes on the road. Use the unit's external mic and Google Speech Technology to make a phone call, or have your text-messages read aloud to you while you concentrate on the road ahead; you can even reply to texts via voice command.
• Music: Access your Android smartphone's music library through the Pioneer receiver YouTube Music. You'll be able to browse music like you do on your smartphone with song/artist information display and album art. Use the receiver's touchscreen to select songs or just say what song you want to listen to through the head unit's external mic and Google Speech Technology. You also get access to online music and radio stations from Amazon Music, Tidal, Pandora, Spotify, iHeart Radio, SiriusXM, Slacker Radio, Tune-In, and more; as well as news, sports and talk radio apps. Music apps include song and station browsing, plus song/artist information and album art or station logo. Click here for a list of all compatible apps for Android Auto.

WebLink Cast (for iPhone & Android): Download the WebLink Host app (for Apple iOS or Android OS) and connect your compatible Apple iPhone (8 and newer) or Android smartphone (OS 7.0 and newer) via USB to mirror and control your compatible mobile device, plus access select apps such as YouTube, Yelp, and Zomato through the Pioneer DMH-2000NEX. The apps must be downloaded on your compatible mobile device and can then be accessed through the Pioneer receiver's touchscreen using the WebLink interface.

• Mirroring: WebLink Cast allows you to mirror and control your compatible Apple iOS or Android OS device via the Pioneer DMH-2000NEX digital multimedia receiver. Your vehicle's parking brake will need to be engaged
• MusicPlayer: WebLink's MusicPlayer allows you to access your Apple iOS or Android device's stored music for playback (content must be stored on the device and not the cloud). From the receiver's touchscreen, you can browse your phone's music library by Artist, Album, Genres, Playlist, or Songs. You can also search your music by typing in an artist's name or a song title (the vehicle's parking brake has to be engaged for this feature). In addition, you get playback controls such as Play/Pause, Previous/Next Track, & Random/Repeat. The DVD receiver's screen will display song/artist/album information, along with album art.
• VideoPlayer: WebLink's VideoPlayer allows you to access your Apple iOS or Android device's stored video and photo library. Your video clips and photo images must be stored on the mobile device and not the cloud. Your vehicle's parking brake has to be engaged to view videos and photos.
• YouTube: With WebLink, you can access YouTube (for Apple iOS and Android OS) and play videos on the Pioneer receiver's touchscreen monitor (your vehicle's parking brake will need to be engaged). You can select videos from a variety of categories or search by keyword(s).
• ShoutCast: ShoutCast allows you to access and listen to a variety of internet radio stations from all over the world. You Can listen to the Top stations or browse stations by genre. You can also search for a station by typing in a keyword (the vehicle's parking brake has to be engaged for this feature).
• Yelp: Yelp (for Apple iOS and Android OS) uses automated software to recommend the most helpful and reliable reviews for the Yelp community among the millions submitted. The software looks at dozens of different signals, including various measures of quality, reliability, and activity on Yelp. Let Yelp help you find the best Restaurants, Hotels, Automotive Service Centers, Banks, Shopping Malls, and more. Search by Category, Favorites, Distance, Point on the Map, or Keyword. A keyword search requires that your vehicle's parking brake be engaged.
• Zomato: Zomato (for Apple iOS and Android OS) lets you search for and discover restaurants to eat out at or order in from. Browse through restaurant menus, photos, user reviews and ratings to decide where you want to eat, and use the map feature to guide you there.
• Weather: The OpenWeatherApp lets you check today's weather forecast, as well as a 4 day weather forecast.

Alexa Voice Control: WebLink also gives you access to Amazon's Alexa digital voice assistant. By downloading the Amazon Alexa app (for Apple iOS and Android OS) and the Vozsis with Alexa app (for Apple iOS and Android OS) in addition to the WebLink Host app (for Apple iOS or Android OS) onto your compatible Apple iPhone (8 and newer) or Android smartphone (OS 7.0 and newer), you gain access to Amazon's Alexa digital voice assistant. You'll be able to ask Alexa to play music from compatible music apps (such as Amazon Music and Pandora), make calls from your contacts or to a business, check news and weather, control smart home devices, and more. In addition to a USB connection, you'll also need to pair and connect your Apple iOS or Android device via Bluetooth to the Pioneer receiver. Alexa will be accessed through the WebLink app and touchscreen on the Pioneer receiver.

• Alexa cannot be accessed by simply saying "Alexa" like on some smart speaker devices; Alexa will be accessed through the WebLink app and touchscreen on the Pioneer receiver.
• Alexa does not control source, menu, and other internal functions of the Pioneer receiver. Alexa only supports control of its compatible cloud-based services.
• Pioneer does not guarantee compatibility with all Alexa features and may not support some Alexa voice control functions.

GPS Antenna: The included GPS antenna must also be installed for Android Auto and Apple CarPlay navigation maps. The GPS antenna comes with a self-stick pad which mounts it on top of your dash inside the vehicle.

Cellular & Data Plan Requirements: Access to CarPlay, Android Auto, WebLink, and Alexa will depend on the availability of a cellular and/or WiFi network for purposes of allowing your iPhone or Android device to connect to the Internet. Your compatible Apple iPhone or Android smartphone will need an active Data Plan account with connection to the Internet via 3G, EDGE, LTE (4G), or WiFi.

Smartphone Charging: The DMH-2000NEX will also charge (5V/1.5A) your Android smartphone or Apple iPhone while connected via USB with the vehicle's ignition switch set to the 'ACC' or 'On' position.

Bluetooth Phone / Audio / Siri

Bluetooth 5.3: The DMH-2000NEX is equipped with built-in Bluetooth 5.3, allowing you to make and receive phone calls wirelessly through the receiver; as well as stream music wirelessly from your smartphone to the head unit. In order to use Bluetooth wireless technology, your phone must also be Bluetooth compatible and be able to interpret certain profiles. This unit is compatible with the following Bluetooth Profiles:

• Hands-Free Communication: HFP 1.8 (Hands Free Profile), PBAP 1.2.3 (Phone Book Access Profile).
• Audio Streaming: A2DP 1.4 (Advanced Audio Distribution Profile), AVRCP 1.6.2 (Audio/Video Remote Control Profile).

Secure Simple Pairing (SSP): With Secure Simple Pairing (SSP), you can easily pair a Bluetooth enabled phone to the DMH-2000NEX without having to enter pin codes or go through complicated settings. Up to 5 Bluetooth-compatible devices can be paired to this head unit.

• Dual Phone Connection: You are able to keep two Bluetooth-enabled smartphones connected at the same time, so you can switch between phones from the head unit's touchscreen, without having to connect or re-connect devices.
• Auto Re-Connection: Once an already paired Bluetooth device is in close proximity to the receiver, the auto connection function automatically links the head unit and device together. If two Bluetooth devices were connected the last time, the two devices are connected to this unit automatically in the order that they are registered in the device list.

Hands-Free Communication (w/ External Mic): The Pioneer DMH-2000NEX supports wireless hands-free communication for your Bluetooth enabled mobile phone. Thanks to the latest Hands-Free Profile (HFP 1.8) with wideband speech capability, the DMH-2000NEX provides more natural sound quality and details during wireless calls. The DMH-2000NEX allows you to carry on a phone conversation from your Bluetooth enabled mobile phone using the head unit's external microphone and your car audio speakers. During a conversation you can adjust the volume, as well as switch between the Private Mode (talking directly on your cell phone) and the Hands Free Mode.

• Answering A Call: During an incoming phone call, the head unit will display the caller's information and an audible ring tone will be heard through your vehicle's speakers. You can manually answer an incoming call or have the unit automatically answer the call.
• Making A Call: The DMH-2000NEX offers a variety of ways to make call using the in-dash receiver.
  • Direct & Preset Dialing: You can make a call by entering the phone number using the head unit's touchscreen keypad. You can also store up to 6 phone numbers as presets for quicker dialing.
  • Phone Book: The phone book (up to 1,000 contacts) in your Bluetooth enabled mobile phone will be transferred automatically when the phone is paired to this unit. After finding the number you want to call in the phone book from the head unit, you can select the entry and make the call. If a lot of numbers are registered in the phone book, you can search for a phone number by the contact person's name alphabetically.
  • Call Log: The 80 most recent calls dialed, received, and missed are stored in memory. You can browse them and call numbers from these lists.
  • Voice Dialing via Siri: When paired and connected with an iPhone 4S or later via Bluetooth, the Pioneer head unit has the ability to access Siri through its touchscreen controls and external microphone. You'll be able to dial a phone number or contact via voice command.

Wireless Audio Streaming: The Pioneer DMH-2000NEX also supports wireless audio playback (AD2P) and control (AVRCP) of a Bluetooth enabled audio player or smartphone. The head unit can stream music stored on your Bluetooth enabled device or music apps you have downloaded on your device. When an incoming call or outgoing call is in progress from your Bluetooth enabled mobile phone, audio streaming will be paused so you can take your call.

• Advanced Music Navigation: In addition to basic playback functions (Play/Pause, FF/RW, Skip, Random/Repeat), the DMH-2000NEX lets you browse your stored music by Playlist, Artist, Album, Song, etc.. (AVRCP 1.4 phones only; which includes Android 4.0+ and iPhone 5.0+).
• Song/Artist Info: The head unit will also display your stored music's and music app's song information; such as Artist name and Song/Album title (app must also support).

Siri Eyes-Free Functionality: When paired and connected to an iPhone with Siri via Bluetooth, the Pioneer DMH-2000NEX has the ability to access Siri through its touchscreen and external microphone for Siri Eyes-Free functionality. When activated, Siri voice prompts play through the vehicle's speakers and the user's commands and questions are received and transmitted to the receiver using the external microphone. Siri Eyes-Free provides access to many iPhone Siri functions such as music selection, making phone calls, and audible navigation (map will be displayed on iPhone); as well as listening to text messages, calendar information, and reminders. The head unit's audio is muted while Siri provides audible voice prompts.

USB / AV / Camera

USB MSC Compatibility w/ High Resolution Playback: The unit's rear-panel USB (type-A) port and 58" USB extension cable allows you to connect a USB Mass Storage Class (MSC) device; such as a USB thumbdrive. The USB port enables playback & control of music, video, and photo files stored on your portable USB MSC device through the Pioneer DMH-2000NEX. The head unit will also display your USB device's stored music information - including Elapsed playing time, Artist name, Song & Album title, as well as Album Art. The Pioneer NEX Series receiver even supports playback of high-resolution FLAC (up to 24-bit/192kHz) and WAV (16-bit/192kHz) music files). High-Resolution Audio is high-quality sound that exceeds CD standard. High-resolution audio captures and beautifully expresses all the details of your favorite music.

AV Input: The Pioneer DMH-2000NEX has a rear-panel 3.5mm minijack AV input for connecting an external audio/video device, such as a DVD player or TV tuner (sold separately). The Pioneer receiver's parking brake wire must be connected and your vehicle's parking brake engaged in order for the head unit to display a video signal.

Backup Camera Input w/ Guidelines: The Pioneer receiver is equipped with a composite video camera input for the addition of an optional backup camera (sold separately; see Accessories Tab). The unit provides on-screen guidelines to assist you when backing up and parking your vehicle. These guideline do not automatically appear on the rear-view image. You must tap the "Park Assist Guidelines" icon on the touchscreen while the rear-view image is visible on the receiver's touchscreen. The backup camera input offers two view modes -

• Auto View: The unit features a function that automatically switches to the rear camera image. When the vehicle's transmission is put in reverse, the screen automatically switches to the rear view camera (violet/white wire of the harness must be connected to the vehicle's reverse lamp circuit for automatic video switching). Automatic video switching takes approximately 0.8 seconds.
• Camera View: There is also a Camera View mode which allows you to manually bring up the rearview camera image on the receiver's touchscreen monitor to check what is behind you while driving. You can leave the Camera View mode on if you want to see the rearview image at all times; for instance when towing a trailer.

Amp / EQ / DSP

24-Bit/192kHz DAC: The Pioneer DMH-2000NEX is equipped with a 24-bit/192kHz digital-to-analog converter for superb quality audio playback from disc, USB, iPod/iPhone, Android, and Bluetooth.

MOSFET50 Internal Amplifier: This receiver is equipped with a 50 watts x 4 (peak) MOSFET amplifier for low distortion and high power output. The amplifier is strong enough to power small subwoofers to moderate volume levels in compact cars and pickups. For higher volume levels from subwoofers, an optional amplifier may be connected to the preamp outputs.

• CTA-2006 Specs: 14 watts RMS x 4 channels (at 4 ohms, 20Hz-20kHz, 1% THD-N)
• Continuous Power Output: 22 watts RMS x 4 channels (at 4 ohms, 50Hz-15kHz, 5% THD)

4V/6CH Preamp Outputs + Sub Control: The Pioneer DMH-2000NEX features three pair of 4.0-volt preamp outputs (Front/Rear/Subwoofer). The unit's front and rear preamp output can be faded (front/rear), while the subwoofer preamp output is non-fading. The Pioneer DMH-2000NEX lets you adjust the subwoofer preamp output's phase (normal/reverse) and volume (+10 to -24).

Crossovers: The DMH-2000NEX employs high-pass and low-pass crossovers to tailor the head unit to your connected speaker setup.

• Standard: Allows you to set the high-pass and low-pass crossover network for a standard Front, Rear, and Subwoofer speaker setup using either speaker-level or low-level outputs.
  • HPF: The head unit's -6 to -24dB/octave high pass filter only allows frequencies higher than those in the selected range (25, 31.5, 40, 50, 63, 80, 100, 125, 160, 200, or 250 Hz) to your front and rear speakers through the unit's speaker-level or line-level outputs.
  • LPF: The subwoofer preamp output features an -6 to -24dB/octave low pass filter so only frequencies lower than those in the selected range (25, 31.5, 40, 50, 63, 80, 100, 125, 160, 200, or 250Hz) are output to your connected subwoofer.
• Network: Allows you to set the high-pass and low-pass crossover network for a complex 3-way speaker system with Highs, Mids, and Sub using low-level outputs only.
  • Highs: The high-pass crossover for your tweeters can be set to 1.25, 1.6, 2, 2.5, 3.15, 4, 5, 6.3, 8, 10, or 12.5 kHz with a -6 to -36dB/octave roll-off.
  • Mids: You can set a high-pass and low-pass crossover from your midrange/midbass drivers. The low-pass crossover can be set to 1.25, 1.6, 2, 2.5, 3.15, 4, 5, 6.3, 8, 10, or 12.5 kHz with a -6 to -36dB/octave roll-off. The high-pass crossover can be set to 25, 31.5, 40, 50, 63, 80, 100, 125, 160, 200, or 250 Hz with a -6 to -36dB/octave roll-off.
  • Lows: The low-pass crossover for your subwoofers can be set to 25, 31.5, 40, 50, 63, 80, 100, 125, 160, 200, or 250 Hz with a -6, -12, 18, or -24 dB/octave roll-off.

EEQ (Easy EQ) + 13-Band Graphic EQ: There are seven stored equalizer curves which you can easily recall at any time. You can choose from - Powerful, Natural, Vocal, Super Bass, Flat, or Custom . The Custom mode allows you to manually adjust the level (+/- 12dB) of each band of the head unit's 13-band graphic equalizer (50, 80, 125, 200, 315, 500, 800, 1.25k, 2k, 31.5k, 5k, 8k, and 12.5k Hz).

Audio Settings: The head unit provides further sound adjustments for your car audio system.

• Listening Position & Time Alignment: For a better sound-stage you can select your optimal listening position. You can choose from All, Front Left, Front Right, or Front. You can also select to manually fine tune the sound stage, using Digital Time Alignment (DTA) by selecting the distance (0-200") for each individual speaker in the vehicle compared to your listening position.
• Bass Boost: You can easily boost the subwoofer bass level by using the Bass Boost function. The Bass Boost feature allows you increase the subwoofer level from 0 to +6 (12dB).
• Loudness: The Loudness function compensates for deficiencies in the low- and high-frequency ranges at low volume. You can set the Loudness to High, Mid, Low, or Off.
• Speaker Output Level: You can adjust each speaker and sub channel independently from +10 to -24 to best even out the sound in your vehicle.

HD Radio + SiriusXM Ready

HD Radio: The Pioneer DMH-2000NEX's built-in HD Radio tuner lets you listen to the radio with the same fidelity as your digital music. HD Radio features high quality audio, FM multi-casting, and data services. With HD Radio, your FM stations offer near CD-quality sound, AM stations provide FM-like sound, and there is crystal-clear reception with no audio distortion. Best of all, HD Radio is 100% subscription free. The unit's tuner also supports analog AM/FM broadcasts.

• Supertuner IIID: The Supertuner IIID features Feed Forward Control, which avoids multi-path interference. This pre-detection of interference enables quick filter control and results in less distortion. In addition, the Supertuner IIID creates enhanced stereo during multi-path interference, unlike conventional tuners that collapse to mono. Digital processing reduces distortion, and improves Signal-to-Noise Ratio and stereo separation. Advanced analog technology improves signal processing sensitivity.
• Station Text/Album Art + RDS: AM/FM digital stations can offer text and data such as artist names and song titles. The head unit also supports Album Art from select HD Radio stations. For analog FM stations, the Radio Data System (RDS) feature displays radio broadcast information such as song/artist information when listening to compatible RDS FM stations.
• Multicasting & Recommendations: In addition to conventional broadcasts, with HD Radio broadcasting it is possible to choose from up to 3 multicast programs (HD1 to HD3, and analog). There are also data programs for each program. This unit will also suggest radio stations (up to 3) according to your frequently listened to radio stations.
• Presets & Favorites: The BSM (Best Stations Memory) function lets you automatically store the six strongest analog or HD stations under preset buttons 1-6 of the currently tuned band. The tuner has 3 FM banks and 1 AM bank. You can store 6 presets for each bank giving you a total of 18 FM presets and 6 AM presets. The Favorites feature allows you to pick out your Favorite preset stations (AM or FM) and combine them into one list.
• Reception Blending: If a digital broadcast reception condition gets poor, this unit automatically switches to the analog broadcast of the same frequency level. If this function is set to "On", the tuner switches between digital broadcast and analog broadcast automatically. If this function is 'Off', reception will be conducted within a digital broadcast.
• Local Tuning: Local seek tuning lets you tune in only those radio stations with sufficiently strong signals for good reception. There are 4 levels of sensitivity for FM and two levels for AM. The higher settings allow reception of only the strongest stations, while lower settings let you receive progressively weaker stations.

SiriusXM-Ready: The Pioneer DMH-2000NEX is SiriusXM-Ready so you can listen to commercial-free music, all your favorite sports, exclusive talk and entertainment, comedy, news, traffic, weather, and more. Simply activate a SiriusXM Radio subscription (fees will apply) and connect the SiriusXM Connect Vehicle Tuner (220SXV300, sold separately) to the dedicated port on the rear of the receiver for playback and control of satellite radio. Check out the most popular SiriusXM subscription packages here.

• Channel List & Category Search: Channel list displays a list of all available channels. Category Search allows you to search for channels in a certain genre or category.
• Song/Artist/Album Info: Displayed Information such as Channel Name, Artist Name, & Song Title (including album art & station logo) can be viewed on the head unit's touchscreen monitor.
• 18 Presets: You can save up to 18 SiriusXM Satellite Radio station presets for quick and easy access.
• Parental Control: The SiriusXM Parental Control feature allows you to control access to channels that you consider inappropriate for younger listeners. When enabled, The Parental Control feature requires you to enter a 4-digit passcode to tune to the locked channels.
