Kenwood Excelon Reference DDX9907XR

Android & iPhone Integration

Android Auto Wireless: The Kenwood DDX9907XR supports the Android Auto app for select Android smartphones using a wired or wireless connection. A Google or Samsung smartphone with Android OS 10.0+ or any smartphone with Android OS 11.0+ and 5GHz WiFi can utilize Android Auto Wireless with the Kenwood receiver using the latest version of the Android Auto app, plus a WiFi and Bluetooth connection (both wireless connections must be made; a wired USB connection must be made initially between the Android phone and the Kenwood receiver to setup Wireless Android Auto). Android smartphones running Oreo 8.0 or newer can also be connected to the Kenwood receiver's "grey" USB port (not "black") using the included USB extension cable and USB cable that came with your smartphone, plus be paired via Bluetooth. Android Auto extends the Android platform into your car in a way that's purpose-built for driving and automatically brings you useful information and organizes it into a simple on-screen interface that is simple to use in the vehicle. It's designed to minimize distraction so you can stay focused on the road ahead. Features of Android Auto include -

• Google Assistant: The Kenwood receiver enhances your Android Auto experience even more by incorporating Google Assistant using the head unit's external microphone and your car speakers for voice command and text-to-speech, which makes using Android Auto and all of its integrated applications fast, easy, and safe. You will need to press the "mic" button or say "OK Google" to activate the Google Assistant. Use the Google Assistant to make a call, send a message, reply to a message, get driving directions, listen to music, or even control select Google Assistant smarthome enabled devices.
• Google & Waze Maps: Use Google Maps to get where you're going with on-screen maps, voice-guided navigation, live traffic information, lane guidance, and more. Select your destination by using the head unit's touchscreen or just say where you want to go through the unit's external mic and Google Speech Technology. You can even listen to music from your Android Auto device or other connected source device while using Google Maps. If you prefer, you can switch over to a simpler version of the community-based Waze navigation app (version 4.27 or higher).
• Phone & SMS: With Android Auto you get access to your contacts and messages through the Kenwood receiver while keeping your eyes on the road. Use the unit's external mic and Google Speech Technology to make a phone call, or have your text-messages read aloud to you while you concentrate on the road ahead; you can even reply to texts via voice command.
• Music: Access your Android smartphone's music library through the Kenwood receiver via YouTube Music. You'll be able to browse music like you do on your smartphone with song/artist information display and album art. Use the receiver's touchscreen to select songs or just say what song you want to listen to through the head unit's external mic and Google Speech Technology. You also get access to online music and radio stations from Amazon Music, Tidal, Pandora, Spotify, iHeart Radio, Slacker Radio, Tune-In, and more; as well as news, sports and talk radio apps. Music apps include song and station browsing, plus song/artist information and album art or station logo. Click here for a list of all compatible app for Android Auto.

Wireless Apple CarPlay: Apple CarPlay is a smarter, safer in-vehicle interface to operate your iPhone with Lightning Connecter, and is specially designed for driving scenarios. Your iPhone can be connected to the Kenwood DDX9907XR wirelessly or via USB. A wireless connection to your compatible iPhone (iOS 9.0+) can be made using the Kenwood receiver's built-in WiFi (5GHz) and Bluetooth (2.4GHz) - requires both wireless connections. Or, you can choose to connect your compatible iPhone (iOS 7.1+) to the Kenwood receiver via USB. Your iPhone will need to be connected to the Kenwood receiver's "black" USB port (not "grey") via the included USB extension cable and the Lightning-cable that came with your Apple device or an Apple Certified Lightning-to-USB cable (sold separately). You can control CarPlay from the Kenwood receiver's touchscreen controls or use Siri to control to control CarPlay with just your voice. You'll be able to use CarPlay to get directions, make phone calls, listen to voice mails, send/receive text messages, select music, and even control Apple HomeKit compatible devices in a way that keeps you focused on the road ahead.

• Navigation Maps: The power and simplicity of Apple Maps comes to your dashboard; complete with turn-by-turn direction, traffic conditions, and estimated travel time. You can enter a new destination or choose a favorite or recent destination using the head unit's touchscreen or by simply asking Siri. CarPlay can also predict where you most likely want to go using addresses from your email, text messages, contacts, and calendars. If you have iOS 12.0 or newer on your iPhone with the latest version of Google Maps or Waze, you can choose to navigate via the Google Maps or Waze application instead of Apple Maps. Google Maps and Waze do not support Siri voice control, but will have their own proprietary voice control function which has to be accessed through a touchscreen icon on the receiver.
• Phone & Messages: You'll be able to make calls, return missed calls, and listen to voicemails through the Kenwood receiver. Siri can also help you do all these things. In addition, Siri can send, read, and reply to your text messages for you; so you never have to look at your iPhone while driving.
• Music Library: Access your favorite artists, songs, and playlists from Apple Music on your iPhone using the Kenwood receiver's touchscreen. Or, just tell Siri what you'd like to listen to. The head unit's touchscreen will display song/artist information, as well as album art in the background.
• Apps: CarPlay also supports additional audio apps that you've downloaded to your iPhone for enjoying music, radio, sports, news, podcasts, & audiobooks (subscriptions and fees may apply). Control these apps from the head unit's touchscreen just like you would from your iPhone. Current supported apps include:
  • Music & Radio: Amazon Music, Tidal, Pandora, Spotify, iHeart Radio, TuneIn Radio, Slacker Radio, & more.
  • News, Sports & Podcasts: Stitcher, MLB.com At Bat, NBA, CBS Radio News, NPR One, OverCast, & more.
  • Audio Books: Audiobooks.com & Audible
• Apple HomeKit Compatible: CarPlay now supports control of Apple HomeKit enabled devices (sold separately) through Siri. Using CarPlay in your vehicle, you can ask Siri to close or open your garage door, turn on or off home lighting, increase or decrease the temperature of your thermostat, as well as control select functions of other Apple HomeKit enabled devices and appliances. Click here for a list of compatible Apple HomeKit products.

Mirroring for Kenwood App: By installing the Mirroring for Kenwood app (for Apple iOS 11.0+ and Android OS 5.0+), your compatible smartphone device is seamlessly displayed on the receiver's screen via USB, while audio from your smartphone is transmitted to the receiver via Bluetooth. You can enjoy a variety of apps such as YouTube, Netflix, and More. Depending on the app, the Kenwood receiver's monitor may not display in full screen. Touch control is possible from both the Kenwood head unit's touchscreen and your Android smartphone's touchscreen (iPhone has to be controlled from the phone's touchscreen only). Click here for instructions on how to setup the Mirroring for Kenwood App.

• The Mirroring for Kenwood app requires a USB and Bluetooth connection between your Apple iOS or Android device and the Kenwood head unit. Use the head unit's "black" USB port for Apple iOS and Android OS devices (the "grey" USB port does not support mirroring).
• USB Mirroring will require that the vehicle's parking brake be engaged to mirror your smartphone or view any content from your smartphone on the Kenwood receiver's touchscreen monitor. Only audio content will be heard without the vehicle's parking brake engaged.
• During USB mirroring on an Apple iOS device, when a call is received, USB mirroring disconnects and needs to be manually reconnected. USB Mirroring is disconnected when the iPhone goes to the sleep mode.

Miracast for Android (Wireless Mirroring): Wi-Fi Certified Miracast lets you wirelessly send the display of your compatible Android OS 4.2-up device that also supports Miracast to the receiver's touchscreen monitor. This allows you to view practically any content that is playing on your compatible Android device on the receiver's touchscreen (vehicle's parking brake must be engaged). You'll also be able to use the receiver's touchscreen to control your compatible Android smartphone.

• Not all Android OS 4.2-up devices will support Miracast. Future Android OS updates may cause the Miracast feature to not function properly. Click here to check for Miracast compatible Android smartphones and tablets.
• Miracast (wireless mirroring) will require that the vehicle's parking brake be engaged to mirror your smartphone or view any content from your smartphone on the receiver's touchscreen monitor. Only audio content will be heard without the vehicle's parking brake engaged.
• The Apple iPhone does not support Miracast or wireless mirroring.

iPod/iPhone Music Playback Only: If you don't desire Apple CarPlay, you can also connect your Lightning-connector Apple iPod/iPhone to the DDX9907XR for music playback & control only using the Lightning-to-USB cable that came with your Apple device or an Apple Certified Lighnting-to-USB cable (sold separately). Simply plug your compatible Apple device into either of the receiver's rear-panel USB ports. The Kenwood receiver supports playback of stored music and music apps, along music browsing and playback control, plus song/artist information and album art.

• Head Unit Control: The Kenwood head unit allows you to navigate your iPod/iPhone's music library from its front-panel & touchscreen controls. The head unit offers unique search features like Category Search & Link Search, plus offers basic playback functions like Play/Pause, Fast Forward/Rewind, Previous/Next Track and Repeat/Random of your connected iPod/iPhone. You'll also still be able to control your connected iPod touch or iPhone from its own touchscreen so you can access other music applications.
  • Category Search: Category Search allows you to navigate your iPod/iPhone's music library by Playlist, Artists, Album, Song, Genre, Song, Podcast, Audiobook, or Radio. You can then search each of these categories using the head unit's touchscreen slider function (categories will be listed in alphabetical order).
  • Link Search: The head unit offers Link Search, which allows you to play songs related to the currently playing song. Link Search lets the head unit create an album list of the currently playing artist, a song list of the currently playing album, an artist list of the currently playing genre, or an album list of currently playing composer.
• Song/Artist Info & Album Art: The DDX9907XR will display your iPod/iPhone's stored music information including Track number, Elapsed playing time, Song/Album title, Artist name, and Album art. The unit will also display song/artist info and album art from select music apps.

Apple Device Compatibility Chart: The Kenwood DDX9907XR is "Made for iPod/iPhone" compatible and supports the following iPod/iPhone model features (as of 5/13/2020) -

Built-In WiFi: The Kenwood DDX9907XR receiver's built-in WiFi can only be used for Wireless Apple CarPlay, Android Auto Wireless, and Wireless Mirroring via Miracast for select Android devices. The built-in WiFi is not designed to be used with WiFi hotspots.

Cellular & Data Plan Requirements: Access to CarPlay, Android Auto, and USB Mirroring apps will depend on the availability of a cellular and/or WiFi network for purposes of allowing your iPhone or Android smartphone to connect to the Internet. Your compatible Apple or Android device will need an active Data Plan account with connection to the Internet via 3G, EDGE, LTE (4G), or WiFi.

GPS Antenna: The included GPS antenna must also be installed for Android Auto and Apple CarPlay navigation maps. The GPS antenna comes with a self-stick pad which mounts it on top of your dash inside the vehicle.

Smartphone Charging: The Kenwood DDX9907XR will also charge (5V/1.5A) your Android smartphone or Apple iPod/iPhone device while connected via USB with the vehicle's ignition switch set to the 'ACC' or 'On' position.

Built-in Bluetooth

Bluetooth 5.0: The Kenwood DDX9907XR is equipped with built-in Bluetooth 5.0 allowing you to make and receive phone calls wirelessly through the receiver; as well as stream music wirelessly from your smartphone to the head unit. In order to use Bluetooth wireless technology, your phone must also be Bluetooth compatible and be able to interpret certain profiles. This unit is compatible with the following Bluetooth Profiles:

• Hands-Free Communication: HFP 1.7 (Hands Free Profile), PBAB 1.0 (Phone Book Access Profile)
• Audio Streaming: A2DP 1.3 (Advanced Audio Distribution Profile), AVRCP 1.6 (Audio/Video Remote Control Profile).

SSP & Auto Pairing: With Secure Simple Pairing (SSP), you can easily pair a Bluetooth enabled phone to the Kenwood DDX9907XR without having to enter pin codes or go through complicated settings. You can even pair your Apple iPhone (iOS 5+) or by simply connecting it to the Kenwood head unit via USB and following a single prompt on the head unit's display. You can pair up to ten Bluetooth-enabled devices to the Kenwood head unit. When an already paired Bluetooth device is in close proximity to the receiver, the auto connection function automatically pairs the two units.

• Dual Phone Connection: Thanks to the Dual Phone Connection feature, two Bluetooth-enabled phones can remain connected to the Kenwood receiver. This means you can an answer an incoming call from either phone from the head unit. Also, both of your phone's contact lists are downloaded to the receiver. To make a call from one of the phones using the Kenwood receiver, you simply have to select Phone 1 or Phone 2 on the head unit's touchscreen.
• Music Mix: The new Music Mix feature allows five Bluetooth audio source devices to be connected to the Kenwood receiver at one time, so you can switch between Bluetooth playback sources a lot easier and quicker. While "BT Audio" source is selected on the head unit, you can simply press the music playback button on your connected Bluetooth source devices to switch between devices and begin music playback. However, you cannot stream audio from two different Bluetooth audio source devices at the same time or combine music libraries or playlists from two different connected devices.

Hands-Free Communication: The head unit supports Bluetooth hands-free communication for your Bluetooth enabled smartphone. Thanks to the latest Hands-Free Profile (HFP 1.7) with wideband speech capability, the Kenwood DDX9907XR provides more natural sound quality and details during wireless calls. The touchscreen controls of the DDX9907XR can be used to dial a number, answer an in-coming call, or end a call. The unit also includes an external microphone (featuring adjustable gain), so you can carry on your side of the conversation while listening to the caller through your vehicles speakers (All or Front only). During a conversation, you can switch between the Private Mode (talking directly on your phone) and the Hands Free Mode.

• Answering a Call: When a call comes in, a ring-tone will be heard through your vehicle's speaker and the caller's name or phone number will be displayed. You can answer the call from the head unit's touchscreen, or setup the head unit to automatically answer the incoming call immediately (1-30 seconds).
• Dialing a Number: Using the DDX9907XR, you can dial a phone number in one of the following ways:
  • Entering a Phone Number: Allows you to directly dial a phone number from the head unit's touchscreen keypad.
  • Preset Dialing: Allows you to register up to 5 phone numbers for quick dialing. The preset numbers can be accessed from the head unit's touchscreen.
  • Phonebook: You can download phonebook data (up to 1000 entries) from your phone to the DDX9907XR. You can then dial by using the downloaded phone book and search it alphabetically.
  • Call History: The Call History is a list of calls that have originated from and were received by this unit that you can dial. You can select Outgoing, Incoming, or Missed calls (up to 50 entries total).
  • Voice Dialing: If your smartphone supports voice recognition (including Siri and Google Voice), then you can dial out by voice command. Simply speak into the included microphone.

Wireless Audio Streaming: The Kenwood DDX9907XR supports wireless audio playback (A2DP) and control (AVRCP) of a Bluetooth-enabled smartphone or audio player, plus song/artist information display. You are able to stream your stored music library on your Bluetooth-enabled smartphone, as well as music apps downloaded on your smartphone to the Kenwood DDX9907XR for playback.

• LDAC: LDAC sends approximately three times more data (at the maximum 990 kbps transfer rate) than conventional Bluetooth audio for superior wireless listening. Unlike other Bluetooth compatible coding technologies, it operates without any down-conversion of the Hi-Res Audio content (excluding DSD and MQA), and allows approximately 3x more data than those other technologies to be transmitted over a Bluetooth wireless network with superior sound quality, by means of efficient coding and optimized packetization. Your Bluetooth device must also support LDAC to enjoy this high-resolution Bluetooth codec. The DDX9907XR also supports SBC for the majority of Bluetooth source devices and AAC for Apple iOS Bluetooth devices.
• Advanced Music Browsing: In addition to basic playback functions (Play/Pause, FF/RW, Skip, Random/Repeat), the DDX9907XR lets you browse your stored music by Playlist, Artist, Album, Song, etc. (AVRCP 1.4-up phones only; which includes Android 4.0+ and iPhone 5.0+).
• Song/Artist Information: The head unit will also display your stored music and music app's song information; such as Artist name and Song/Album title (not compatible with all apps).

External Microphone: The Kenwood DDX9907XR includes an external microphone to carry on your side of your phone conversation and voice command dialing. The external wired microphone offers improved audio quality versus an integrated microphone, so you can be heard easier over noisy traffic and road noise. You can adjust the volume level, echo cancellation, and noise reduction of the microphone without affecting the other sources. The external microphone features an attached 10' cable terminated by a right-angle 3.5mm connector which plugs into the mic input on the rear-panel of the head unit. The microphone offers an integrated mounting bracket which can be clipped to your vehicle's sun-visor or taped to your dash.

HD+SiriusXM+Apple Radio

HD Radio: With its built-in HD Radio tuner, you can receive digital AM/FM broadcasts from local stations where available. HD Radio significantly improves AM/FM audio quality and reception, as well as includes information such as artist name and song titles or traffic news, viewable on the receiver's display. HD Radio Technology will deliver high-quality digital sound. AM digital will have FM-like quality in stereo (80dB SNR @ 40-15kHz), while FM digital will have CD-like quality (80 dB SNR @ 20-20kHz) with static free and clear reception. The unit's built-in HD Radio tuner allows analog AM/FM tuning as well.

• Seek Modes + Direct Access Tuning: You can choose one of three seek modes: Auto 1 (seek tuning), Auto 2 (cycles through and tunes the selected band's preset stations only with each button press), or Manual. You can also setup the DDX9907XR to search only HD Radio stations. In addition, you can directly access an AM/FM station by entering in the frequency number using the unit's LCD touchscreen.
• Tuner Presets: You can store 15 FM presets and 5 AM presets (total of 20). Not only does the DVD receiver's tuner allow you manually enter your desired presets you can choose to have the unit automatically put stations with good reception in the memory banks automatically; this is a handy feature when traveling.
• Station Info/Album Art AM/FM digital stations can offer text and data such as artist names and song titles; as well as Album Art.
• Multicasting & Emergency Alerts: In addition to conventional broadcasts, with HD Radio broadcasting it is possible to choose from up to 8 multicast programs (HD1 to HD8). HD Radio also delivers critical and life-saving messages to the public during emergency situations.

SiriusXM-Ready: The Kenwood head unit is SiriusXM Ready and compatible with the SiriusXM Vehicle Tuner (220SXV300, sold separately). The SiriusXM Vehicle Tuner supports SiriusXM programming with access to 140+ SiriusXM channels via subscription; check out the most popular SiriusXM subscription packages here. Additional features of the SiriusXM tuner include:

• Channel List w/ Category Search: A channel list displays a list of all available channels. The Category Search function searches for channels in a certain category.
• Song/Artist Info + Album Art: Displayed Information such as Channel Name, Channel Logo, Artist Name, Song Title, & Album Art can be viewed on the head unit's LCD
• Smart Favorite Presets with TuneStart: Up to 20 SiriusXM Satellite Radio station presets can be saved. Up to 6 of your SiriusXM presets on the current band are recognized as Smart Favorites for advanced features such as TuneStart. TuneStart allows you to choose whether to start a song from the beginning or from its live point when tuning to a Smart Favorite channel.
• Instant Replay: You can pause, rewind, and replay up to 60 minutes of current channel. You'll also be able to rewind and replay the last 30 minutes of content from your six Smart Favorite channels.
• Alerts: When a broadcast program related to the your favorite artist or song starts, a message appears to allow you to switch to that station.
• Parental Control: Channels containing unsuitable content for children can be blocked.

Apple Music Radio (iPhone Only): You can playback Apple Music Radio on your USB or Bluetooth connected Apple iOS 8.0+ device through the Kenwood DDX9907XR. With a WiFi or cellular connection on your iPhone, you can listen to Beats 1 and other live radio stations through the Kenwood receiver. Apple Music subscribers can also listen to on-demand stations for almost any genre or create their own stations. You can use the head unit's touchscreen to select between your Apple Music Radio stations. The touchscreen will also display song/artist/album information, along with Album art.

Disc/USB Playback

Compatible Discs: The Kenwood receiver's touchscreen monitor electronically slides down for loading and ejecting discs. The Kenwood DDX9907XR supports playback of DVD-Video, DVD-R/RW, DVD+R/RW, CD-Audio, and CD-R/RW discs. The unit supports a variety of audio & video files recorded onto a CD-R/RW, DVD-R/RW, or DVD+R/RW disc (see chart below).

• Disc Auto Reload: The unit will automatically reinsert a disc if it's ejected, but not removed for 20 seconds or more.
• Parental Control (DVD only): Parental Control allows you to restrict DVD playback according to a predetermined level. You can select a parental control rating from 0-8, which is protected by a 4-digit password.

USB MSC Playback (Dual USB Ports): The Kenwood DDX9907XR features two rear-panel USB inputs (one is "black" and the other is "grey"). Each rear-panel USB input consists of a USB (type-A) port attached to the rear-chassis by a 7" pigtail and comes with a 39" USB extension cable. These USB ports can be used for connection and control of up to two portable USB mass-storage class (MSC) devices, such as a USB thumbdrive. The USB ports enable playback of a variety of audio (including Hi-Res), video, and photo files stored on a compatible USB memory device (see chart below). USB portable audio devices that can be charged via USB will be charged when plugged into the DVD receiver's USB ports (5V/1.5A), and the vehicle's ignition switch is set to ACC or On.

File Compatibility: The Kenwood DDX9907XR supports the following types of audio (including Hi-Res), video, and photo files recorded onto a disc or loaded onto a USB mass storage class device.

Control Functions: The Kenwood head unit allows you to navigate the music library on your USB device from its touchscreen controls. The head unit offers unique search features like Folder/Track List, Category Search, and Link Search; plus offers basic playback functions like Play/Pause, Fast Forward/Rewind, Previous/Next Track and Repeat/Random.

• Folder/Track List: The Folder/Track List allows you to search folders and audio/video/picture files stored on a disc or USB device.
• Category Search: You can navigate music stored on your USB memory device by Playlist, Artist, Song, or Album. The content within each category will be listed in alphabetical order.
• Link Search: Link Search allows you to play songs related to the currently playing song. The head unit can create an album list of the currently playing artist, a song list of the currently playing album, an artist list of the currently playing genre, or an album list of currently playing composer.

Song/Artist Info with Album Art: The Kenwood DDX9907XR will display song/artist information as well as album art for MP3, WMA, AAC, and FLAC music tracks (if encoded).

Firmware Updates (via USB): The unit's operating system is updateable via free downloadable software from Kenwood's support site. Firmware downloads assist in maintaining system performance when using external devices and emerging technologies. Firmware/software updates can be downloaded onto a USB thumbdrive from your computer and then inserted into the head unit's USB port and uploaded. Go to Kenwood's Support Site for the latest firmware/software updates.

Audio & DSP Section

Excelon Reference (XR) Series: The DDX9907XR DVD receiver is part of Kenwood's Excelon Reference (XR) series line-up. It incorporates the latest technologies and delivers the highest sonic performance. To ensure the best possible sound quality, the receiver uses custom-made and carefully selected parts; such as audio quality power supply capacitors, high quality coupling capacitors, gold-plated 5V pre-outs, and cross-shaped panel structures. These parts are further optimized through meticulous tuning of the component values and circuit paths. Kenwood's Excelon Reference (XR) series represents exceptional audio quality with long-lasting dependability, and is backed by a 2 Year warranty.

24-Bit/192kHz DAC: The Kenwood DDX9907XR utilizes a 24-bit/192kHz digital to analog converter (DAC) for superior sound quality with a signal to noise ratio up to 90.5dB.

MOSFET Amplifier: The Kenwood DDX9907XR is equipped with a MOSFET amplifier. Compared to conventional power supplies, the MOSFET amplification circuit is smaller and more efficient, and it delivers increased power with less distortion and absolutely zero on/off switching noise. More power means louder and cleaner music at higher volumes because you're not pushing the limits of the amplification circuit. The power output specs for the DDX9907XR are as follows:

• Full Bandwidth Power: 22 watts RMS x 4 channels (at 4 ohms, 20-20kHz, 1% THD)
• Maximum Output Power: 50 watts x 4 channels

Gold-Plated 6ch/5V Pre-Outs + Sub Control: The DDX9907XR features front, rear and subwoofer 5.0-volt pre-outs. The front and rear speaker pre-outs are balance and fade adjustable. The subwoofer preamp output is non-fading and offers independent level control (-50 to +10 dB). The pre-outs are gold-plated for superior signal transfer.

Vehicle Setup: Indicate your vehicle type, speakers sizes installed in your vehicle, your rear speaker location, plus your main listening postion and the distance of each speaker to the your main listening position to optimize the sound inside your vehicle.

• Vehicle Type: You can select your vehicle type to automatically set the delay time of each speaker for timing adjustment of sound output of each channel to have the highest surround effect. Choose from Compact, Full Size Car, Wagon, Mini Van, SUV, or Off.
• Speaker Size: Select which size speakers are in your vehicle - Tweeter (Small, Medium, Large, None); Front & Rear (3.5", 4", 4.75", 5", 6.5", 6.75", 7", 4x6", 5x7", 6x8", 6x9", 7x10", None); Subwoofer: 6.5", 8", 10", 12", 15"+, None).
• Speaker Locations: You can indicate the location of your front and rear speakers - Front (Upper Door, Lower Door, On Dash, Under Dash) and Rear (Upper Door, Lower Door, Parcel Shelf/Rear Deck, Upper Cargo Area, Lower Cargo Area.
• Listening Position: You can choose from All, Front Left, Front Right or Front. You can even use the Front Focus feature to focus the sound image on the front of the selected seat.
• Digital Time Alignment: You can select to manually fine tune your vehicle's sound stage, using Digital Time Alignment (DTA) by selecting the distance (0-20') for each individual speaker in the vehicle compared to your listening position. In addition, you're able to adjust the output level (-8 to 0dB) of each speaker.

Crossover Network: The Kenwood DDX9907XR lets you choose between a 2-way or 3-way crossover network for your car audio application.

• 2-Way Crossover: Allows you to set high-pass and low-pass crossovers for a standard Tweeter, Front, Rear, and Subwoofer speaker setup.
  • Tweeter: high pass filter (HPF)
    • Frequency: 1kHz, 1.6kHz, 2.5kHz, 4kHz, 5kHz, 6.3kHz, 8kHz, 10kHz, 12.5kHz
    • Gain: -8 to 0 dB
  • Front & Rear: high pass filter (HPF)
    • Frequency: 30Hz, 40Hz, 50Hz, 60Hz, 70Hz, 80Hz, 90Hz, 100Hz, 120Hz, 150Hz, 180Hz, 220Hz, 250Hz, Through (Full-Range)
    • Slope: -6dB, -12dB, -18dB, -24dB
    • Gain: -8 to 0 dB
  • Sub: low pass filter (LPF)
    • Frequency: 30Hz, 40Hz, 50Hz, 60Hz, 70Hz, 80Hz, 90Hz, 100Hz, 120Hz, 150Hz, 180Hz, 220Hz, 250Hz, Through (Full-Range)
    • Slope: -6dB, -12dB, -18dB, -24dB
    • Phase: Reverse (180°), Normal (0°)
    • Gain: -8 to 0 dB
• 3-Way Crossover: Allows you to set high-pass and low-pass crossovers for a complex 3-way speaker system with Highs, Mids, and Sub.
  • Tweeter: high pass filter (HPF)
    • HPF Frequency: 1kHz, 1.6kHz, 2.5kHz, 4kHz, 5kHz, 6.3kHz, 8kHz, 10kHz, 12.5kHz
    • Slope: -6dB, -12dB
    • Phase: Reverse (180°), Normal (0°)
    • Gain: -8 to 0 dB
  • Midrange: high pass filter (HPF) & low pass filter (LPF)
    • HPF Frequency: 30Hz, 40Hz, 50Hz, 60Hz, 70Hz, 80Hz, 90Hz, 100Hz, 120Hz, 150Hz, 180Hz, 220Hz, 250Hz, Through (Full-Range)
    • LPF Frequency: 1kHz, 1.6kHz, 2.5kHz, 4kHz, 5kHz, 6.3kHz, 8kHz, 10kHz, 12.5kHz
    • Slope: -6dB, -12dB
    • Phase: Reverse (180°), Normal (0°)
    • Gain: -8 to 0 dB
  • Woofer: low pass filter (LPF)
    • LPF Frequency: 30Hz, 40Hz, 50Hz, 60Hz, 70Hz, 80Hz, 90Hz, 100Hz, 120Hz, 150Hz, 180Hz, 220Hz, 250Hz, Through (Full-Range)
    • Slope: -6dB, -12dB
    • Phase: Reverse (180°), Normal (0°)
    • Gain: -8 to 0 dB

Equalizer: The Kenwood DDX9907XR offers 8 EQ Presets for easy adjustment, a 13-band EQ for customized tuning, and a Drive EQ mode to overcome road noise. Separate EQ settings and EQ presets can be stored for each source or you can apply one EQ preset or curve to all sources.

• Preset EQ: The integrated equalizer offers 8 preset sound modes (Flat, Pops, Easy, Top40, Jazz, Powerful, Rock, or User 1-4) suitable for the music genre of your choice.
• 13-Band EQ: The User modes (1-4) allows you to manually adjust the head unit's 13-band EQ (62.5Hz, 100Hz, 160Hz, 250Hz, 400Hz, 630Hz, 1kHz, 1.6kHz, 2.5kHz, 4kHz, 6.3kHz, 10kHz, & 16kHz). Each frequency's gain level can be adjusted from -9dB to +9 dB.
• Drive EQ: The Drive EQ mode helps you hear your music over road noise. It boosts certain frequency ranges that become hard to hear due to road noise.

Music Enhancements: You can restore the sound lost due to audio compression, as well as enhance the sound by virtually manipulating the soundscape.

• Realizer: When MP3, WMA, or AAC files encoded at a low bit rate (less than 96 kbps, 44.1k, 48kHz) are played, the Realizer feature boosts low frequencies which can be lost during compression. Set to Level 1, Level 2, Level 3, or Off.
• Supreme: When MP3, WMA, or AAC files encoded at a low bit rate (less than 96 kbps, 44.1k, 48kHz) are played, the Supreme Setting function restores their high frequencies so the sound quality is closer to files encoded at a high bit rate. The processing is optimized for the compression format and the bit rate used. When the Supreme Setting is Off, the unit plays the original sound stored in the audio file.
• Space Enhancer & Stage EQ: You can set the Space Enhancer to Small, Large, or Off. Each setting value indicates the soundscape level. You can also virtually raise the sound position heard from your speakers; the Stage EQ can be set to High, Middle, Low, or Off.

Volume Level & Bass Management: The DVD receiver offers several volume level adjustments to tailor the audio output of your sources. The DDX9907XR also provides bass management to get the most impact out of your system.

• Volume Offset: The level of each source may be independently adjusted to prevent radical leaps in output volume when switching from one source to another. The available settings range from -8 to +6.
• Dynamic Range: The dynamic range can be adjusted by selecting either Normal, Wide or Dialog. Dialog makes the total sound volume become larger as compared with Wide and Normal, allowing you to listen to the movie's dialogue more clearly. This is effective only on Dolby Digital software.
• Bass Boost & DC Extension: The DDX9907XR features a four-step Bass Boost (Off/1/2/3) to enhance your music's lower frequencies. When "Bass DC Extension is turned on, frequencies lower than 62.5 Hz are set the same gain level as the unit's 13-Band EQ 62.5 Hz gain setting.
• Loudness: This function enhances low and high frequencies to make the sound clearer at lower volumes.

Source Beep: The in-dash receiver provides an audible beep to confirm source selection. This function can be turned On or Off.

AV/Camera/OEM Connectivity

AV Input: The Kenwood DDX9907XR DVD receiver is fitted with a rear-panel minijack (3.5mm) audio/video input to connect external AV sources, such as a game system, Blu-ray player, or TV tuner. The unit's 3.5mm AV input (with the help of the included minijack-to-composite video adapter cable) can be configured to act as a camera input for adding a rear, front, or side camera.

AV Output (with Dual Zone): The unit features a composite video jack and 3.5mm audio jack to output AV signals to an optional monitor and headphone system. The unit's AV output can be set to Disc, AV-In, USB, or Off. Volume of the second zone can be controlled by the DVD receiver or your rear entertainment system.

• If you select USB, iPod, Disc, or Bluetooth as the main source; you cannot select USB as the AV output source.
• If you select CarPlay, Android Auto, or USB Mirroring as the main source; you cannot select Disc or USB as the AV output.

4 Camera Inputs: To enable a smarter driving experience, the Kenwood receiver features 4 camera inputs that allow for the utmost in convenience, flexibility, and safety. With 4 camera inputs, you can connect a backup camera (including an HD backup camera), a front camera (including Kenwood's DRV-N520 Dash-Cam), and side (blind spot) cameras. Alternatively, the 4 camera inputs can support several other configurations, Camera switching is available using the receiver' touchscreen controls, or automatically for side cameras when an optional iDatalink Maestro RR is connected (supported vehicles only).

• HD Rear Camera Input with Guidelines: The receiver is equipped with a HD rear camera input that consists of a composite video jack and reverse trigger wire. The HD rear camera input supports up to a 720p image when used with an HD compatible camera (sold separately). The video from the rear camaera input can be set to display automatically when the vehicle is shifted into Reverse gear (the purple/white wire of the wiring harness must be connected to the vehicle's reverse lamp circuit for automatic video switching). Automatic video switching takes approximately 0.8 seconds. While in reverse, parking guidelines will also appear on-screen making backing up and parking safer and easier.
• Front Camera Input + Dash-Cam Control: There is also a composite video input for connecting a front camera (sold separately), so you can display what's ahead of you on the head unit's touchscreen LCD monitor. In addition to the the front camera input, the head unit is equipped with a proprietary "Dash Cam" control input for connecting Kenwood's DRV-N520 dash-cam (sold separately). The DRV-N520 offers high resolution 1080p recording, plus motion detection technology. The dashboard camera's live and recorded video are displayed on the Kenwood receiver's touchscreen. You'll also control the DRV-N520's settings and parameters from the receiver's touchscreen.
• Additional Camera Inputs: In addition, there is a third composite video camera input for adding a side camera or trailer-towing camera(sold separately). You can also configure the unit's 3.5mm AV input with the help of the include minijack-to-composite video adapter cable to act as a camera input for a side camera (sold separately) or other camera application.

iDatalink Maestro RR Compatible: When an Automotive Data Solutions iDatalink Maestro RR (sold separately) is connected to the Kenwood receiver, it provides a seamless interface with factory infotainment features such as Satellite Radio, USB Media Player, Bluetooth hands-free and music streaming. Factory driver assistance systems and cameras are also retained and work as they did originally. Parking sensor display and dynamic parking guide lines are also added in supported vehicles on the rear camera screen. Vehicle information such as HVAC, performance information, and TPMS can also be displayed. Radar detector information can also be displayed on the screen when used with a compatible K40 or ESCORT radar detector system (sold separately). Retained factory functions and add-on features will vary by vehicle.

Touchscreen & Remote Control

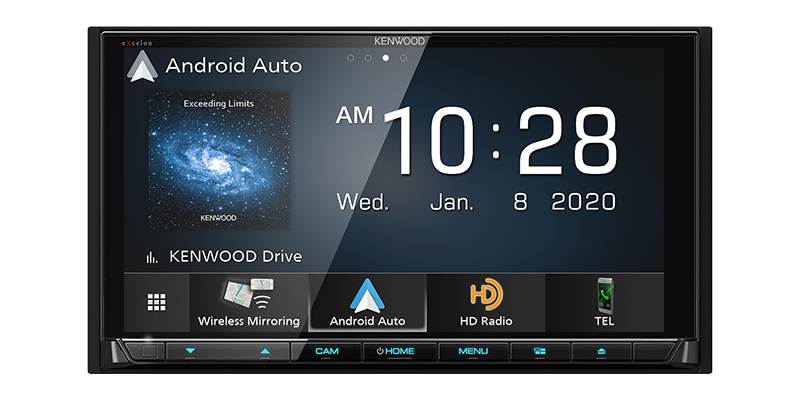

6.75" Electrostatic Capacitive Touchscreen: The Kenwood DDX9907XR features an all-new electrostatic capacitive touch panel and high-definition LCD panel with high luminance white LED backlighting that delivers vivid color, high-contrast, and crisp detail, as well as highly responsive touch operation. This 6.75" widescreen (16:9) electrostatic capacitive touchscreen LCD panel has a high resolution of 1280 (H) x 720 (V) x RGB with 2,764,800 total pixels, a 170° high viewing angle, 600cd/m high brightness, and 900:1 high contrast ratio. The LCD touchscreen panel features a protective film that is anti-finger print, anti-reflection, anti-glare, and anti-shatter. Touchscreen operations include tap, touch & hold, flick left or right, and swipe up or down.

• Custom Home Screen & Shortcuts: You can customize the head unit's Home Screen by rearranging the icons and moving the icons of the twelve sources you use most to the first page of the Home Screen. Four programmable shortcut source keys offer a quick jump to your favorite sources from almost any screen.
• Background Color & Wallpapers: You can choose between nine preset background colors - Blue, Purple, Sky Blue, Yellow, Green, Amber, Red, Pink, White. You can also choose to link the displays color with the unit's front-panel variable color illumination that you set. In addition, there are four preset background images (wallpapers) or you can download your own still image (800x600) for use as the unit's background from a connected USB thumbdrive.
• Customizable Widgets: You can customize the head unit's home screen by selecting multiple widgets. Widget options include album art of current song, clock, compass, photo frame, visualizer, and more. The photo frame widget lets you display a slideshow of images files (up to 500) stored on an inserted USB thumbdrive. Images must be JPEG (5000x5000), PNG (1000x1000), or BMP (1000x1000). Images remain on your USB device and are not downloaded to the head unit; the USB thumbdrive must be inserted for this feature to work.
• Picture & Angle Adjustments: You you can adjust the display screen's backlight, contrast, brightness, color, & tint. The bottom of the touchscreen monitor can be tilted upward at six different positions to provide the best visibility in your vehicle (you can save any one of these positions to the head unit's memory).

Front-Panel Controls w/ Variable Color Illumination: In addition to the touchscreen controls, the unit includes frequently used buttons along the bottom edge of the screen. You can adjust the head unit's button illumination, as well as display background color from the following preset colors - Blue, Purple, Sky Blue, Yellow, Green, Amber, Red, Pink, White or Scan (Scans through all preset colors). You can also select a custom "User" color that is adjusted between Red, Green, and Blue (values range: 0-31).

Dimmer: The dimmer function will dim the head unit's display & front-panel illumination automatically when your vehicle's light switch is turned On, if you have the unit's orange/white "Illumination" wire connected to your vehicle's headlamp circuit. You can also choose to dim the display manually.

Clock & Date: The DVD receiver offers a 12-hour clock & day/month/year display. The clock is visible from any source or menu screen. With your vehicle's key in the accessory or run position, the head unit will continue to display the LCD background image, clock, and button illumination during "Standby" mode. Pressing and holding the Power/Home button turns the unit off completely.

Remote Control: The Kenwood DDX9907XR offers compatibility with factory steering wheel controls (adapter sold separately) and is compatible with Kenwood's IR wireless remote control (sold separately) for added convenience. Kenwood also offers a remote application which allows you to control the receiver from your smartphone device.

• Steering Wheel Controls: The head unit features a factory steering wheel remote control input wire (blue/yellow) within the included wiring harness that lets you keep your vehicle's factory radio steering wheel remote controls when used with an optional steering wheel audio control adapter (sold separately).
• Optional Remote Control: The optional Kenwood KNA-RCDV331 IR wireless remote control (sold separately - not available at Crutchfield) is designed to operate this Kenwood receiver. The wireless remote controller operates off of two supplied "AAA" batteries. The remote operates off of IR transmission so the KNA-RCDV331 must be pointed at the front-panel of the Kenwood head unit within direct line of sight.
• Remote S App: The Kenwood Remote S (for Apple iOS 9.0+ and Android OS 5.0+) is an application that will connect and control the in-dash receiver from your compatible Apple or Android device via Bluetooth, like a wireless remote control. You can select source input, as well as command basic playback controls such as Play/Pause or Previous/Next Track from the touchscreen of your compatible smartphone. This application can also display the receiver's source and song/artist information on the screen of your compatible Apple iOS or Android device.

Parking Brake Interlock: To prevent the display of video while the vehicle is in motion, the light green wire (within harness) must be connected to the vehicle's parking brake detection circuit. You cannot view video unless your vehicle's parking brake is engaged. If you attempt to view video without the parking brake engaged, the unit's LCD touchscreen will simply display a blue screen and "Parking Off". While your vehicle is in motion (parking brake off), you can still view all of the head unit's menu screens/settings, source information, metadata, and album artwork; as well as the built-in CarPlay and Android Auto.
