Features & specs
| General | ||
|---|---|---|
| Speaker Size | 6X9 | |
| Design | 3-way | |
| Tweeter Design | 1.2" Dome | |
| Impedance (Ohms) | 4 | |
| Tweeter Composition | Tetolon | |
| Woofer Composition | Pressed Paper (Water-Repellent | |
| Woofer Surround | Rubber | |
| Parts Warranty | 2 Years | |
| Labor Warranty | 2 Years | |
| Specifications | ||
| Sensitivity (1W at 1 meter) | 94 | |
| Sensitivity at 2.83 volts | N/A | |
| Frequency Response | 35 - 24k Hz | |
| Minimum RMS Wattage | --- | |
| Maximum RMS Wattage | 120 | |
| Peak Power Handling (Watts) | 360 | |
| Top-mount Depth (Inches) | 3 3/8 | |
| Bottom-mount Depth (Inches) | N/A | |
| Cutout Diameter or Length (inches) | 0 | |
| Mounting Height (Inches) | 0.725 | |
| Frame Width | 6.434 | |
| Frame Length | 9.358 | |
Product Research
Features

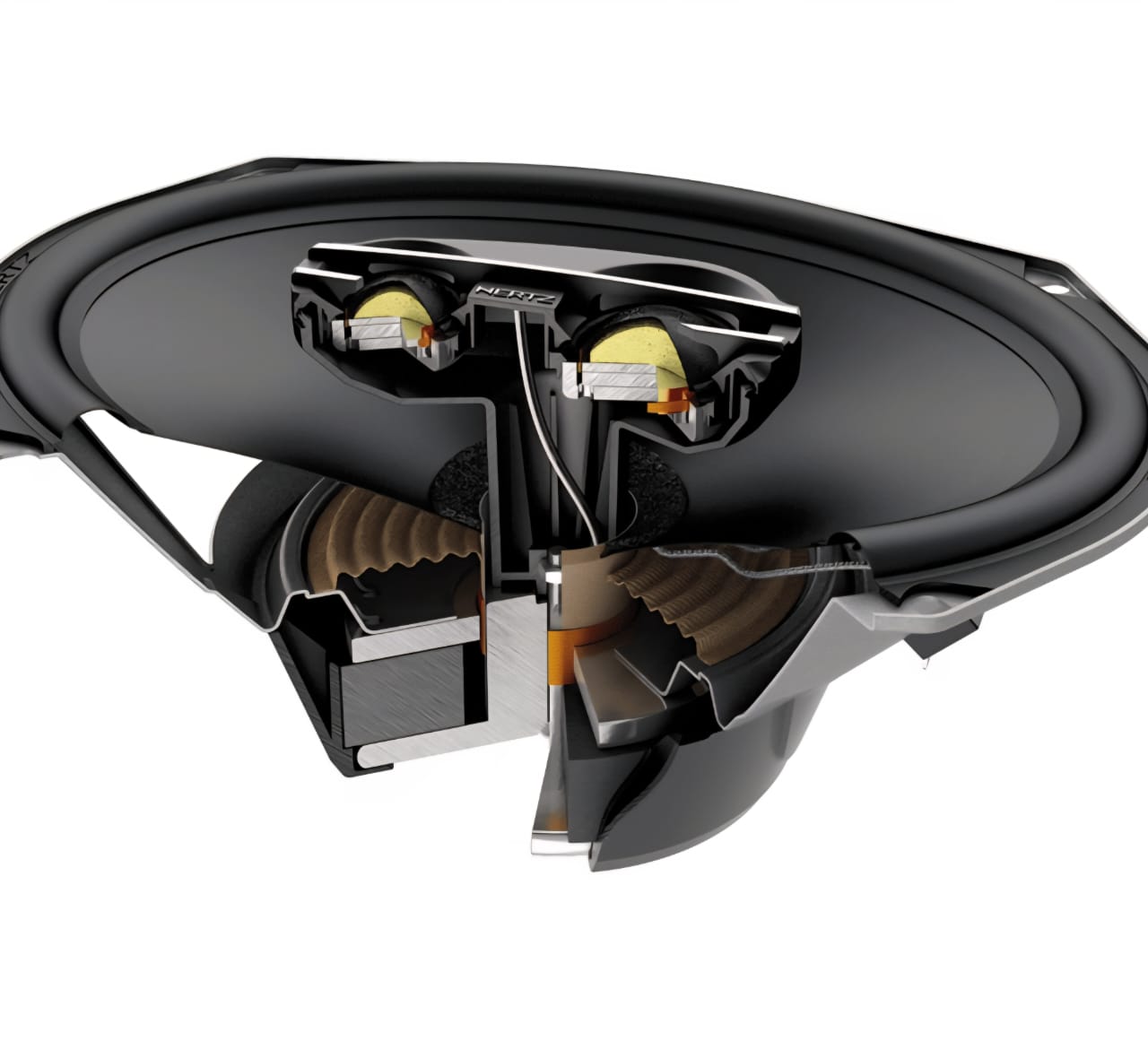

Klippel Verified: The Klippel distortion analyzer, a device that uses a laser and computer software to do large-scale analysis of drivers in motion, helps Hertz optimize the speaker's motor structure, voice coil alignment, and suspension to yield the best possible performance.
