Features & specs
| General | ||
|---|---|---|
| Speaker Size | 6 1/2 | |
| Design | 2-way | |
| Tweeter Design | 1" Dome | |
| Impedance (Ohms) | 4 | |
| Tweeter Composition | Tetolon | |
| Woofer Composition | Semi-Pressed Paper reinforced | |
| Woofer Surround | Rubber | |
| Parts Warranty | 2 Years | |
| Labor Warranty | 2 Years | |
| Specifications | ||
| Sensitivity (1W at 1 meter) | 93 | |
| Sensitivity at 2.83 volts | N/A | |
| Frequency Response | 55 - 22.5k Hz | |
| Minimum RMS Wattage | --- | |
| Maximum RMS Wattage | 95 | |
| Peak Power Handling (Watts) | 285 | |
| Top-mount Depth (Inches) | 2 1/2 | |
| Bottom-mount Depth (Inches) | 2 11/16 | |
| Cutout Diameter or Length (inches) | 5 5/8 | |
| Mounting Height (Inches) | 0.311 | |
| Frame Width | 6.503 | |
| Frame Length | 6.503 | |
Product Research
Features

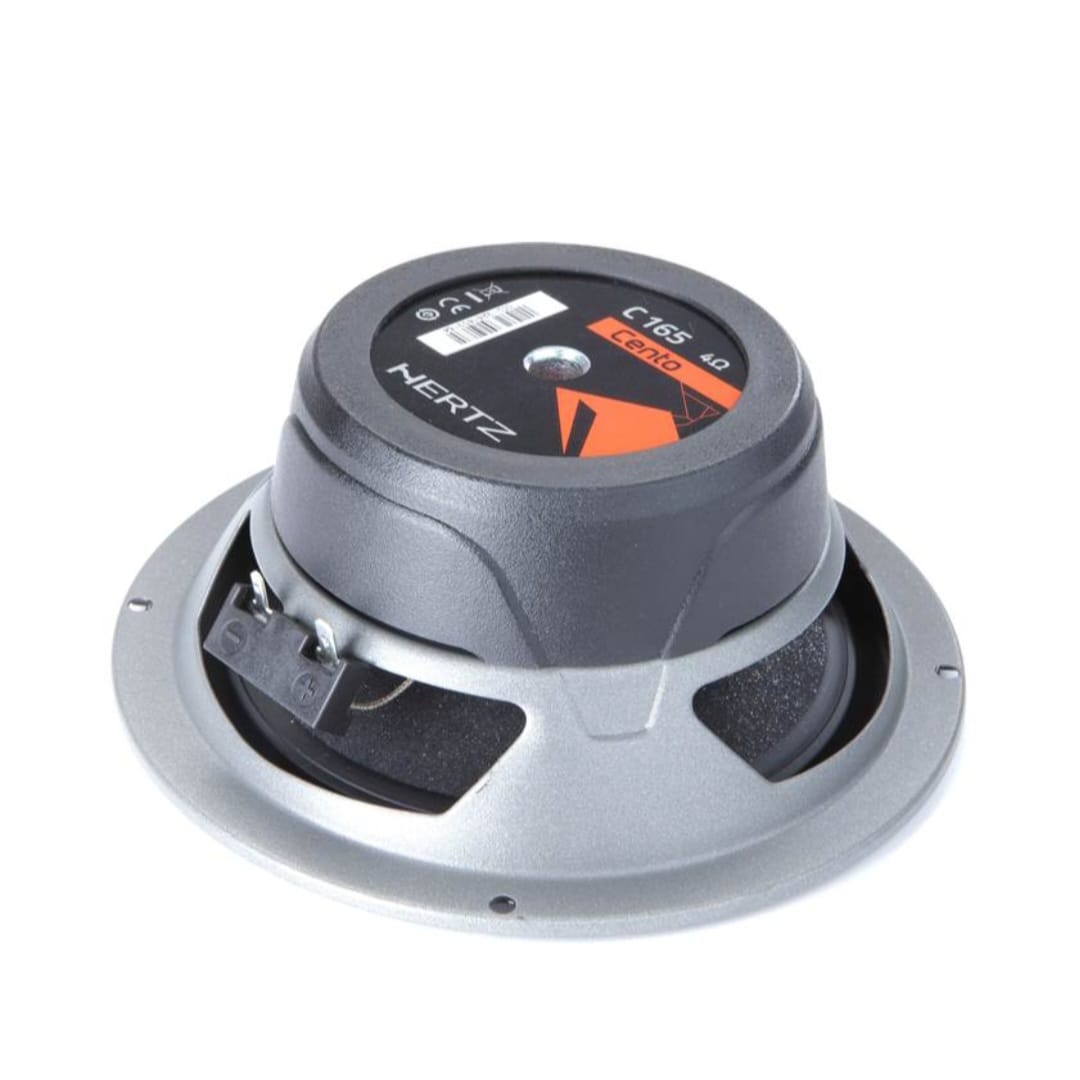

Size Classification Note: Some manufacturers, including Hertz, call this size woofer a 6½". Because it requires a larger cutout than a standard 6½" speaker, Crutchfield has traditionally referred to this size speaker as a 6¾". Please enter your vehicle information to confirm fit.
Klippel Verified: The Klippel distortion analyzer, a device that uses a laser and computer software to do large-scale analysis of drivers in motion, helps Hertz optimize the speaker's motor structure, voice coil alignment, and suspension to yield the best possible performance.

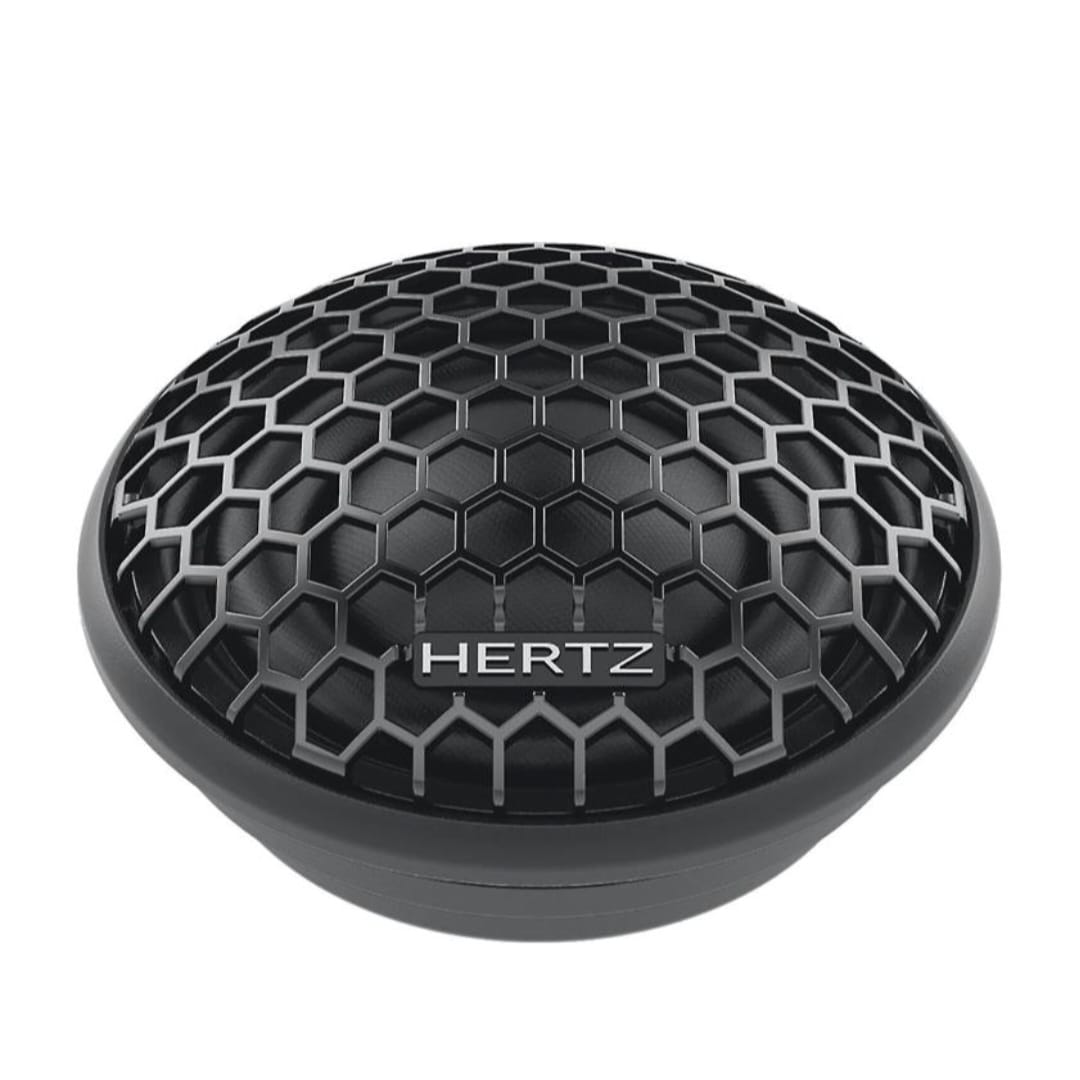

Tweeter Mounting: Brackets are included for flush mounting and angled surface mounting (60° or 30°) the tweeters.
Note: We've found some Hertz speakers with the wrong size tweeter template on the box. Before cutting, make sure the template has the correct diameter.
Tweeter Mounting Dimensions:
| Flush Mount | 60° Angled Surface Mount | 30° Angled Surface Mount | |
|---|---|---|---|
| Mounting Height | 0.436" | 1.375" | 1.735" |
| Depth | 0.46" | N/A | N/A |
| Frame Diameter | 1.728" | N/A | N/A |
| Cutout Diameter | 1.514" | N/A | N/A |
| Frame Width | N/A | 1.745" | 1.745" |
| Frame Depth | N/A | 1.735" | 1.375" |

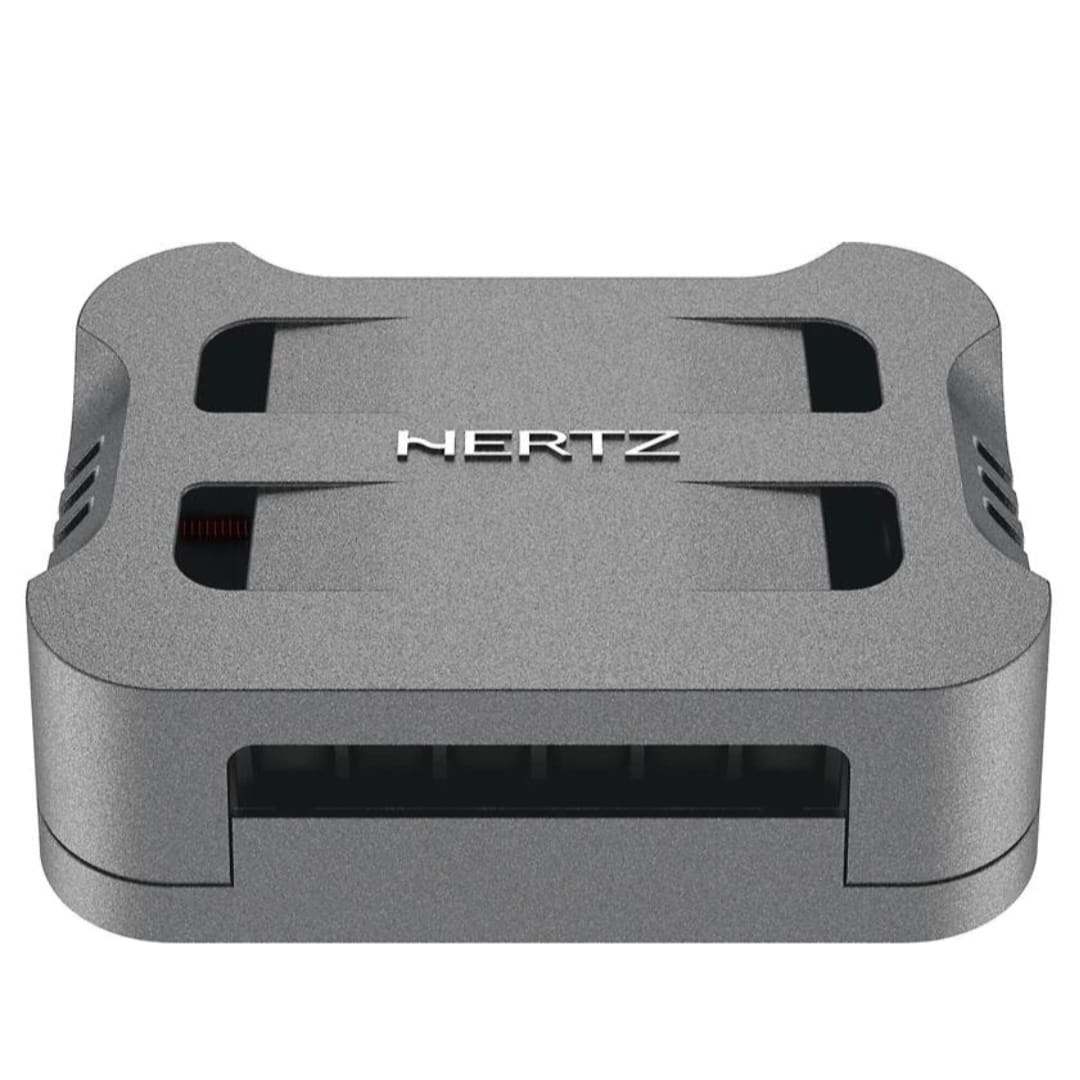

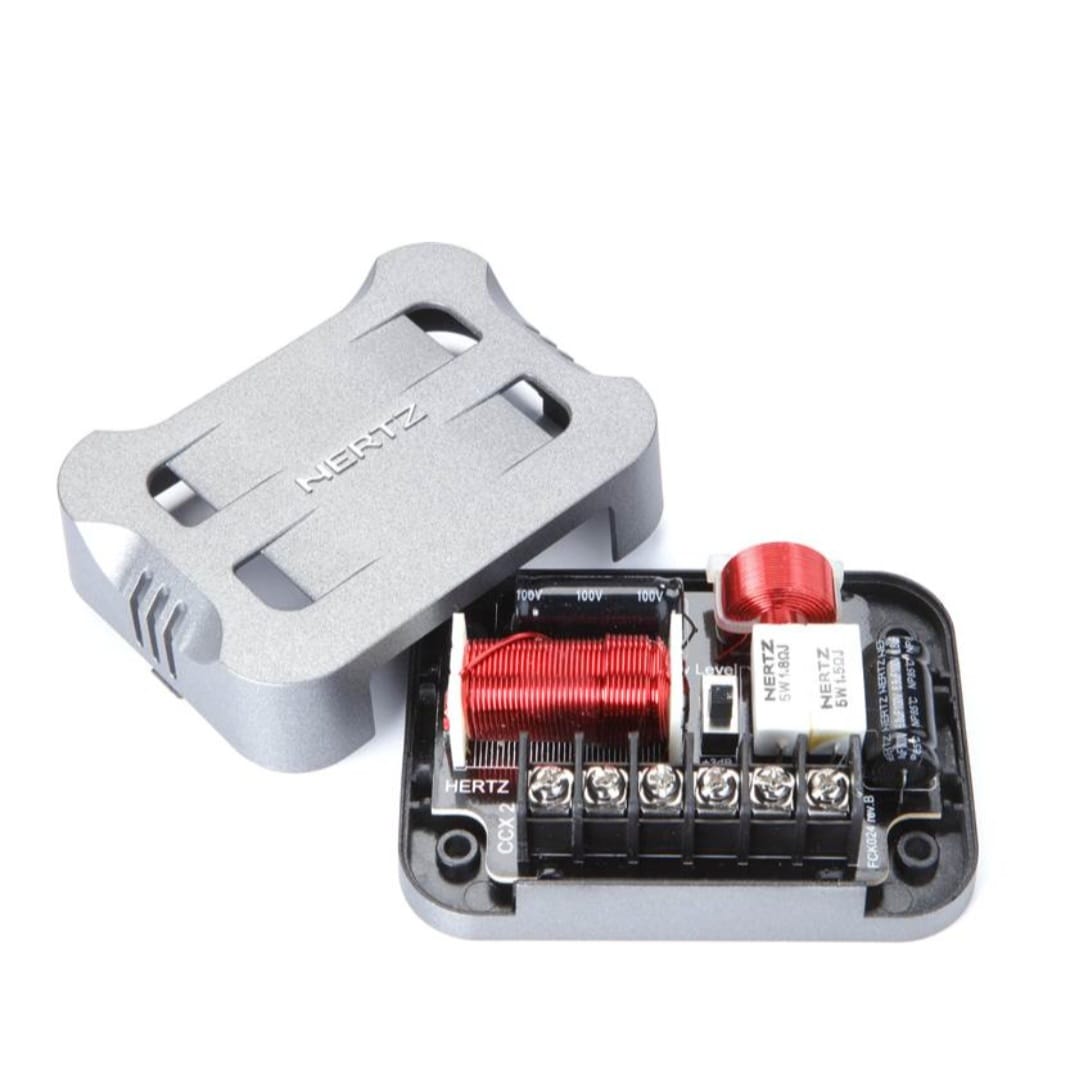

Crossovers: Each crossover has a tweeter output level switch; choose between 0dB (flat) and +3dB. The crossover point is 2.5 kHz and the slope is 12 dB/octave (low pass and high pass). The inputs and outputs are screw terminals that will accept bare wire or spade connectors up to 0.315" wide. The woofer has quick slide terminals, so crimp-on terminals can be added (item number 120FQS10PK, sold separately) to provide the needed terminals.
Crossover Dimensions:
- Width: 4"
- Height: 1⅜"
- Depth: 3"
