Product Research
Features

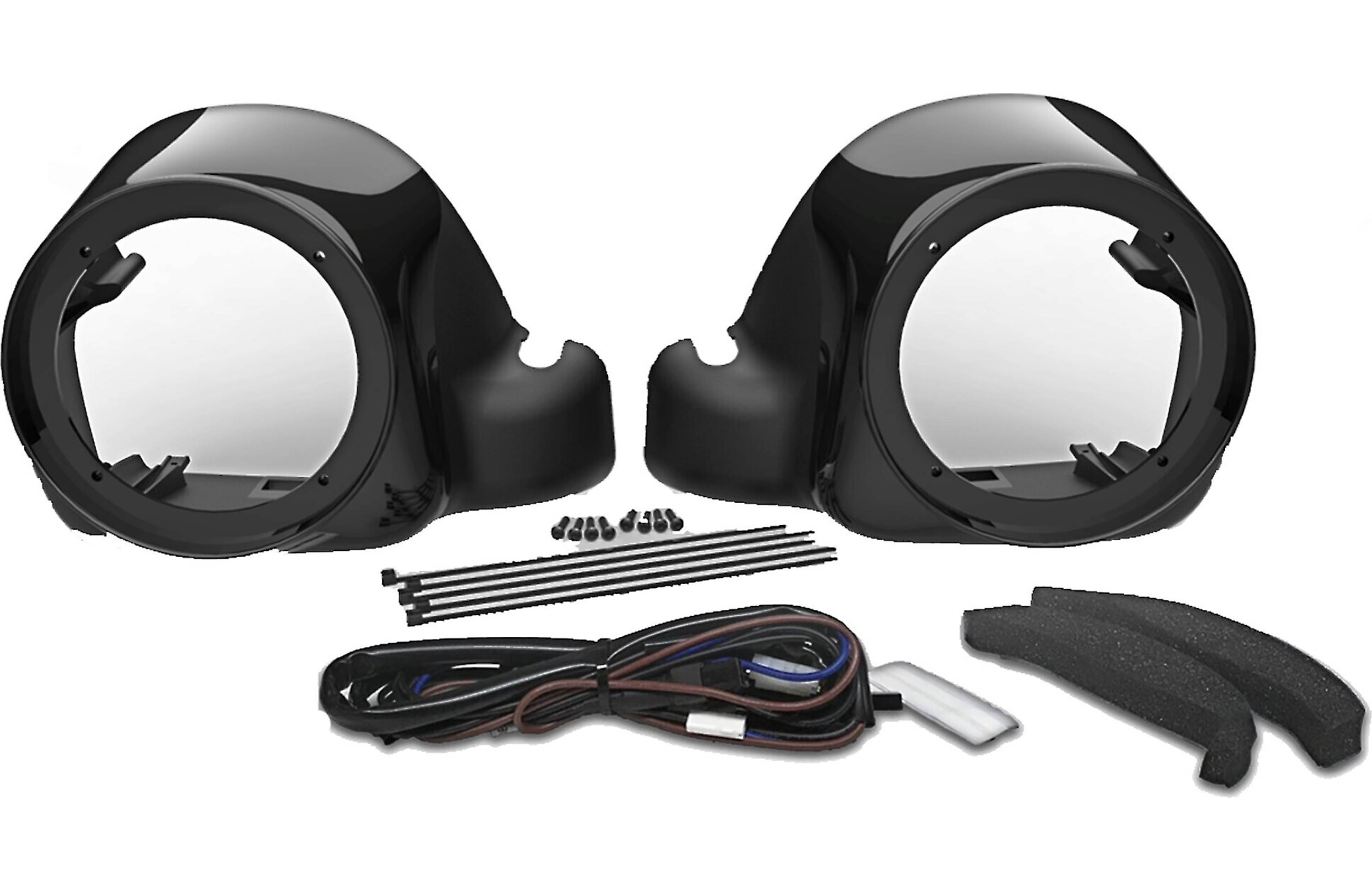

Overview: The Kenwood CA-POD14LC speaker pods let you add a pair of 6.5" speakers (sold separately) to the lower fairing on select 2014-up Harley-Davidson Touring model motorcycles with liquid-cooled heads. The gloss-black speaker pods are designed to match the inner fairing while still providing access to the coolant tank. The CA-POD14LC speaker pods include installation hardware, along with pre-wired speaker harnesses that let you connect into the factory wiring with no cutting or splicing. Each pod features 4 pre-drilled speaker mounting holes with threaded brass inserts installed.
Harley-Davidson Compatibility: The Kenwood CA-POD14LC speaker pods are specifically designed for use in the following Harley-Davidson motorcycles:
- 2014-up Limited Ultra (FLHTK)
- 2014-up CVO Ultra (FLHTCSE)
- 2014-up Tri Glide Ultra (FLHTCUG)
- 2020-up Limited Road Glide Ultra (FLTRK)
- 2016-up Road Glide Ultra (FLTRU)
Speaker Fit: The Kenwood CA-POD14LC speaker pods can accommodate most 6.5" (6-1/2") speakers with a top-mount depth of 2.25" or less and a 4-hole mounting pattern.
Speaker Mounting Specifications:
- Cutout Shape: Round
- Cutout Diameter: 5.80"
- Maximum Frame Diameter: 7.090"
- Maximum Mounting Depth (top-mount): Approximately 2.25"
- Speaker Mounting Holes: 4
- Mounting Hole Diameter: 0.125" (1/8")
-
Mounting Hole Dimensions:
- Perimeter Distance (outside of mounting holes): 4.530"
- Perimeter Distance (inside of mounting holes): 4.262"
- Diagonal Distance (outside of mounting holes): 6.347"
- Diagonal Distance (inside of mounting holes): 6.077"
