Product Research
Features

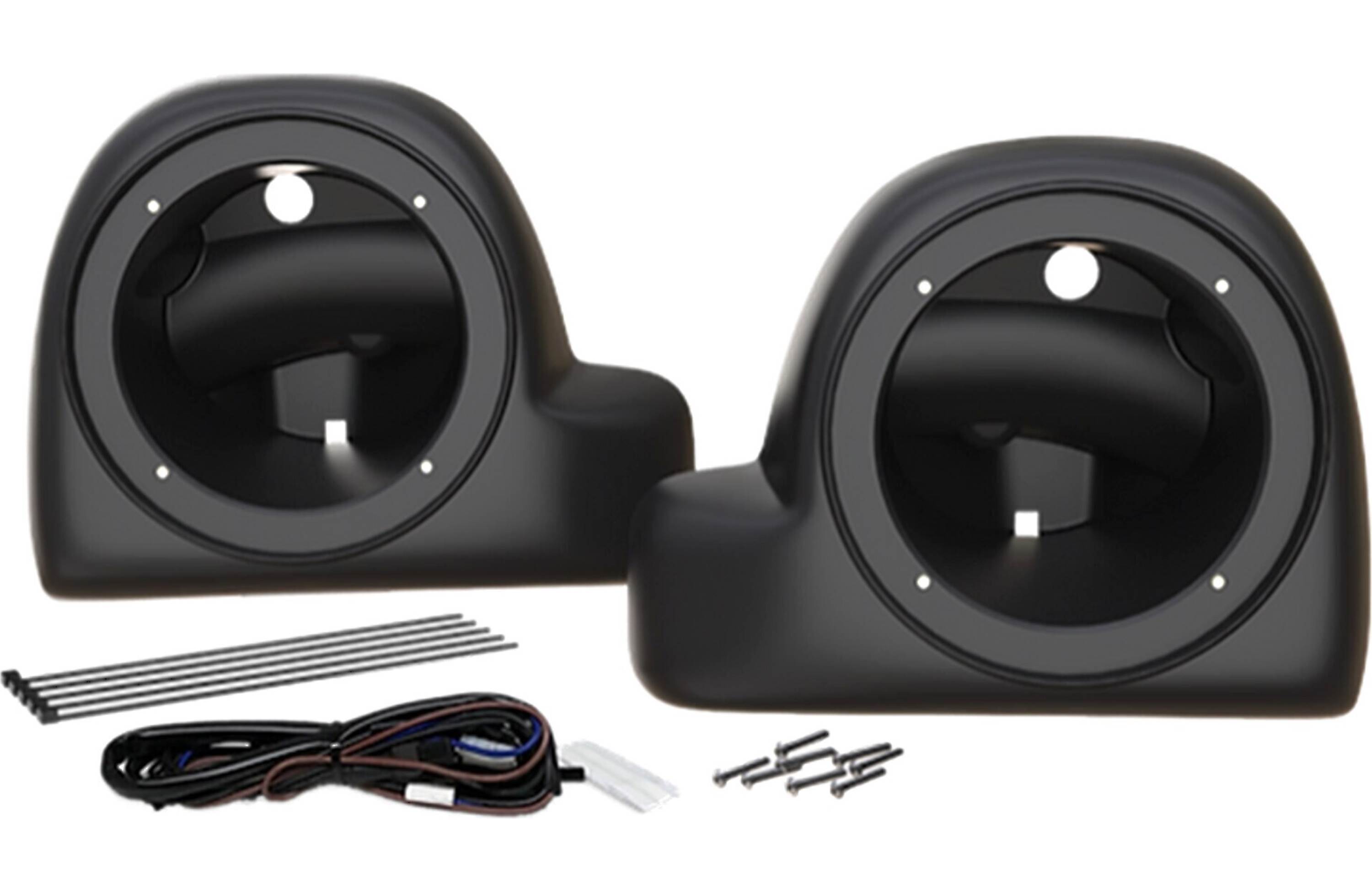

Overview: The Kenwood CA-POD14AC speaker pods let you add a pair of 6.5" speakers (sold separately) to the lower fairing on select 2014-up Harley-Davidson Touring model motorcycles with OEM or aftermarket air-cooled lowers. The injection-molded speaker pods are matte black, complimenting the engine bay area, but can be painted if desired. The CA-POD14AC speaker pods include installation hardware, along with pre-wired speaker harnesses that let you connect into the factory wiring with no cutting or splicing. Each pod features 4 pre-drilled speaker mounting holes with threaded brass inserts installed.
Harley-Davidson Compatibility: The Kenwood CA-POD14AC speaker pods are specifically designed for use in the following Harley-Davidson motorcycles:
- 2014-up Street Glide models with lowers added
- 2015-up Road Glide models with lowers added
Speaker Fit: The Kenwood CA-POD14AC speaker pods can accommodate a wide range of 6.5" (6-1/2") speakers with a top-mount depth of 3" or less and a 4-hole mounting pattern.
Speaker Mounting Specifications:
- Cutout Shape: Round
- Cutout Diameter: 5.710"
- Maximum Frame Diameter: 7.165"
- Maximum Mounting Depth (top-mount): 3.010"
- Speaker Mounting Holes: 4
- Mounting Hole Diameter: 0.125" (1/8")
-
Mounting Hole Dimensions:
- Perimeter Distance (outside of mounting holes): 6.344"
- Perimeter Distance (inside of mounting holes): 4.265"
- Diagonal Distance (outside of mounting holes): 6.347"
- Diagonal Distance (inside of mounting holes): 6.091"
