Description

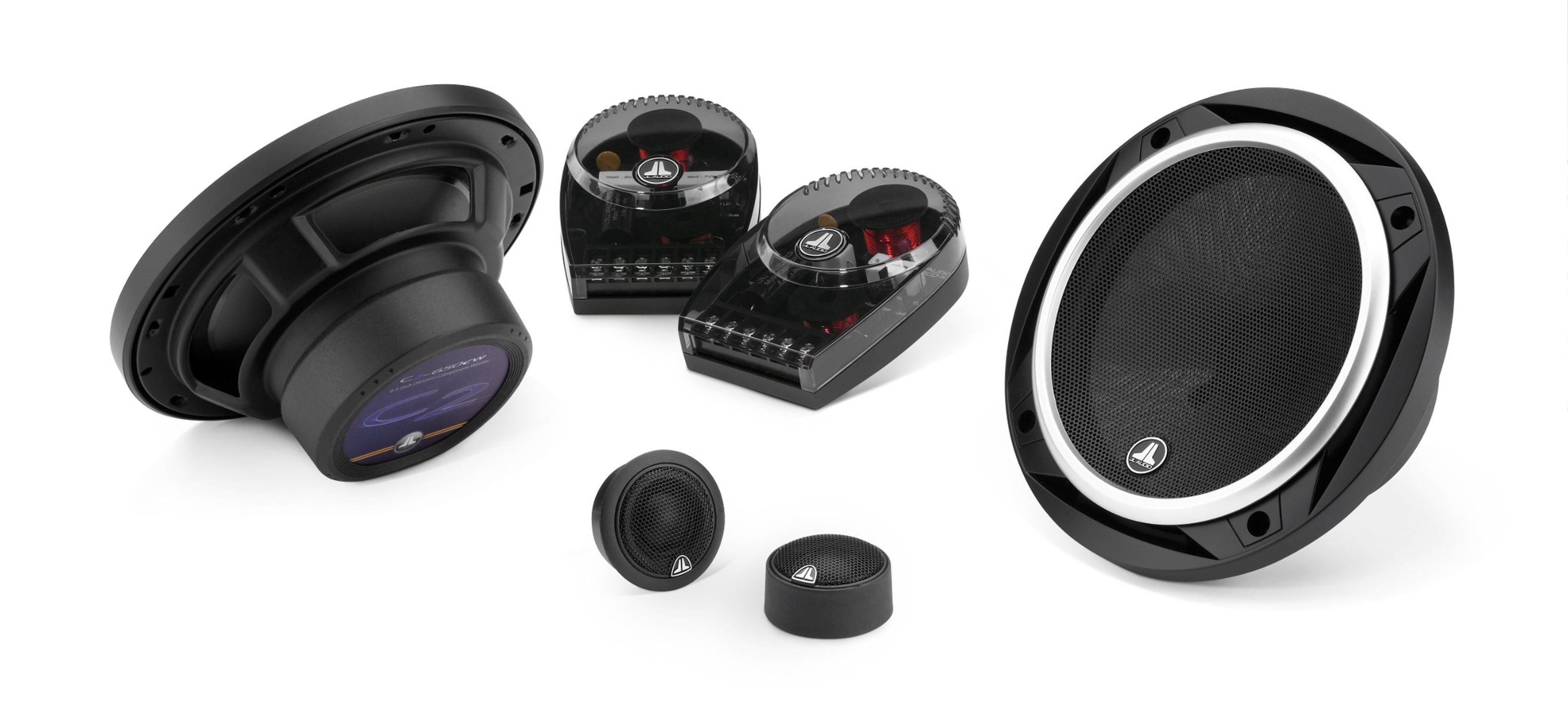

x2-Way Component System: 6.5-inch (165 mm) Woofer, 0.75-inch (19 mm) Silk Dome Tweeter
C2 systems deliver sparkling high-frequency detail, smooth mid-range and powerful mid-bass, thanks to real silk dome tweeters and long linear excursion woofer designs.
The C2-650 system features 6.5-inch (165 mm) component woofers with mineral-filled polypropylene cones, long excursion capabilities and stamped steel frames. The woofer design benefits from JL Audio's vast woofer design experience and advanced modeling systems.
The 6.5-inch (165 mm) format is a direct fit in many vehicles. Multiple mounting patterns are provided on the woofer frame for easy installation into most vehicles that accept a 6.5-inch (165 mm) speaker.
The C2 component tweeters are built with 0.75-inch silk dome diaphragms that deliver smooth, extended response, on and off axis. Flush-mounting and surface-mounting fixtures are included to fit a wide variety of installation needs.
C2 crossover networks are compact and built with premium component parts, including Mylar® capacitors and segmented air-core inductors. Three levels of tweeter attenuation are provided, as well as a tweeter protector.
Woofer grilles are included, each consisting of a black grille tray with satin silver accents and a black steel mesh grille with an electroformed JL Audio logo.
Sonic character: Clean and Dynamic
Sold as a pair.
| Continuous Power Handling (RMS) | 60 W |
| Recommended Amplifier Power (RMS) | 15 - 100 W / Ch. |
| System Efficiency | 91.0 dB @ 1 W / 1 m |
| System Nominal Impedance | 4 Ω |
| System Frequency Response | 59 Hz - 22 KHz ± 3 dB |
| Frame Outer Diameter* (A) | 6.5 in / 165 mm |
| Grille Tray Outer Diameter (B) | 6.84 in / 174 mm |
| Motor Outer Diameter (C) | 3.15 in / 80 mm |
| Frontal Coaxial Tweeter Protrusion (D) | N/A |
| Frontal Grille Protrusion** (E) | 0.85 in / 22 mm |
| Mounting Hole Diameter (F) | 5.56 in / 141 mm |
| Mounting Depth (G) | 2.44 in / 62 mm |
*Does not take into account mounting tabs | |
| Flush Mount Fixture Diameter (A1) | 1.87 in / 48 mm |
| Surface Mount Fixture Diameter (A2) | 1.69 in / 43 mm |
| Flush Mount Mounting Hole Diameter (B) | 1.625 in / 41 mm |
| Flush Mount Mounting Depth (C) | 0.76 in / 19 mm |
| Flush Mount Tweeter Frontal Protrusion (D1) | 0.29 in / 7 mm |
| Surface Mount Tweeter Frontal Protrusion (D2) | 0.92 in / 23 mm |
| Width (W) | 3.36 in / 85 mm |
| Height (H) | 1.44 in / 37 mm |
| Depth (D) | 4.72 in / 120 mm |
Silk Dome Tweeter
Summary:
Light, fast moving silk dome material promotes high-frequency accuracy.Â
Detailed Information:
Silk is a natural material with inherently good characteristics as a tweeter diaphragm. In addition to being very light in weight, silk exhibits excellent damping properties, which reduces ringing and resonances in the tweeter’s passband, leading to a smooth, pleasing high-frequency character free from unnatural sibilance or exaggerated brightness. Compared to a harder material dome, a silk tweeter does not exhibit as much ultra-high frequency extension, but is preferred by many audiophiles for its overall balance.
Download  C2-650 Product Manual
Â
USA Limited Warranty: Â One (1) year from the original date of purchaseWarranty Details
