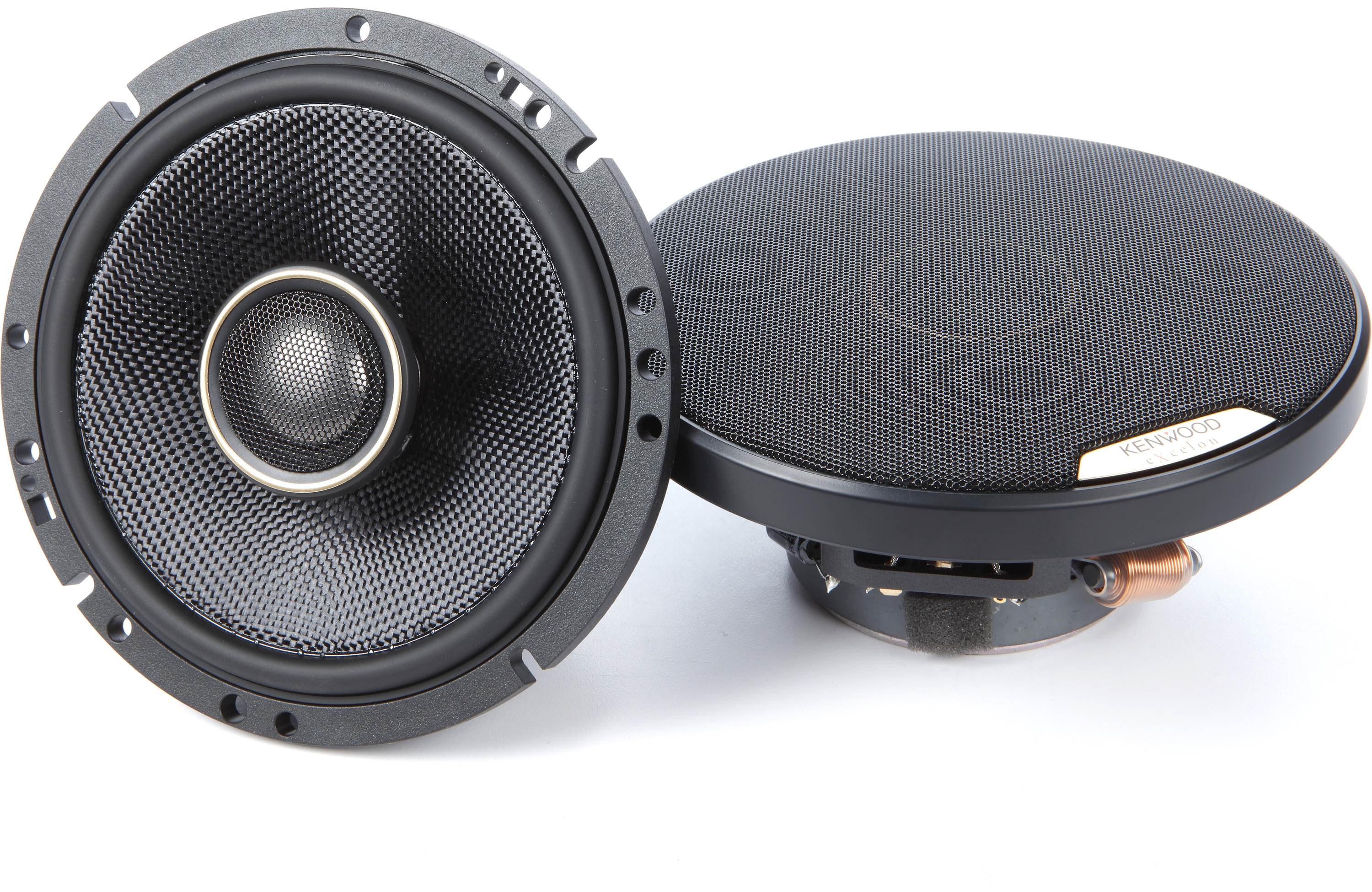

Coaxials, the Excelon way
Kenwood's Excelon badge is their standard for quality sound and excellent performance, and these Kenwood Excelon XR-1701 2-way car speakers deliver the goods. Specially crafted for playing high-resolution audio files, these speakers use premium materials and design to enhance the audio signal from a high-performance amplifier and receiver. What that means for you is a life-like listening experience, free from distortion.
Premium materials
The 6-1/2" glass-fiber woofer cone delivers full, hearty sound, and its specially designed surround ensures endurance, play after play. The hard dome titanium tweeter brings striking detail to your music, upholding the artist's intention from song to song. If you love high-res music, these tweeters reproduce frequencies up to 35,000 Hz, delivering the extended detail and strong imaging of your high-res FLAC or DSD files.
Kenwood also includes versatile mounting gear for a variety of installation of challenges.
Bring on the power
These exceptional speakers will handle up to 100 watts RMS, so you'll maximize their performance when you power them with a nice amp.
Product highlights:
- component speaker system includes 2 woofers, 2 tweeters, and 2 crossovers
- 6-1/2" glass fiber woofer with rubber surround
- 1-3/16" titanium hard dome tweeter with neodymium magnet
- includes woofer mounting brackets
- handles up to 100 watts RMS (300 watts peak power)
- frequency response: 64-35,000 Hz
- sensitivity: 87 dB
- impedance: 3 ohms
- top-mount depth: 2-3/8"
- grilles included
- warranty: 2 years
- MFR # XR-1701
- Item # 113XR1701
What's in the box:
Kenwood Excelon XR-1701 owner's manual
- Two 2-way speakers
- 2 Grilles
- 2 Grille frames
- 2 Multi-purpose adapter brackets
- Eight 1" Screws
- Eight 5/8" Screws
- 8 Speed clips
- Instruction manual
Features & specs
General | ||
---|---|---|
Speaker Size | 6 1/2 | |
Design | 2-way | |
Tweeter Design | 1-3/16" Dome | |
Impedance (Ohms) | 3 | |
Tweeter Composition | Titanium | |
Woofer Composition | Glass Fiber | |
Woofer Surround | Rubber | |
Parts Warranty | 2 Years | |
Labor Warranty | 2 Years | |
Specifications | ||
Sensitivity (1W at 1 meter) | 87 | |
Sensitivity at 2.83 volts | N/A | |
Frequency Response | 64 - 35k Hz | |
Minimum RMS Wattage | --- | |
Maximum RMS Wattage | 100 | |
Peak Power Handling (Watts) | 300 | |
Top-mount Depth (Inches) | 2 3/8 | |
Bottom-mount Depth (Inches) | 2 5/8 | |
Cutout Diameter or Length (inches) | 5 1/2 | |
Mounting Height (Inches) | 0.836 | |
Frame Width | 6.485 | |
Frame Length | 6.485 |
Product Research
Features
Custom Brackets: Using the included brackets, the Kenwood XR-1701 becomes a factory replacement speaker, compatible with several Ford, GM, Hyundai, Toyota, and Volkswagen vehicles (The brackets are multi-purpose, scored for trimming to fit several applications). Please enter your vehicle information to confirm fit.
Warranty Note: Although the information included with these speakers indicates a 1-year warranty, they are actually covered by the Kenwood eXcelon 2-year warranty.
