JL AUDIO XD-BTS

Ultra-Compact Universal Battery Connector, Positive or Negative

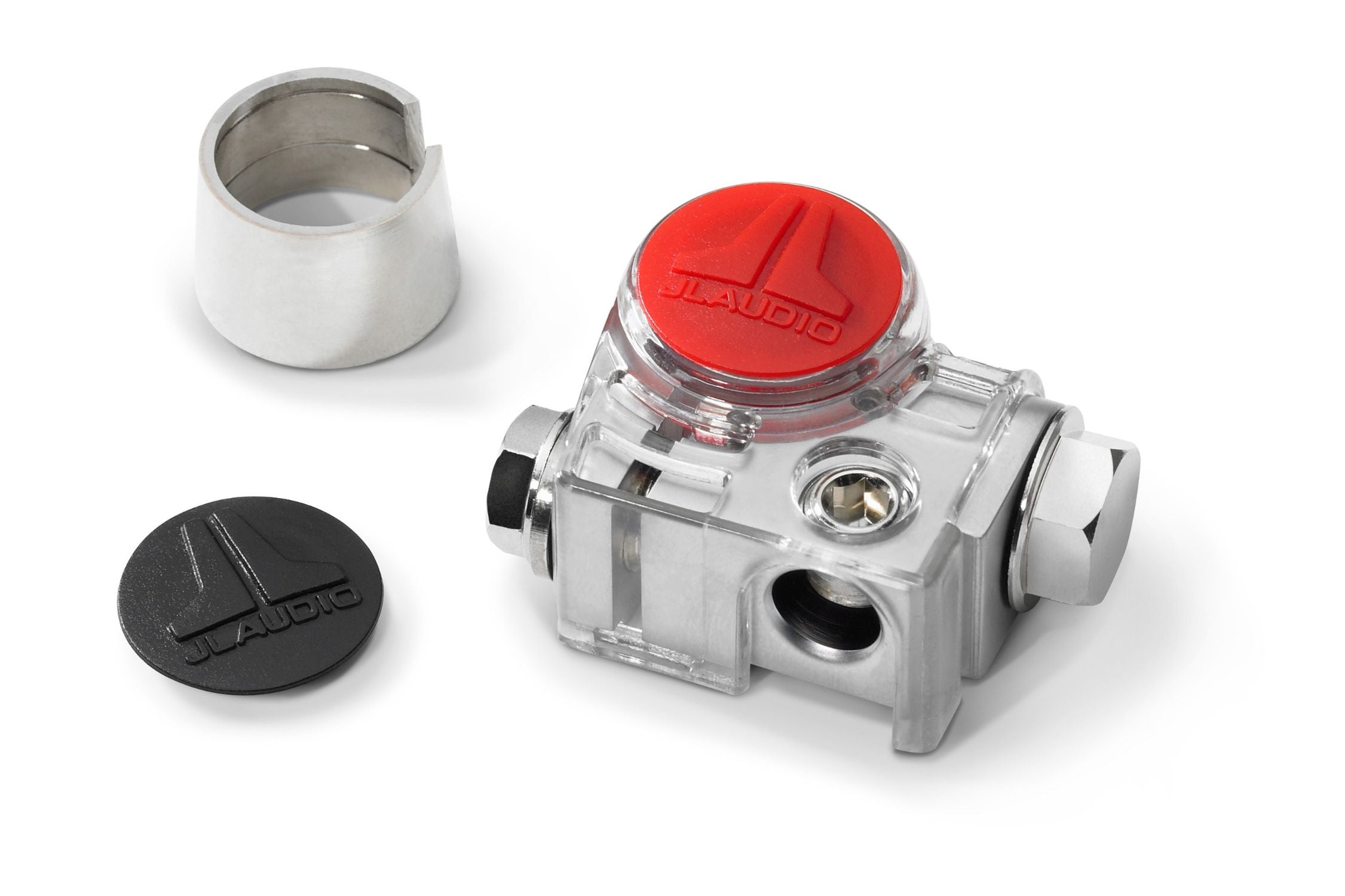

The tiny size of the XD-BTS battery connector makes it easy for tight-space installations, and ideal for smaller systems that require a single main power wire for the audio system. OmniSertâ„¢ technology ensures secure, high-integrity wire contact in the captured-wire connector for any wire from 10 AWG - 4 AWG. An additional side-mounted power ring provision allows you to connect factory harnesses or an additional power wire, if needed.

The included adaptor collar allows it to be used for negative or positive battery post connections, where the secure clamping design ensures a tight fit to the battery post. Adaptors are sold separately for side-post batteries. Red and black caps are provided so that you can easily mark your battery connection as positive or negative.

Forged and machined brass construction with marine-grade stannum plating. A high-temperature polycarbonate cover provides insulation and protection.

OmniSertâ„¢ (Patent Pending)

Summary:
This unique block terminal design results in better mechanical and electrical contact between the wire and the block.

Detailed Information:
Conventional captured wire block designs use a narrow screw that only contacts the center of the inserted wire. When tightened, the screw digs a depression into the wire and only applies full pressure in a relatively small contact patch. Additionally, when smaller wires are inserted into the block, the screw does a poor job of gripping the smaller wire, increasing the possibility of an unreliable connection.

JL Audio's patent-pending OmniSertâ„¢ technology uses a large diameter screw with a domed contact area that precisely matches the contour of the wire bore. This oversized domed surface evenly applies pressure to the wire over a larger contact area in the body of the block. The design also does an excellent job of capturing smaller wires in the block, eliminating the need for ferrules or sleeves to achieve proper mechanical integrity.



USA Limited Warranty:  Two (2) years from the original date of purchaseWarranty Details
